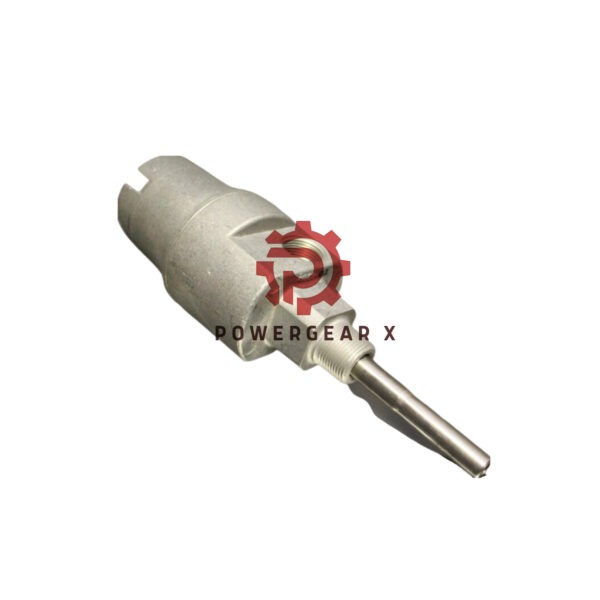

GE | Bently Nevada 21000-28-10-00-094-04-02

Overview:

The Bently Nevada 21000-28-10-00-094-04-02 Proximity Probe Housing Assembly is designed for precise monitoring of machinery health in harsh industrial environments. Made from high-quality aluminum and 304 stainless steel, it is robust and built to last. This housing assembly features threaded ports for conduit connections and an optional standoff adapter for versatile installation. It also comes with CSA approvals for hazardous area use, making it ideal for intrinsically safe applications.

Technical Specifications:

• Brand: Bently Nevada
• Model: 21000 Proximity Probe Housing Assembly
• Material: Aluminum body with 304 stainless steel sleeve
• Probe Type: Compatible with 3300 XL 8 mm probes
• Weight: 1.1 kg (2.4 lb) typical, without fittings
• Approvals: CSA Type 4, explosion-proof ratings available
• Temperature Range: Suitable for hazardous environments
• Warranty: 12 Months from the factory

Ordering Information:

When ordering the 21000-28-10-00-094-04-02 Proximity Probe Housing Assembly, you can choose from several options based on your specific needs:

• Model Number: 21000 – Proximity Probe Housing Assemblies
• Suffix Codes:
  • Probe Option: 28 – 3300 XL 8 mm probe, selectable hazardous area approvals
  • Cable Length: 10 – 1.0 m (39 in)
  • Standoff Adapter: 00 – No standoff adapter
  • Probe Penetration: -094- 9.4 in
  • Fitting Option: 04 – One 3/4-14 NPT plug
  • Mounting Thread Option: -02 – 3/4-14 NPT (Must be ordered if no standoff adapter)

Check official datasheet for more detailed information:21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
