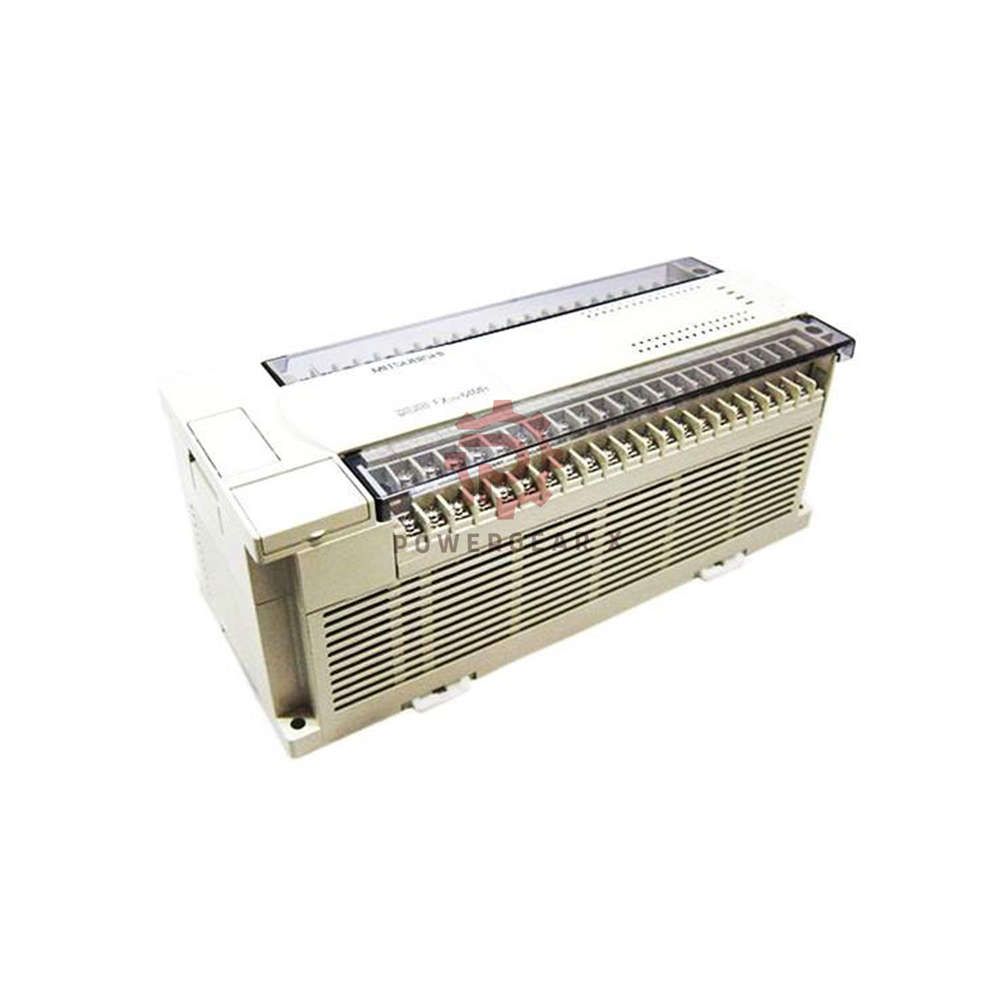

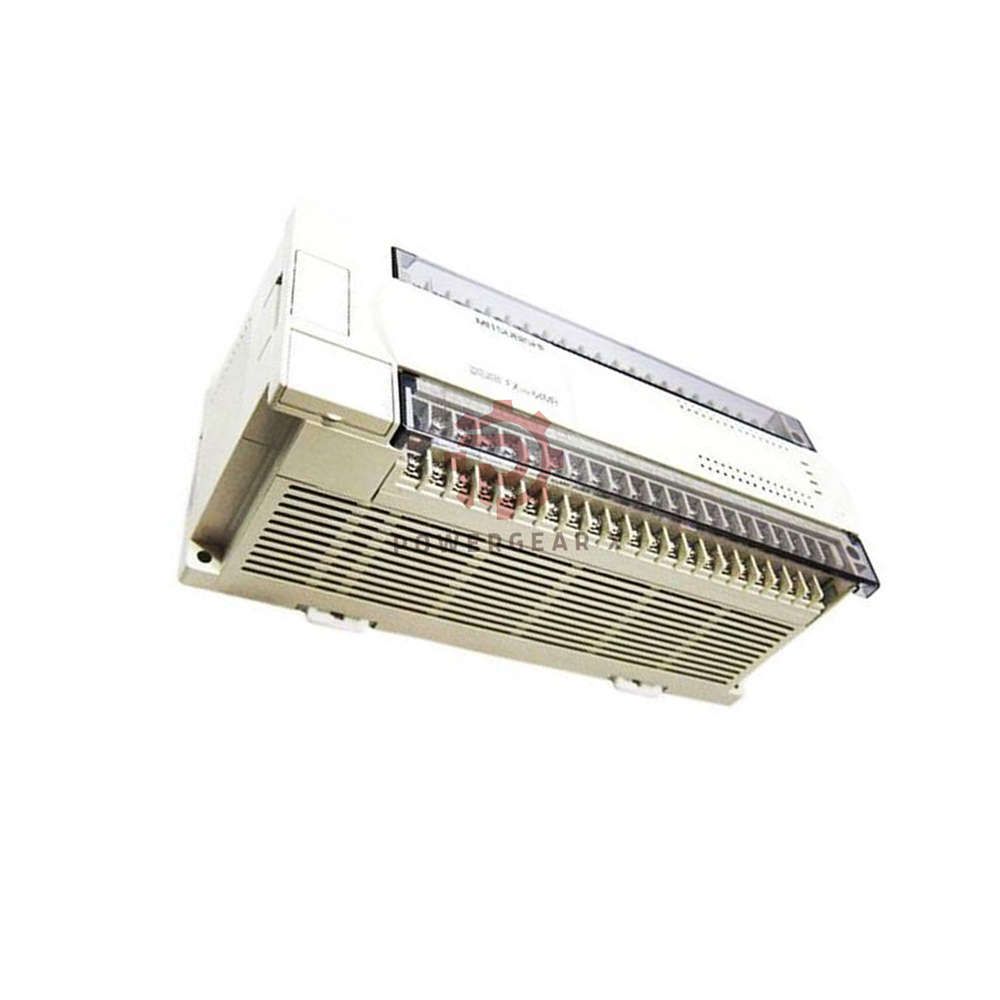

FX2N-64MT-001 Mitsubishi Programmable Controller 64K Steps Transistor Source

High-performance programmable controller with transistor outputs (source). Built-in CPU, power supply, and I/O. Fast processing and large memory for demanding automation tasks.

⚙️ Technical Specifications

• ▪ Brand & Model
  – Manufacturer: Mitsubishi Electric
  – Product No.: FX2N-64MT-001
  – Series: FX2N Series Programmable Controllers
  – Unit type: MPU – Main unit
• ▪ I/O Configuration
  – Total I/O channels: 64
  – Input points: 40 points, DC24V
  – Output points: 40 points
  – Output type: Transistor (source)
  – Max I/O with expansion: 80 points (local), up to 256 with CC-Link remote
• ▪ Power Supply
  – Voltage: AC 100–240 V, 50/60 Hz
  – Power consumption: 50 W
• ▪ Performance & Speed
  – Basic instruction: 0.065 µs/instruction
  – Application instruction: 0.642 µs/instruction
  – High-speed operation for real-time control
• ▪ Memory & Storage
  – Built-in program memory: 64,000 steps
  – EEPROM memory cartridge with program transfer function
  – Large capacity for complex programs
• ▪ Built-in Features
  – CPU, power supply, input/output integrated
  – Supports functional extension boards and special adapters
  – High precision control capability
• ▪ Physical & Environment
  – Dimensions (WxHxD): 285 x 90 x 86 mm
  – Weight: 1.20 kg
  – Operating temp: 0°C to +55°C

📝 Expert Review

The FX2N-64MT-001 delivers blazing fast execution with 0.065 µs per basic instruction. Transistor source outputs are perfect for high-speed positioning and DC load control. With 64K steps memory, it handles large programs easily. A reliable workhorse for demanding automation.

💡 Manager’s Insight

For system integrators, this unit offers exceptional value. Built-in 64 I/O points reduce external hardware costs. CC-Link remote I/O expands up to 256 points. The transistor outputs support high-frequency switching. Ideal for upgrading existing FX2N systems.

🏭 Applications & Compatible Devices

• ▪ High-speed packaging machines – fast transistor outputs for servo control
• ▪ Pick-and-place systems – precise positioning with pulse outputs
• ▪ Automated assembly lines – integrates with sensors, actuators, and HMIs
• ▪ Printing and textile machinery – high-speed counting and timing
• ▪ CNC and motion control – works with stepper drives and servos
• ▪ Expansion: FX2N series modules, CC-Link remote I/O, analog, temperature, positioning adapters

❓ Frequently Asked Questions

• Q1: What is the difference between source and sink transistor outputs?
  Source output (this model) provides positive voltage to the load. Sink output connects load to ground. Choose source for common positive systems.
• Q2: Can I use this PLC for servo positioning?
  Yes. Transistor outputs support high-speed pulse trains. You can control up to 2 axes of positioning with built-in functions.
• Q3: What programming software do I need?
  Use GX Developer or GX Works2. Connection via RS-422 programming cable (SC-09) or USB adapter.
• Q4: What is the warranty and shipping policy?
  ✔ 12-month warranty covers manufacturing defects.
  ✔ Orders ship within 12–24 hours on business days.
  ✔ Worldwide delivery via FedEx, UPS, DHL with tracking number.
• Q5: How many expansion modules can I connect?
  The base unit supports up to 8 expansion modules. With CC-Link remote I/O, total control points reach 256.

🛠️ Selection Guide & Pro Tips

• ▪ Best for: High-speed applications with DC loads. Transistor outputs handle fast switching and pulse control.
• ▪ Memory tip: 64K steps provide ample space for complex ladder logic and data tables.
• ▪ Installation tip: Use shielded cables for high-speed inputs to avoid noise interference.
• ▪ Compatibility: Works with existing FX2N analog, temperature, and positioning modules.
