Product details
Product Introduction

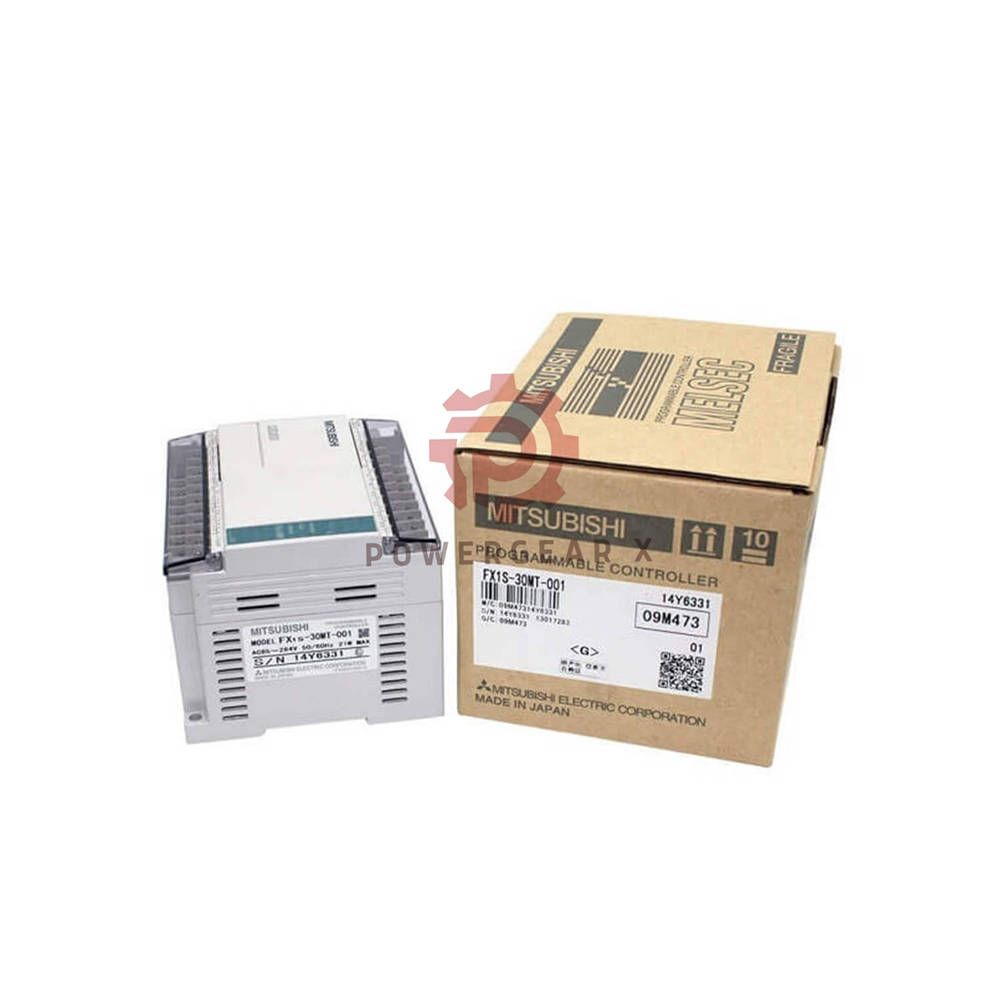

The FX1S-30MT-001 from Mitsubishi Electric is a compact PLC designed for small-scale automation. It offers powerful control in a limited I/O footprint. This unit is ideal for users who need a cost-effective solution without sacrificing performance. The transistor output model supports positioning control. It is widely used in small machinery and equipment.
Key Information at a Glance
- Product: FX1S-30MT-001 Programmable Controller
- Brand: Mitsubishi Electric
- Series: FX1S
- Type: MPU Main Unit, Transistor Output
- Total I/O: 30 points (16 inputs, 14 outputs)
- Power Supply: AC220V
- Dimensions: 100 x 75 x 90 mm
Technical Specifications
- Measurement Range: Supports up to 30 I/O channels
- Frequency Response: High-speed counter and positioning control
- Sensitivity: Transistor output for precise switching
- Linearity: Reliable signal processing with minimal deviation
- Resolution: Input filters adjustable for noise immunity
- Temperature Range: Operating: 0°C to 55°C; Storage: -20°C to 70°C
- Environmental Tolerance: Humidity 5% to 95% non-condensing
- Noise Immunity: Built-in noise filter and surge suppression
Installation Guide
- Mount on a DIN rail or use direct screw fixing
- Ensure proper grounding for stable operation
- Keep wiring away from high-voltage cables
- Provide at least 50mm clearance for ventilation
- Use M3 screws for panel installation
Commissioning & Maintenance
- Easy programming via GX Works2 or GX Developer
- Built-in diagnostic LEDs for quick troubleshooting
- Removable terminal blocks simplify wiring changes
- Firmware updates are not required for standard use
- Routine inspection of power supply and I/O modules
Compatibility
- Compatible with FX1S series expansion units
- Supports serial communication (RS-422/RS-485)
- Works with Mitsubishi HMI and VFD products
- Software compatible with Windows 7, 8, 10, 11
Certifications
- CE marked for European safety standards
- UL and cUL certified for North America
- RoHS compliant for environmental safety
Package Contents
- 1 x FX1S-30MT-001 Main Unit
- 1 x Terminal block (attached)
- 1 x Quick start guide
- Warranty card included
Warranty & Shipping
- 12-month warranty against manufacturing defects
- 12-24 hour dispatch from our warehouse
- Express shipping via FedEx, UPS, or DHL
Expert Review
The FX1S-30MT-001 delivers exceptional value for compact control tasks. Its transistor outputs enable high-speed positioning, a rare feature in this price range. The 30-point I/O is ideal for small machines needing precise motion. Maintenance is simple thanks to clear LED indicators and modular wiring. A solid choice for cost-conscious automation projects.
Manager’s Insight
This model balances performance and affordability perfectly. It fits well in OEM applications where space and budget are tight. The fast shipping and global support make it a reliable partner for production lines. We recommend it for customers seeking a durable, entry-level PLC with advanced capabilities.
Applications & Suitable Equipment
- Small conveyor systems
- Packaging machines
- Textile equipment
- Automated assembly jigs
- Positioning tables and stepper motor control
- Lighting control and small HVAC systems
Frequently Asked Questions (FAQ)
- What is the power supply requirement?
It requires AC220V input. Do not connect DC power to the main terminals. - Can I expand I/O points?
Yes, you can add FX1S series expansion modules up to the total system limit. - Which software do I need for programming?
Use GX Works2 or GX Developer. Both are compatible with this model. - Is the output suitable for servo control?
The transistor output supports high-speed pulses, ideal for stepper or servo drives. - What is the typical lifespan?
With proper installation, the unit operates reliably for 5-8 years in normal conditions. - How to choose between transistor and relay output?
Choose transistor for fast switching and positioning. Choose relay for simple on/off control with higher current loads. - Can I use this in a humid environment?
Yes, it works in 5-95% humidity without condensation. Avoid direct water contact.
Selection Guide
- For high-speed positioning: select transistor output models like this one.
- For simple on/off control: consider relay output variants.
- Check total I/O count: 30 points suit small to medium machines.
- Verify communication needs: serial port supports most field devices.
- Confirm software version: GX Works2 supports full functionality.
