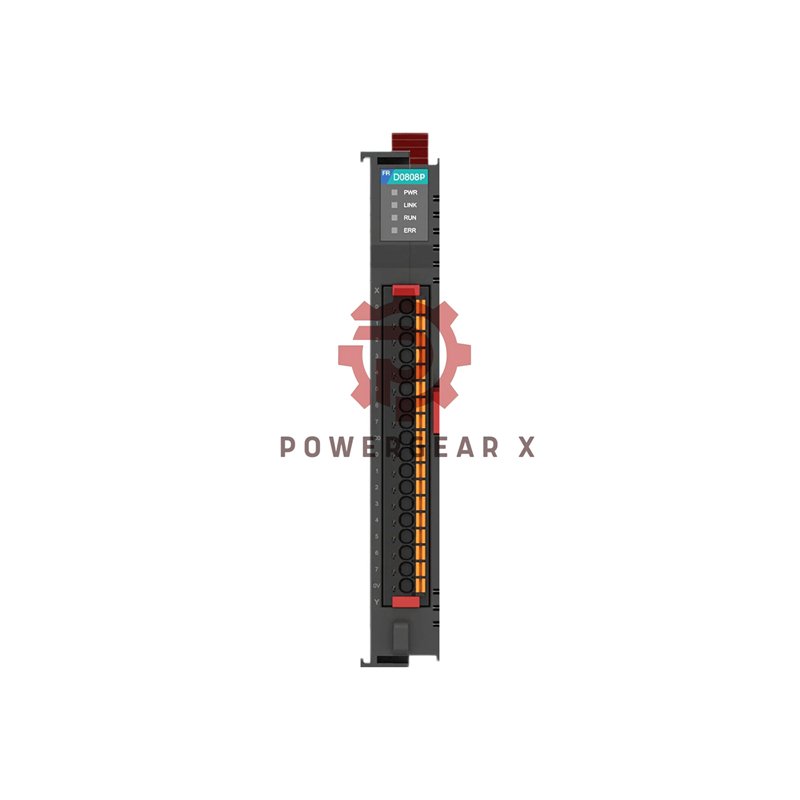

Flexem FR-D0808P Mixed Digital Module
Powergear X Automation brings the FR-D0808P, a slim mixed I/O card with quick input and strong output power.
Module Highlights
- Eight mixed inputs accept NPN and PNP signals with clean sensing.
- Eight PNP outputs drive 24V loads with stable current.
- The module uses a thin 18mm body for tight panels.
- Fast response fits light motion and machine needs.
- LEDs give fast check for each point.
Technical Data
- Model: FR-D0808P; Author: Powergear X Automation.
- Input: 8 points, 24VDC, 0–28.8V range, 7mA draw.
- Output: 8 PNP points, 24VDC rated.
- Output current: 0.5A per point; grouped load follows 0.5A × group size.
- Input range (stable mode): 19.2–28.8V.
- Housing: 111 × 18 × 76 mm for compact space use.
- Weight: 65g for light install.
- Terminals keep tight contact for steady signals.
- Low heat improves long run reliability.
- Works well with Flexem PLC control units.
Extra Selling Points
- Inputs support many field sensors such as limit switches and small detectors.
- Outputs push small relays, lamps, or simple actuators with smooth drive.
- Quick mount saves wiring time in tight cabinets.
- Stable design lowers risk of false signals.
- Good for compact machines that need mixed signals.
Packing List
- One Flexem FR-D0808P module.
- One short install guide.
- One accessory pack with clamps and screws.
Shipping & Warranty
FAQ
- How do I match sensors to the inputs?
Use 24V sensors and check if they send NPN or PNP signals before wiring. - Can the outputs run coils?
Yes, but keep the load under 0.5A and add a diode for coil protection. - How do I avoid noise in the input lines?
Keep sensor cables short and route them away from high-power wires. - Does heat affect the module?
Leave some airflow and avoid mounting next to heaters or drives. - How do I check a signal quickly?
Use the point LED; it lights when the input or output becomes active.
