Product details
Overview

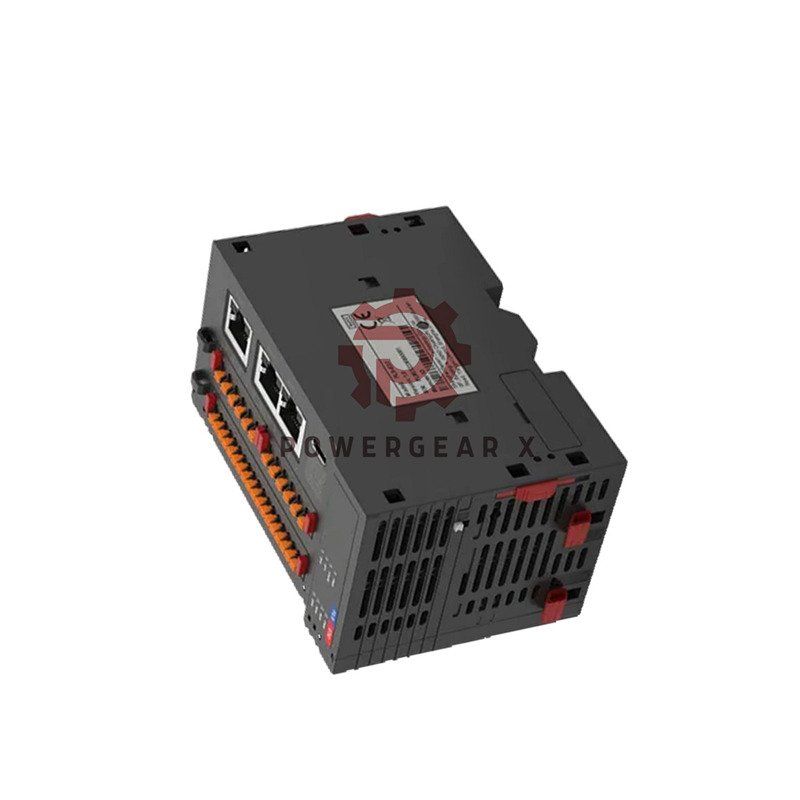

The FL8-E32-D motion PLC delivers fast control, clean wiring, and stable EtherCAT performance for industrial machines.
Key Features
- The 4-core 1GHz CPU runs motion tasks with quick response.
- Memory includes 2GB RAM and 8GB flash for programs and logs.
- EtherCAT manages 32 axes with smooth sync and stable timing.
- Built-in I/O offers 8 digital inputs and 8 NPN outputs.
Technical Specifications
- Brand: Powergear X Automation; Model: FL8-E32-D; Series: FL8.
- CPU: 4-core 1GHz for motion and logic control.
- Storage: 2GB memory + 8GB disk for user data.
- EtherCAT: 1 master port; up to 72 slaves; 32-axis control.
- Pulse: 6 outputs at 200KHz; 7 inputs at 200KHz.
- I/O: 8 inputs (NPN/PNP) and 8 NPN outputs.
- Ports: 2 Ethernet, 2 RS485, 1 CAN.
- Program space: 32MB; User data: 128MB.
- Data map: I 128KB / Q 128KB / M 512KB / Retain 800KB.
- Interface: Type-C port for download and storage.
- Expansion: WiFi, 4G Cat1, or serial module on left side.
- Protocols: EtherCAT, Modbus-TCP, Modbus-RTU, CANopen, OPC UA.
- Power: DC24V ±20%.
Installation Guide
- Mount the module on a DIN rail for stable support.
- Feed DC24V and ensure clean grounding.
- Use shielded cables for RS485 and encoder wiring.
- Add WiFi or 4G modules when remote access is needed.
Packing List
- One FL8-E32-D CPU module.
- One quick start guide.
- One Type-C cable.
- One accessory pack with terminals and screws.
Shipping & Warranty
FAQ
- How do I set EtherCAT axes?
Open the FL8 tool, assign axes, and save settings. - Can I use wireless monitoring?
Install the WiFi or 4G module and enable remote access. - How do I protect the PLC from noise?
Use shielded cables, clean grounding, and surge filters.
