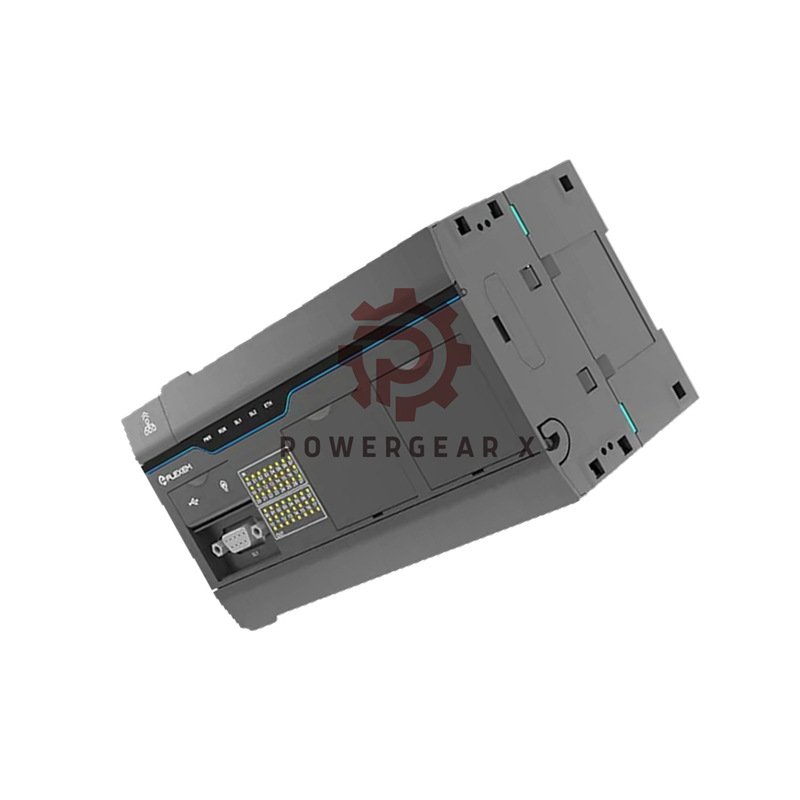

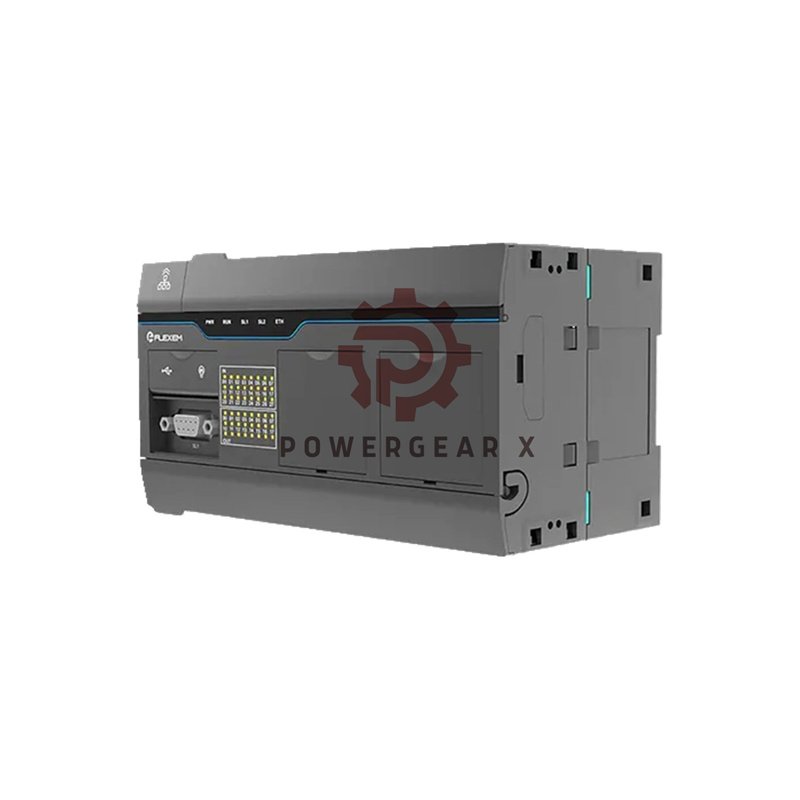

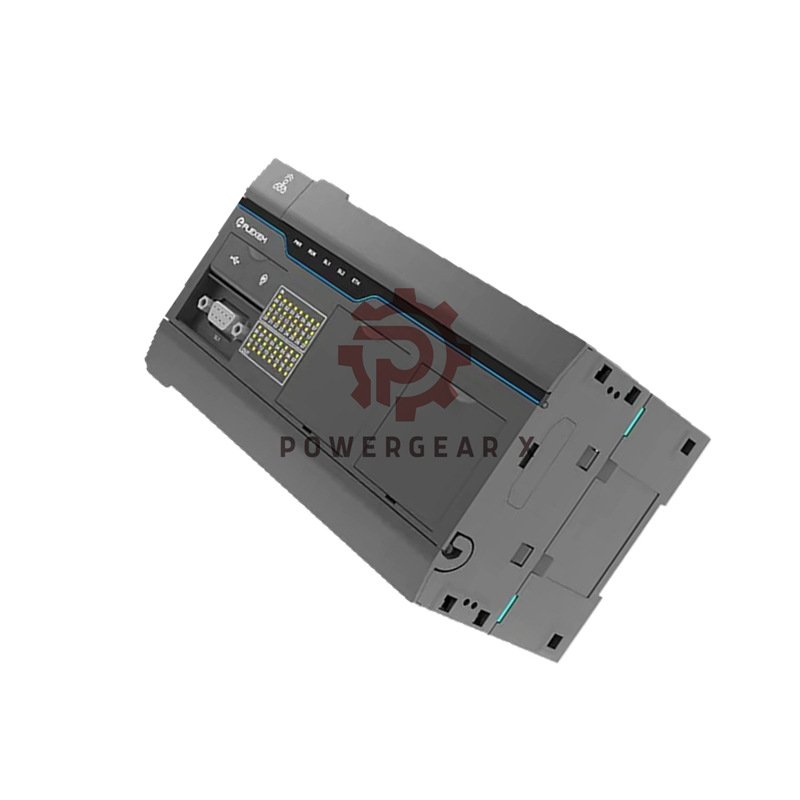

Flexem FC5-40MR-DC Programmable Controller with Relay Outputs

Flexem FC5-40MR-DC Programmable Logic Controller

The Flexem FC5-40MR-DC provides robust industrial control capabilities. This unit operates on reliable DC24V power. It features twenty-four input points and sixteen relay outputs. Powergear X Automation designed it for flexible expansion. Multiple communication ports enable easy integration.

Detailed Specifications

• Brand: Flexem | Model: FC5-40MR-DC | Category: Programmable Logic Controller
• Power Supply: DC24V with wide voltage tolerance
• Input Points: 24 points digital input
• Output Points: 16 points relay output
• Relay Contact Rating: 2A at 250V AC standard load
• Expansion Modules: Maximum 31 modules supported
• Expansion Boards: 2 boards can be installed directly
• Ethernet Port: 1×RJ45, 10/100M self-adaptive
• Serial Ports: RS232/RS485 configurable options
• Baud Rate Range: 4800 to 115200 bps adjustable
• RTC Accuracy: ±3 seconds per day with battery backup
• Battery Life: One year retention without power
• Program Capacity: 32KB for application logic
• Data Memory: 16KB for variable storage
• Operating Temperature: -10°C to 55°C range
• Storage Temperature: -25°C to 70°C limits
• Humidity Tolerance: 5% to 95% non-condensing
• Installation Method: 35mm DIN rail mounting
• Product Weight: Approximately 450 grams

Communication Features

• Ethernet port enables Modbus TCP communication
• Serial ports support Modbus RTU protocol
• USB Type-C allows fast program transfer
• DB9 connector for serial device connection
• Terminal block provides wiring convenience

Expansion Possibilities

• Connect up to 31 I/O expansion modules
• Install two expansion boards simultaneously
• Compatible with Flexem expansion series
• Flexible system configuration options

Model Code Explanation

• FC5: Basic logic control series designation
• 40: Total I/O count (24 inputs + 16 outputs)
• MR: Relay output type specification
• DC: DC24V power supply type

Setup Instructions

• Mount securely on standard 35mm DIN rail
• Connect DC24V power within specified range
• Use appropriate wire sizes for all connections
• Ensure proper ventilation around the unit
• Follow electrical safety standards strictly

Package Contents

• 1 x Flexem FC5-40MR-DC main unit
• 1 x Comprehensive user manual
• 1 x DIN rail mounting kit
• All required installation accessories
• Shipping options: FedEx, UPS, DHL available
• 12-month manufacturer warranty coverage

Professional Questions Answered

• What power source does this PLC need?
• It requires DC24V power supply for operation.
• How many expansion boards can I install?
• You can add two expansion boards simultaneously.
• What is the RTC backup duration?
• The clock retains time for one year without power.
• Can I connect this to existing networks?
• Yes, the Ethernet port enables network integration.
• What relay load capacity does it have?
• Relays handle 2A at 250V AC standard loads.
