Product details
Product Brief

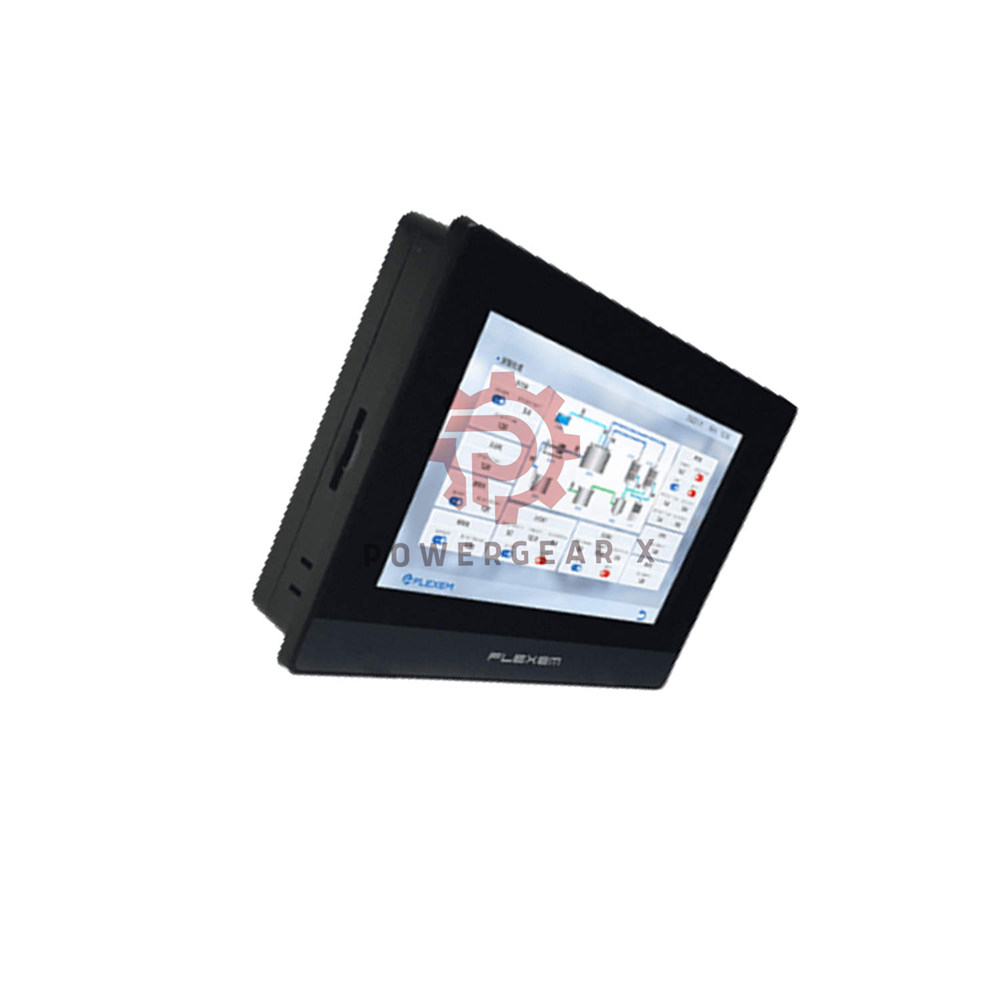

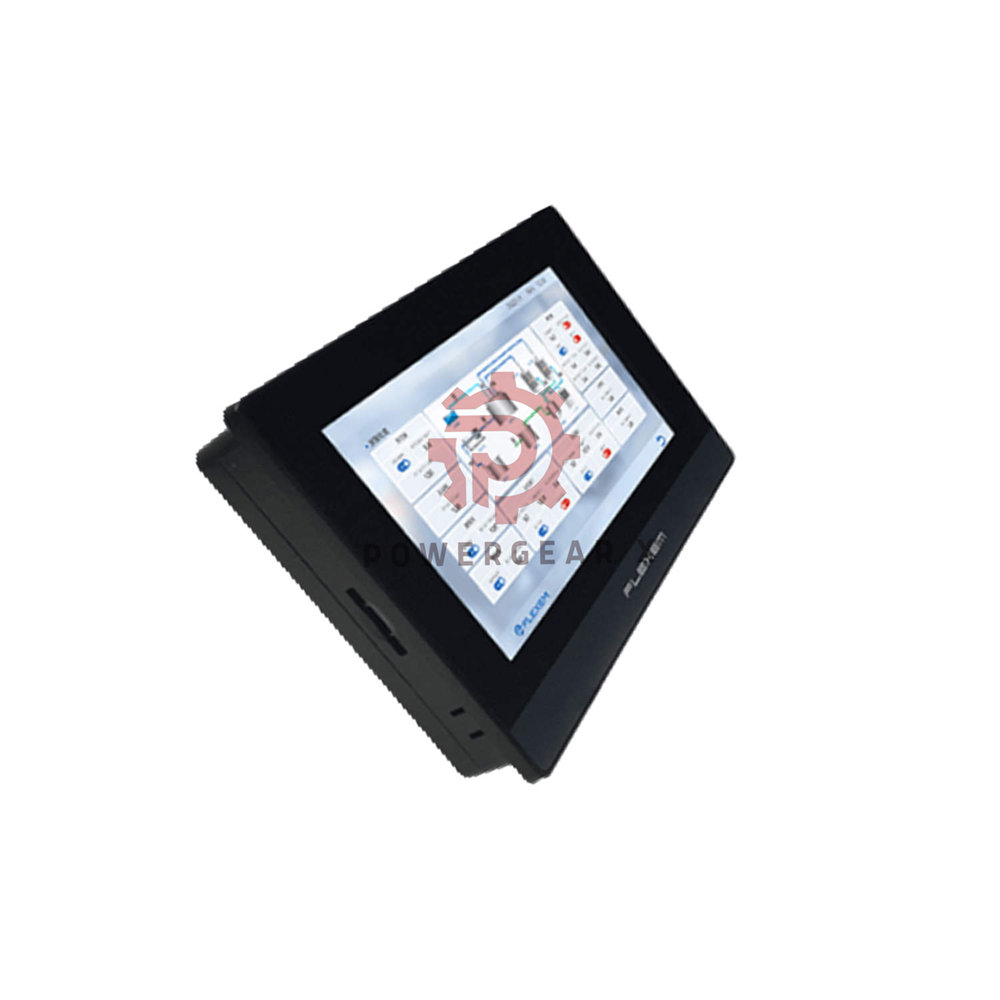

- FE7070IP – waterproof IoT HMI from Flexem
- Powerful ARM CPU with multilayer silicone seals
- Robust touchscreen for demanding applications
- 7″ 16:9 TFT, 800×480 resolution, 16‑bit color
- Brightness 350 cd/m² for excellent readability
- 4‑wire industrial resistive touch, IP65 front protection
- Engineering plastic enclosure, lightweight 500g
Technical Specifications
- Brand & model
- Brand: Flexem
- Model: FE7070IP
- Series: Waterproof IoT HMI
- Type: Industrial touch panel
- Display
- Size: 7 inch 16:9 TFT LCD
- Resolution: 800 × 480 pixels
- Colors: 16‑bit
- Brightness: 350 cd/m²
- Viewing angles T/B/L/R: 50°/70°/70°/70°
- Touch & input
- Touch type: 4‑wire industrial resistive
- Waterproof front panel with silicone seals
- Glove‑friendly operation
- Processor & memory
- CPU: 1 GHz ARM Cortex‑A7
- Storage: 128 MB DDR3 + 128 MB Flash
- RTC: Built‑in real‑time clock
- Connectivity
- Serial port COM1: RS485
- USB host: 1 × USB 2.0 Type‑A
- USB slave: 1 × USB Type‑C for programming
- Ethernet: Not available
- Power & protection
- Rated voltage: DC 24 V (working range DC 9 V~28 V)
- Rated power: <10 W
- Power interruption tolerance: <5 ms
- Protection: Lightning surge protection
- Environmental
- Operating temperature: 0~50 °C
- Storage temperature: -20~60 °C
- Humidity: 10~90% RH non‑condensing
- Vibration endurance: 10~25 Hz, 2G/30 min X/Y/Z
- UV resistance: Not allowed in high UV areas
- Protection level: Front IP65
- Mechanical
- Enclosure: Engineering plastic
- Cutout size: 192 × 138 mm (or 190 × 136 mm)
- Dimensions: 199 × 145 × 50 mm
- Weight: About 500g
- Certification
- CE, RoHS
Programming & software
- Program download via USB slave or flash drive
- Compatible with Flexem programming software
- Easy firmware updates through USB Type‑C
Installation guide
- Panel cutout: 192 × 138 mm recommended
- Front IP65 seal requires proper gasket placement
- Mounting clips included for secure fitting
- Rear access to terminals and USB ports
Package contents
- Flexem FE7070IP HMI unit ×1
- Mounting clips and gasket ×1
- Quick start guide ×1
- 12‑month warranty included
Shipping & delivery
- Express carriers: FedEx, UPS, DHL
- Tracking number provided for all orders
- Secure anti‑static packaging
Typical applications
- Compact machine control panels
- Waterproof operator interfaces
- HVAC control systems
- Packaging machinery HMIs
- Food processing equipment
FAQ – experience & selection guide
- How do I program the FE7070IP HMI?Use USB slave Type‑C connection or copy program to flash drive via USB host.
- What voltage range does this HMI accept?Wide input DC 9 V to 28 V, rated at 24 V with surge protection.
- Can I use this outdoors in rainy conditions?Yes, front IP65 protects against water jets, but avoid direct UV exposure.
- Is the 12‑month warranty transferable?Warranty covers original purchaser against manufacturing defects.
- Purchase Guide: Which Flexem model for Ethernet needed?FE7070IP has no Ethernet, choose FPad series for network connectivity.
- What if my project needs more memory?128 MB Flash suits most HMI apps; for data logging consider higher models.
- Can I connect multiple RS485 devices?Yes, COM1 supports multi‑drop RS485 network with proper termination.
- How fast is shipping with DHL or FedEx?Express delivery typically 3‑5 business days worldwide.
