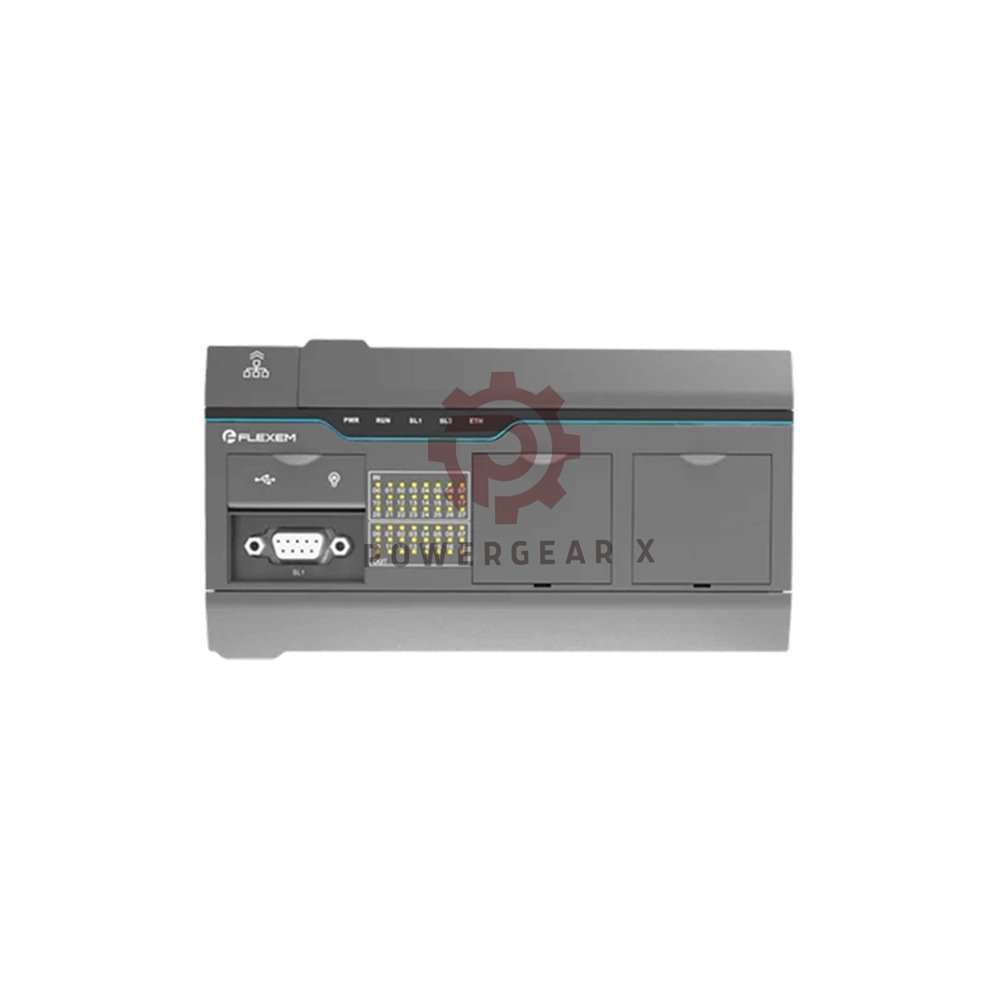

FC5M-40MN-AC Flexem PLC Controller 40 I/O High-Speed

Product Overview

• FLEXEM FC5M-40MN-AC – a high‑performance PLC from the F5 series with 40 I/O points. Runs on AC 220V and offers 24 inputs / 16 NPN outputs.
• Includes 7 high‑speed inputs (HSC) and 6 fast outputs (PTO). Handles complex motion control and high‑speed counting tasks.
• Supports IEC 61131‑3 programming (Ladder, ST). Motion follows PLCOpen standards. Built for large machine automation.

Model & Ordering Tree (Hierarchical Suffix)

• FC5M (F5 Series Advanced PLC)
  • -40 (I/O Capacity: 40 points)
    • MN (Mixed I/O, NPN Transistor Output)
      • -AC (Power Supply: AC 220V)
• Full model: FC5M-40MN-AC – 24 inputs (7 fast), 16 NPN outputs (6 fast), AC power, high‑speed motion ready.

Core Technical Data

• Power supply: AC 220V (rated), built‑in.
• Inputs (24 total – 7 fast HSC capable):
  • Type: NPN/PNP (source/sink), works with 2‑wire/3‑wire sensors.
  • Rated values: 24VDC, 7mA. ON >15V / >2.5mA ; OFF <5V / <1.0mA.
  • Filter: default 1ms, adjustable (unfiltered to 100ms, 16 levels).
  • Isolation: optocoupler, impedance 3.3kΩ.
  • Cable: max 100m shielded / 50m unshielded.
• Fast HSC inputs (7 points):
  • Max frequency: A/B phase 100kHz, pulse/direction 200kHz, single phase 200kHz.
  • Modes: A/B count, pulse/direction, single/dual phase.
  • Special cabling: shielded, max 5m (include 24V DC supply).
  • Impedance: 2.8kΩ, current 0.1A.
• Outputs (16 total – 6 fast PTO capable):
  • Type: NPN (sinking). Rated voltage 24VDC (19.2‑28.8V).
  • Current: 2A per point, 4A per common group.
  • Protection: short circuit protection, self‑recovery every 10ms.
  • Switching speed (normal): ON <34μs, OFF <250μs, max 1kHz.
  • Clamping: 39V±1V for inductive loads.
  • Cable (normal): unshielded up to 50m.
• Fast PTO outputs (6 points):
  • Max frequency: 200kHz (PTO), 50kHz (PWM).
  • Output current (high‑speed mode): 0.1A (normal output mode 0.5A).
  • Duty cycle: 0%‑100%, resolution <0.5%.
  • Mode: pulse + direction output.
  • Special cabling: shielded, max 5m (include 24V DC).
  • Reverse protection: yes on PTO power.
• Communication: (Base model includes serial ports; check variant for Ethernet).
• Programming: Ladder, ST (IEC 61131‑3).
• RTC: Built‑in real‑time clock.

Environmental & Immunity

• Temperature: operate -10°C to 60°C, store -20°C to 70°C.
• Humidity: 55%‑95% RH, no condensation.
• Protection: IP20, conformal coating (≥20μm, reinforced ≥40μm).
• Altitude: operate ≤3000m, transport ≤6000m.
• Vibration: 5‑13.2Hz/7mm, 13‑100Hz/2G (3 axes).
• Shock: 15G/11ms half‑sine, 6 times/axis.
• Pollution degree: 2 (IEC 60664).

Quick Installation Guide

• Mount on 35mm DIN rail. Keep 60mm clearance for cooling.
• AC power: connect to L/N terminals. Keep HV separate from DC I/O.
• For HSC/PTO: use shielded cable ≤5m, include 24V DC for sensors.
• NPN outputs sink current – connect load between +24V and output.
• Removable terminal blocks for easy wiring.

Diagnostics & Maintenance

• LED indicators: power, RUN/ERR, I/O status per point.
• Monitor via programming software (USB/serial).
• Firmware upgrade over USB – no wiring disturbance.
• No routine calibration. Keep clean and dry.

Compatibility & Certifications

• Fully compatible with F5 series expansion modules (analog, temperature, I/O).
• Supports Modbus RTU (serial) – check variant for Ethernet.
• Certified: CE, RoHS. Meets EN/IEC standards for emissions/immunity.

Package & Warranty

• Includes: FC5M-40MN-AC unit, mating connectors, quick guide.
• Warranty: 12 months against defects. Extended options available.

Professional FAQ (Experience-based & Selection Guide)

• I need 16 outputs but only 6 are fast – can the other 10 handle small motors?
  Yes. The 10 standard outputs handle up to 2A each – suitable for contactors, small motors or indicators. The 6 fast outputs are for precise pulse control.
• What is the benefit of 24 inputs on this model?
  You can connect many sensors (proximity, limit, encoders) without extra modules. 7 of them handle high‑speed counting up to 200kHz.
• Can I mix fast and standard wiring in one machine?
  Absolutely. Keep fast I/O wiring short (<5m) and shielded. Standard I/O can run longer (up to 100m) with unshielded cable.
• Which shipping carriers do you use for international orders?
  We ship worldwide via FedEx, UPS, DHL. All services include tracking. Contact us for bulk shipping discounts.
• How do I choose between FC5M-40MN-AC and smaller 30MN or 20MN models?
  Choose the 40MN if your machine needs more than 30 I/O points. It gives you extra capacity (24 inputs / 16 outputs) in one unit – saves cost on expansion modules.

Typical Applications

• Packaging lines – high‑speed counting and output control.
• CNC routers – pulse/direction control up to 200kHz.
• Assembly machines – 24 sensors, 16 actuators.
• Labeling systems – fast encoder feedback.
• Retrofit projects – replace relay panels with compact PLC.

Contact & Inquiries

• Sales: sales@powergearx.com
• WhatsApp: +86 18030005825 (click to chat)
• For technical support, include your model number and order details.
