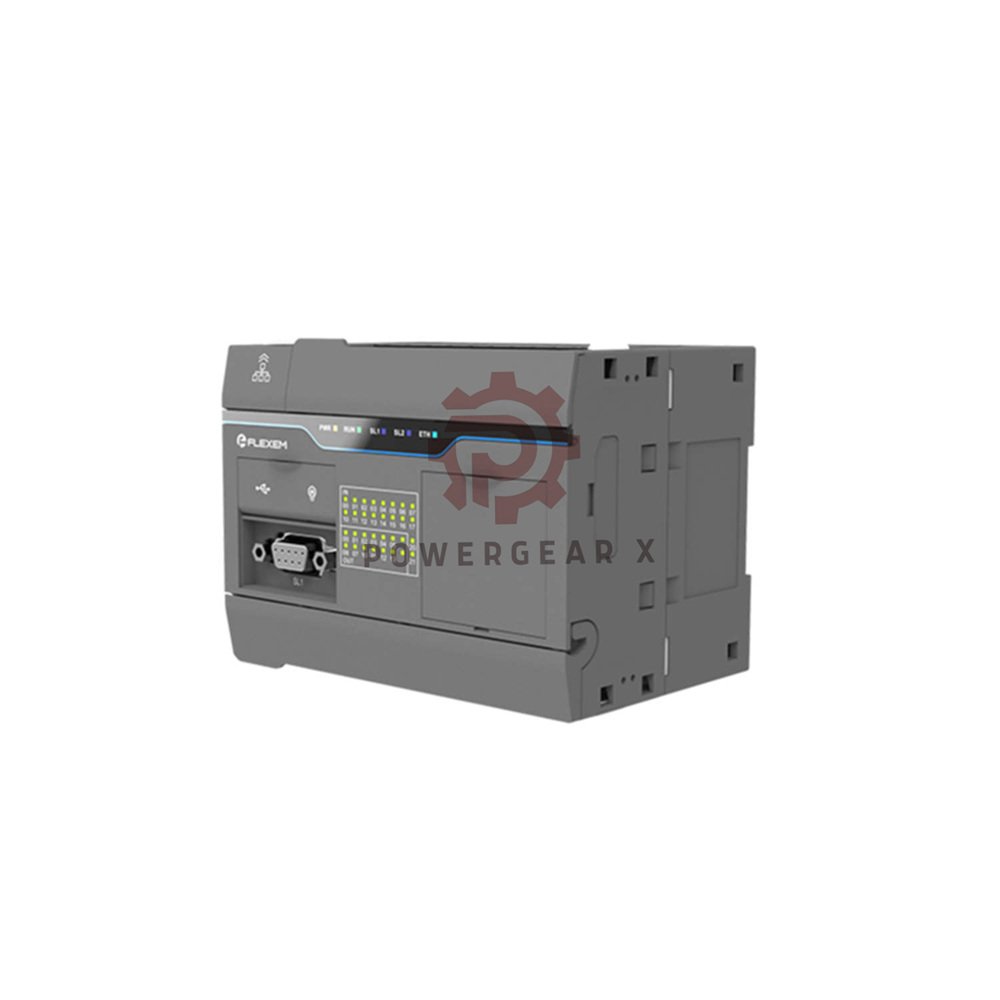

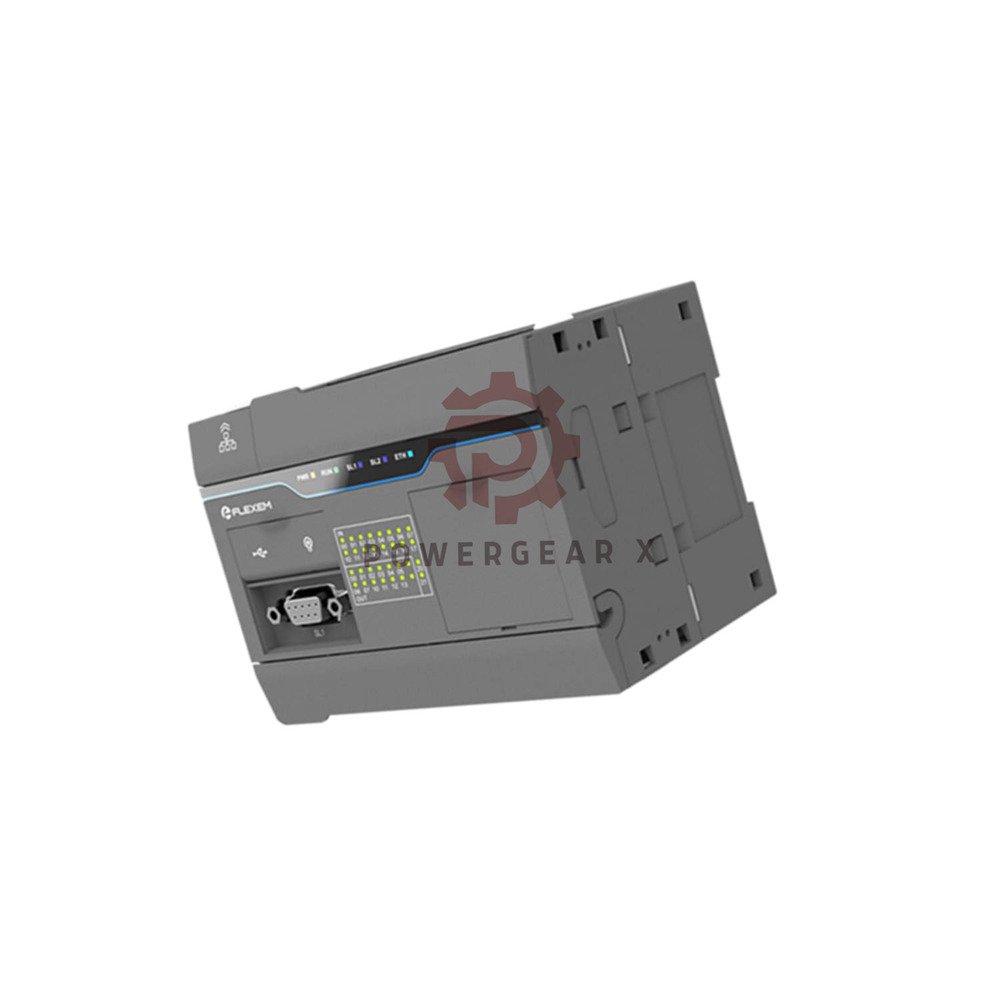

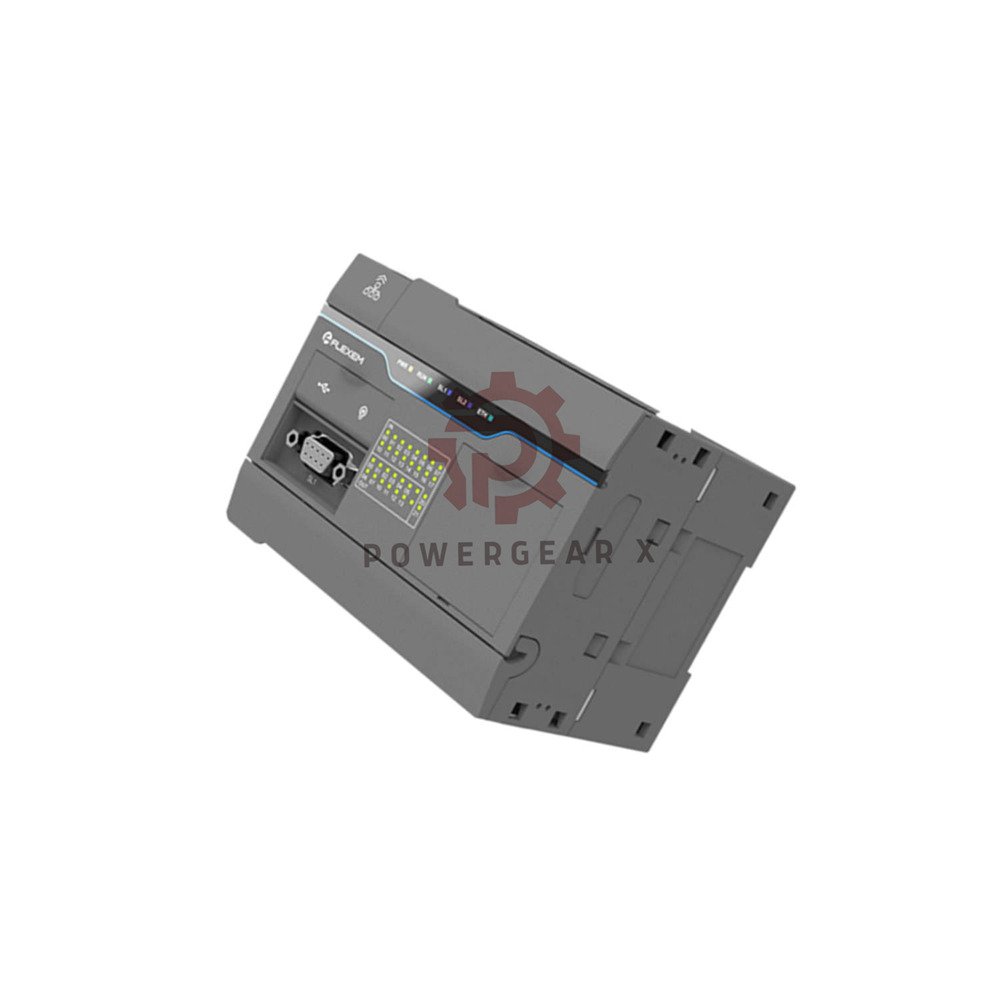

FC5M-30MN-AC Flexem Programmable Logic Controller 18 Inputs 12 Outputs

Product Overview

• Flexem FC5M-30MN-AC – a powerful PLC from the F5 series with 30 I/O points. Runs on AC 220V and offers 18 inputs / 12 NPN outputs.
• Includes 7 high‑speed inputs (HSC) and 6 fast outputs (PTO). Ideal for motion control and high‑speed counting.
• Supports IEC 61131‑3 programming (Ladder, ST). Motion follows PLCOpen standards.

Model & Ordering Tree (Hierarchical Suffix)

• FC5M (F5 Series Advanced PLC)
  • -30 (I/O Capacity: 30 points)
    • MN (Mixed I/O, NPN Transistor Output)
      • -AC (Power Supply: AC 220V)
• Full model: FC5M-30MN-AC – 18 inputs (7 fast), 12 NPN outputs (6 fast), AC power, high‑speed motion ready.

Core Technical Data

• Power supply: AC 220V (rated), built‑in.
• Inputs (18 total – 7 fast HSC capable):
  • Type: NPN/PNP (source/sink), works with 2‑wire/3‑wire sensors.
  • Rated values: 24VDC, 7mA. ON >15V / >2.5mA ; OFF <5V / <1.0mA.
  • Filter: default 1ms, adjustable (unfiltered to 100ms, 16 levels).
  • Isolation: optocoupler, impedance 3.3kΩ.
  • Cable: max 100m shielded / 50m unshielded.
• Fast HSC inputs (7 points):
  • Max frequency: A/B phase 100kHz, pulse/direction 200kHz, single phase 200kHz.
  • Modes: A/B count, pulse/direction, single/dual phase.
  • Special cabling: shielded, max 5m (include 24V DC supply).
  • Impedance: 2.8kΩ, current 0.1A.
• Outputs (12 total – 6 fast PTO capable):
  • Type: NPN (sinking). Rated voltage 24VDC (19.2‑28.8V).
  • Current: 2A per point, 4A per common group.
  • Protection: short circuit protection, self‑recovery every 10ms.
  • Switching speed (normal): ON <34μs, OFF <250μs, max 1kHz.
  • Clamping: 39V±1V for inductive loads.
  • Cable (normal): unshielded up to 50m.
• Fast PTO outputs (6 points):
  • Max frequency: 200kHz (PTO), 50kHz (PWM).
  • Output current (high‑speed mode): 0.1A (normal output mode 0.5A).
  • Duty cycle: 0%‑100%, resolution <0.5%.
  • Mode: pulse + direction output.
  • Special cabling: shielded, max 5m (include 24V DC).
  • Reverse protection: yes on PTO power.
• Communication: (Base model includes serial ports; check variant for Ethernet).
• Programming: Ladder, ST (IEC 61131‑3).
• RTC: Built‑in real‑time clock.

Environmental & Immunity

• Temperature: operate -10°C to 60°C, store -20°C to 70°C.
• Humidity: 55%‑95% RH, no condensation.
• Protection: IP20, conformal coating (≥20μm, reinforced ≥40μm).
• Altitude: operate ≤3000m, transport ≤6000m.
• Vibration: 5‑13.2Hz/7mm, 13‑100Hz/2G (3 axes).
• Shock: 15G/11ms half‑sine, 6 times/axis.
• Pollution degree: 2 (IEC 60664).

Quick Installation Guide

• Mount on 35mm DIN rail. Keep 60mm clearance for cooling.
• AC power: connect to L/N terminals. Keep HV separate from DC I/O.
• For HSC/PTO: use shielded cable ≤5m, include 24V DC for sensors.
• NPN outputs sink current – connect load between +24V and output.
• Removable terminal blocks for easy wiring.

Diagnostics & Maintenance

• LED indicators: power, RUN/ERR, I/O status per point.
• Monitor via programming software (USB/serial).
• Firmware upgrade over USB – no wiring disturbance.
• No routine calibration. Keep clean and dry.

Compatibility & Certifications

• Fully compatible with F5 series expansion modules (analog, temperature, I/O).
• Supports Modbus RTU (serial) – check variant for Ethernet.
• Certified: CE, RoHS. Meets EN/IEC standards for emissions/immunity.

Package & Warranty

• Includes: FC5M-30MN-AC unit, mating connectors, quick guide.
• Warranty: 12 months against defects. Extended options available.

Professional FAQ (Experience-based & Selection Guide)

• I need 12 outputs but only 6 are fast – can I use the other 6 for simple relays?
  Yes. The 6 fast outputs can also work as normal outputs (0.5A). The other 6 standard outputs handle up to 2A each – great for contactors or small motors.
• What is the real advantage of 7 fast inputs on this model?
  You can connect encoders or high‑speed sensors for precise position counting (up to 200kHz) while still having 11 standard inputs for limit switches or push buttons.
• Can I mix fast and standard wiring in one machine?
  Absolutely. Just follow the cable rules: keep fast I/O wiring short (<5m) and shielded, while standard I/O can run longer unshielded.
• Which shipping carriers do you use for international orders?
  We ship worldwide via FedEx, UPS, DHL. All services are trackable and fast. Contact us for bulk discounts.
• How do I choose between FC5M-30MN-AC (30 I/O) and the 20‑point version?
  Choose the 30MN if you need more sensors (18 inputs) or more actuators (12 outputs) in one unit. It saves cost compared to adding many expansion modules later.

Typical Applications

• Packaging lines – high‑speed counting and output control.
• CNC routers – pulse/direction control up to 200kHz.
• Assembly machines – 18 sensors, 12 actuators.
• Labeling systems – fast encoder feedback.
• Retrofit projects – replace relay panels with compact PLC.

Contact & Inquiries

• Sales: sales@powergearx.com
• WhatsApp: +86 18030005825 (click to chat)
• For technical support, include your model number and order details.
