Product details

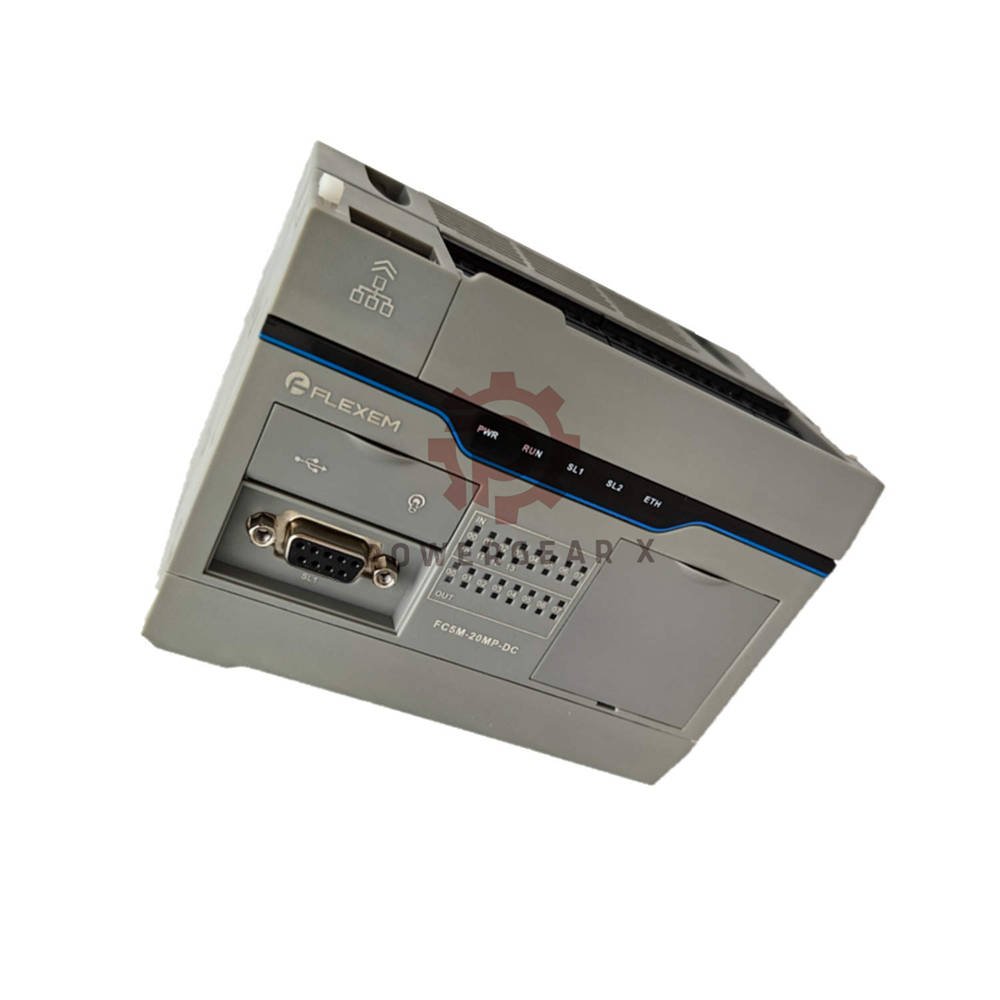

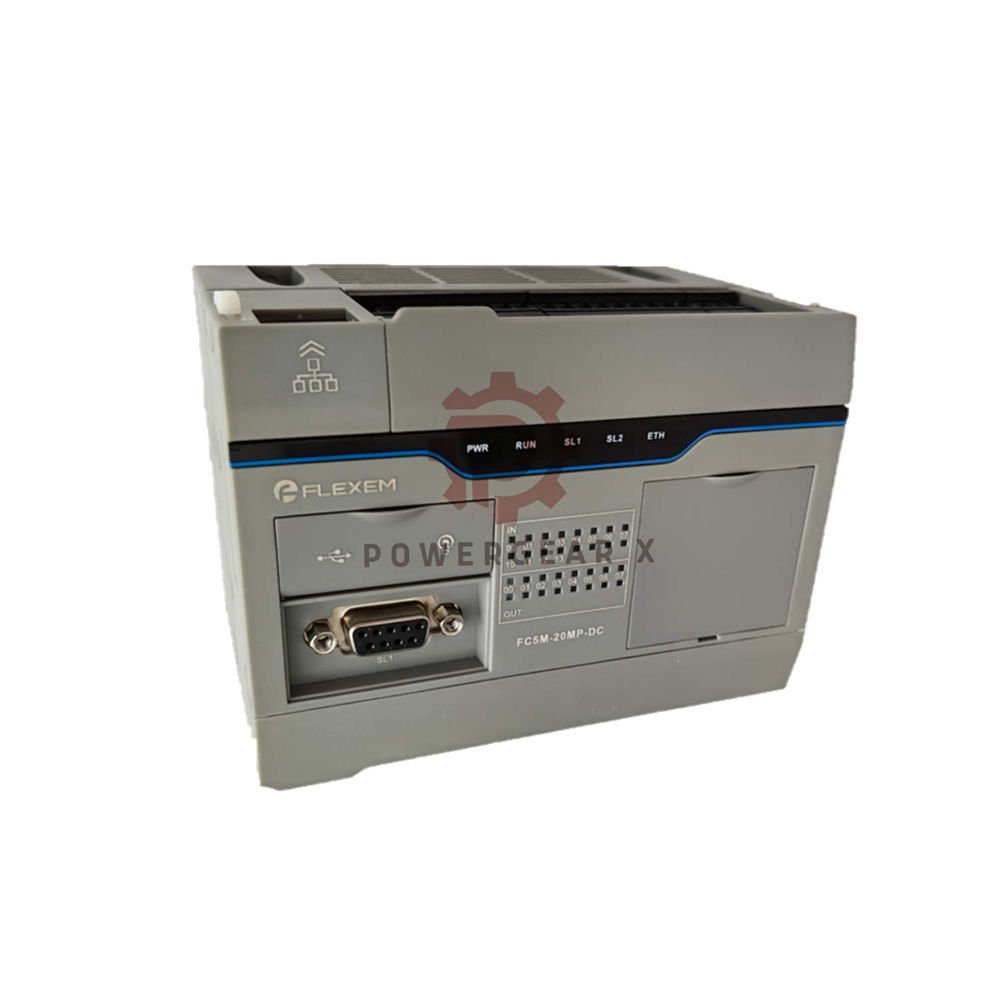

Flexem FC5-30MP-DC – Advanced PLC with 30 I/O and EtherNet/IP
- Compact programmable logic controller with 18 digital inputs and 12 high-speed transistor outputs
- Built-in EtherNet/IP port for seamless industrial network integration
- PNP transistor outputs: 5-30V DC, 2A per point, 4A per group – direct drive capability
- Wide input voltage range 0-28.8V DC supports both 2-wire and 3-wire sensors
- Brand: Flexem | Model: FC5-30MP-DC – industrial grade reliability
- Removable terminal blocks for tool-free wiring and quick replacement
Technical Specifications – Complete Performance Data
- Power supply section
- Rated voltage: 24V DC (19.2-28.8V DC operating range)
- Input current: 7mA typical per point
- Peak voltage tolerance: 30V DC (max 1 hour per day)
- Digital inputs – 18 channels
- Type: Source/Sink configurable – accepts NPN and PNP sensors
- ON state threshold: >15V, >2.5mA
- OFF state threshold: <5V, <1.0mA
- Input impedance: 3.3kΩ with optocoupler isolation
- Filter time: 0ms to 100ms (16 selectable levels, default 1ms)
- Compatibility: 2-wire and 3-wire proximity sensors
- Cable length: 100m shielded, 50m unshielded maximum
- Transistor outputs – 12 channels PNP
- Output voltage range: 5-30V DC
- Output current: 2A per point, 4A per group maximum
- Voltage drop: ≤1V DC at rated current
- Leakage current: <5μA when turned off
- Short circuit protection: Auto-recovery every 10ms
- Turn-on time: ≤34μs, Turn-off time: ≤250μs
- Maximum output frequency: 1kHz with resistive load
- Clamping voltage: ≤39V DC ±1V for inductive loads
- Isolation: 500V AC between outputs and internal logic
- Wiring and connections
- Terminal type: Removable plug-in Terminal
- Recommended cable: Unshielded up to 50m length
Environmental Ratings – Built for Industrial Environments
- Temperature range
- Operating: -10°C to 60°C
- Storage: -20°C to 70°C
- Humidity and protection
- Relative humidity: 55% to 95% non-condensing
- Protection class: IP20, Pollution degree 2 (IEC60664)
- Conformal coating: Dry film ≥20μm standard, ≥40μm reinforced option
- Altitude and mechanics
- Operating altitude: 0 to 3000m
- Transport altitude: ≤6000m
- Vibration resistance: 5-13.2Hz/7mm, 13-100Hz/2G, 20 cycles per axis
- Shock resistance: 15G/11ms half-sine, 6 times per axis
Installation Guide – Quick and Simple Setup
- Mounting
- Snap onto TS-35 DIN rail – horizontal or vertical orientation
- Allow 50mm clearance for ventilation and wiring
- Power wiring
- Connect 24V DC to power terminals – observe polarity
- Use 0.5-1.5mm² wire for reliable connection
- Input wiring
- Connect sensors to input terminals 0-17
- For NPN sensors: configure as sink mode in software
- For PNP sensors: configure as source mode
- Use shielded cable for lengths over 50m
- Output wiring
- Connect loads between output terminal and 0V DC
- Respect group current limits: max 4A per common group
- Add external fuse for additional protection if needed
- Ethernet connection
- Plug RJ45 cable into built-in Ethernet port
- Auto-negotiation 10/100 Mbps, supports EtherNet/IP and Modbus TCP
- Use shielded Ethernet cable in noisy environments
Maintenance and Diagnostics – Minimize Downtime
- Status indicators
- Green LED per I/O point shows ON/OFF status
- Power LED indicates 24V DC supply present
- Ethernet LEDs show link and activity status
- Protection features
- Output short circuit auto-recovery every 10ms – no fuse replacement needed
- Overvoltage protection up to 30V on inputs
- Software configurable input filter for noise immunity
- Maintenance tips
- Periodically check terminal screws for tightness
- Keep enclosure clean to maintain IP20 rating
- Update firmware via Ethernet port when available
Compatibility and Certifications – Connect with Confidence
- Network compatibility
- EtherNet/IP – seamless integration with Rockwell, Omron, and other scanners
- Modbus TCP – connect to Siemens, Schneider, and universal HMI/SCADA
- Sensor compatibility
- Accepts both NPN (sinking) and PNP (sourcing) sensors – field configurable
- Works with mechanical switches, proximity sensors, photoelectric sensors
- Certifications
- CE marked for European markets
- RoHS compliant – free of hazardous substances
- UL certification in process – contact for status
- Software support
- Flexem Pro programming software – free download
- Supports IEC 61131-3 languages: Ladder, FBD, ST, IL, SFC
- Library of function blocks for easy programming
Package Contents and Warranty – Everything You Need
- In the box
- 1x Flexem FC5-30MP-DC PLC with Ethernet
- 1x Quick start installation guide (multilingual)
- 1x Warranty registration card
- Removable terminal blocks pre-installed
- Warranty and support
- 12 months warranty against manufacturing defects
- Technical support via email and phone
- Free firmware updates for life
- Shipping options
- FedEx International Priority – 2-3 business days
- UPS Worldwide Express – 2-4 business days
- DHL Express Worldwide – 2-3 business days
- Tracking number provided same day shipment
Professional FAQ – Expert Answers for Smart Selection
- Q: I have both 24V DC and 12V DC sensors in my system. Can this PLC handle mixed voltages?A: Yes – inputs accept 0-28.8V DC. 12V sensors work as long as ON voltage exceeds 15V. For 12V sensors, verify they provide >2.5mA at 15V threshold.
- Q: My application requires driving small 24V DC motors (approx 1.5A each). Is the output suitable?A: Yes – each output handles 2A continuous. For inductive motors, the built-in clamping diode (≤39V) protects against back EMF. Ensure total group current ≤4A.
- Q: What is the real advantage of conformal coating for my food packaging application?A: Conformal coating (≥20μm dry film) protects against humidity, dust, and chemical vapors common in food facilities. It prevents corrosion and extends PLC life significantly.
- Q: I need to connect this PLC to an existing Siemens S7-1500 system. Will it work?A: Absolutely – use Modbus TCP protocol over the Ethernet port. Both PLCs communicate seamlessly. We provide ready-to-use function blocks for Siemens.
- Q: Which shipping method is most reliable for urgent delivery to South America?A: DHL Express offers excellent service to South America with tracking and typically 2-3 business days delivery. FedEx and UPS also available – we can match your preference.
Buying Guide – Select the Perfect PLC for Your Project
- For mixed sensor environments (NPN + PNP): FC5-30MP-DC inputs are configurable per group – no external converters needed
- For high-speed applications: Set input filter to 0ms (unfiltered) and use transistor outputs with 34μs response – ideal for fast counting
- For harsh industrial environments: Choose reinforced coating option (≥40μm) for maximum protection against chemicals and moisture
- For Ethernet-based systems: Built-in EtherNet/IP and Modbus TCP eliminate need for separate communication modules
- For global projects: CE certified, shipped worldwide via FedEx/UPS/DHL with 12-month warranty and technical support
Real-World Applications – Where FC5-30MP-DC Excels
- Packaging machinery – 18 inputs for position sensors, 12 outputs for pneumatic actuators and conveyors
- Material handling systems – Ethernet connectivity to central control room, real-time status monitoring
- Assembly line automation – mix of NPN/PNP sensors without signal conditioning
- CNC machine auxiliary control – coolant pumps, lubrication systems, safety interlocks
- Building automation – lighting control, HVAC sequencing, access systems integration
