Product details

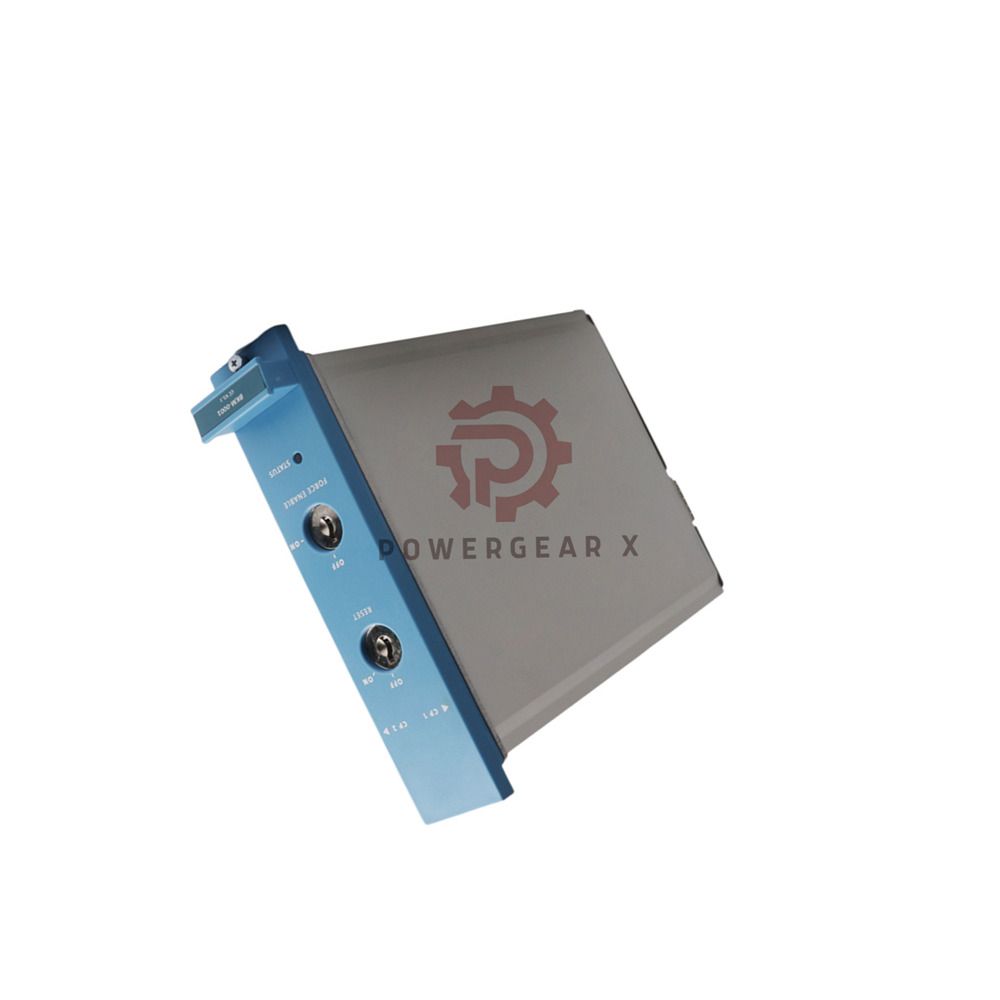

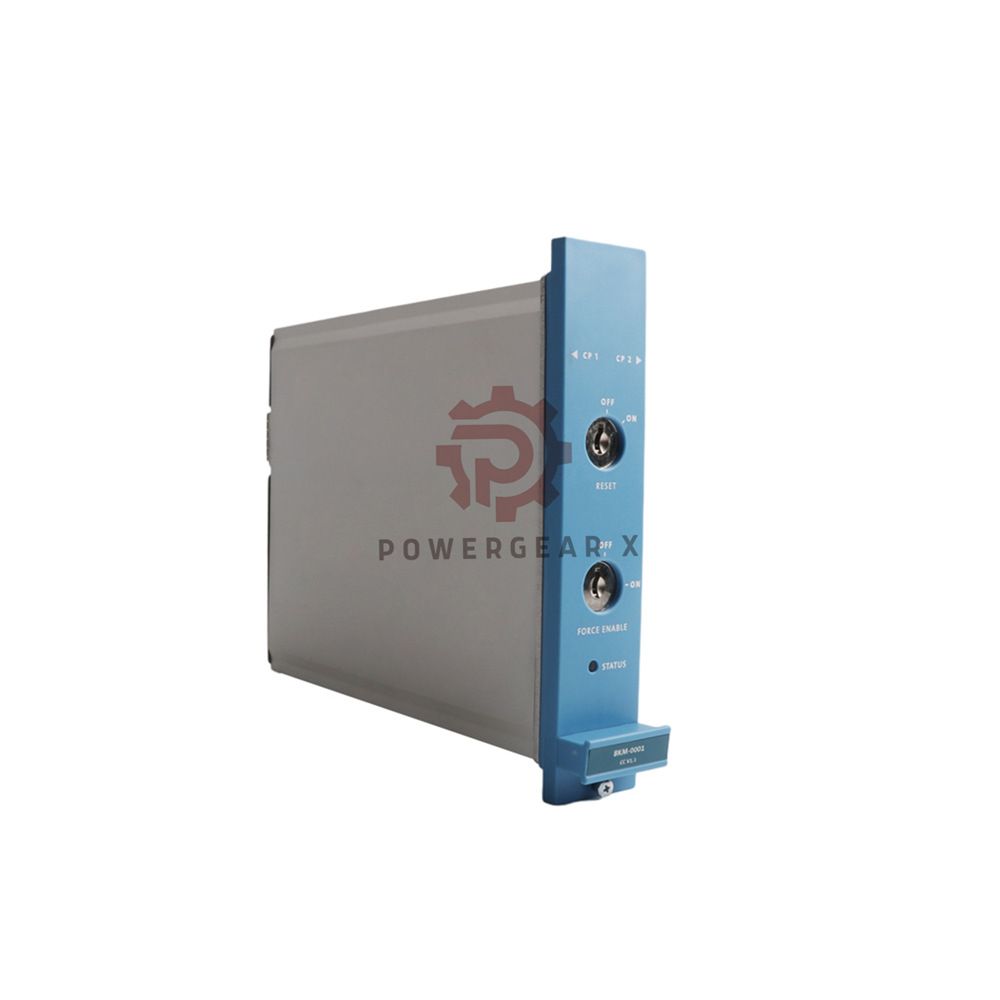

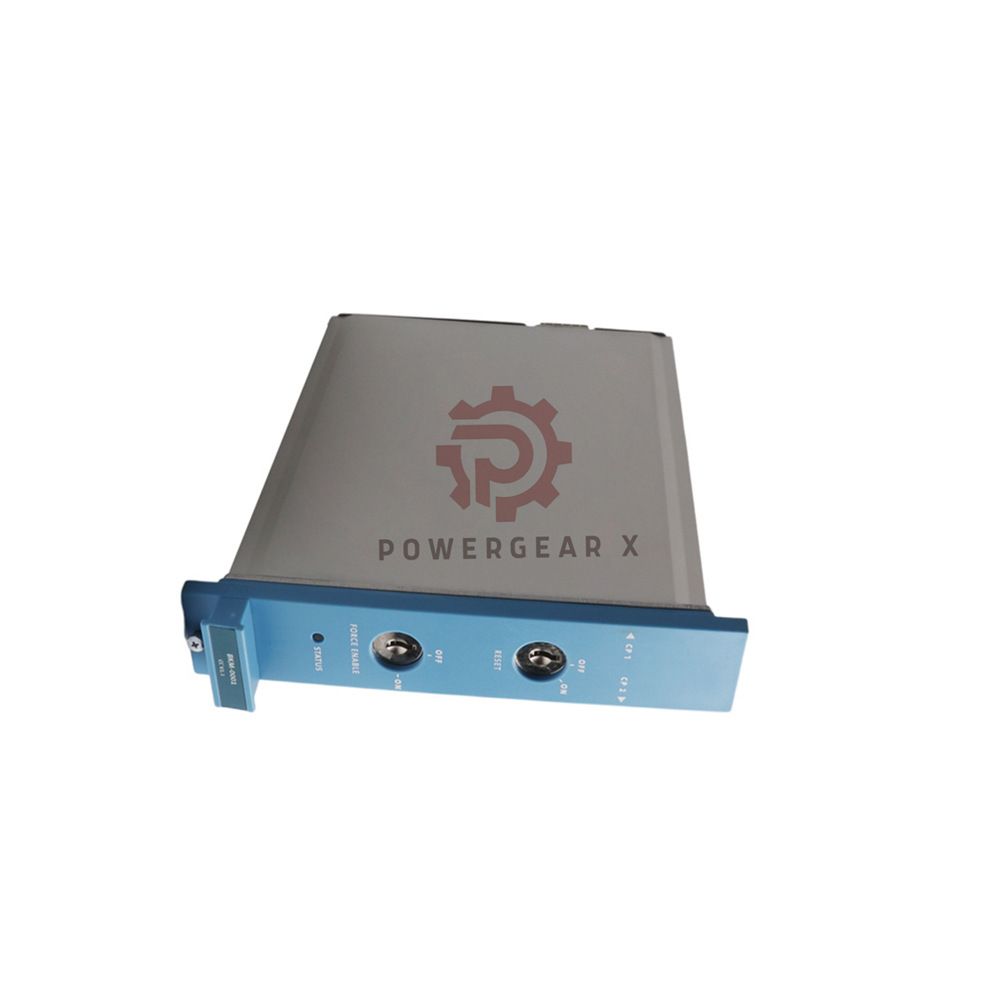

FC-BKM-0001 Battery and Key Switch Module: Reliable Power Protection
The FC-BKM-0001 module ensures uninterrupted system operation with dual battery backup. This critical component provides secure key switch controls for authorized access. It maintains system stability during power fluctuations and outages.
Technical Specifications
- Product Model: BKM-0001 Battery and Key Switch Module
- Input Voltage: 24V DC with -15% to +30% tolerance range
- Supply Current: Maximum 20mA per 24V DC input
- Battery Type: SAFT LS14500CFG lithium Thionyl Chloride
- Battery Voltage: 3.6V nominal per battery unit
- Battery Capacity: >2Ah for extended backup duration
- 5V Supply: 5V DC ±10% with maximum 10mA current
- Output Protection: Short-circuit proof 14-31V DC output
- Operating Humidity: 10-95% non-condensing environment
- Product Weight: 660 grams for easy installation
Environmental Ratings
- Operating Temperature: -5°C to +70°C (+23°F to +158°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Humidity Resistance: 10-95% non-condensing rating
- Vibration Resistant: Withstands industrial environment shocks
- Dust Protected: Suitable for control cabinet installation
Shipping & Support
- 12-month comprehensive warranty coverage
- Express shipping via FedEx, UPS, DHL available
- Worldwide delivery with tracking numbers
- Technical support for installation questions
- Stock availability for quick order processing
Frequently Asked Questions
- How many batteries does the BKM-0001 module contain?
- The module includes two separate batteries for redundant power backup.
- What type of batteries does this module use?
- It uses SAFT LS14500CFG lithium Thionyl Chloride batteries.
- What is the purpose of the force enable key switch?
- It allows authorized staff to securely enable system operations.
- Can this module handle extreme temperature conditions?
- Yes, it operates from -5°C to +70°C and stores from -40°C to +85°C.
- What safety certifications does the BKM-0001 have?
- It carries CE, TUV, UL, CSA, and FM international approvals.
