Product details

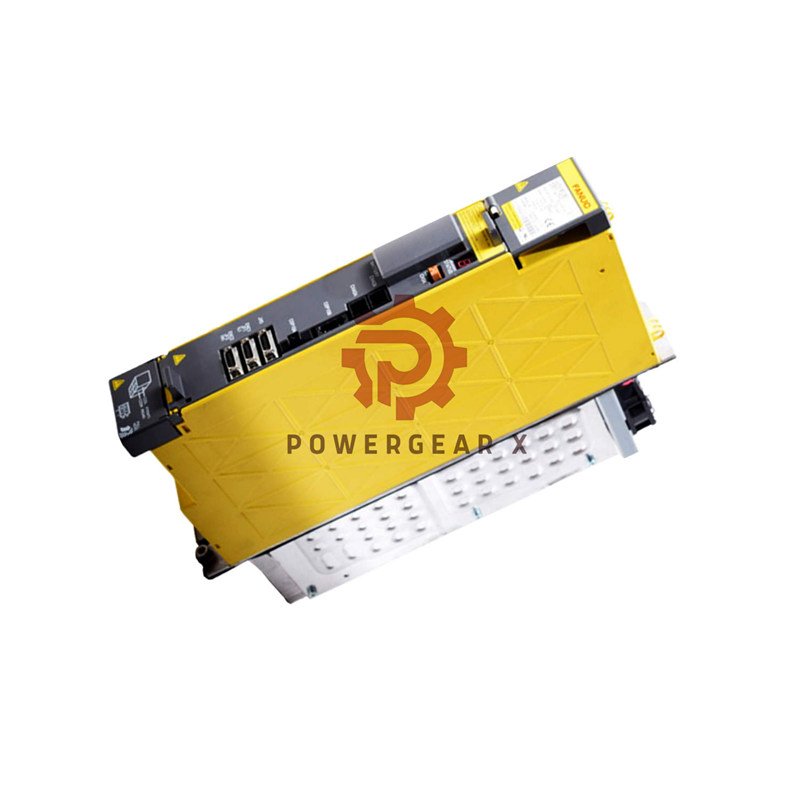

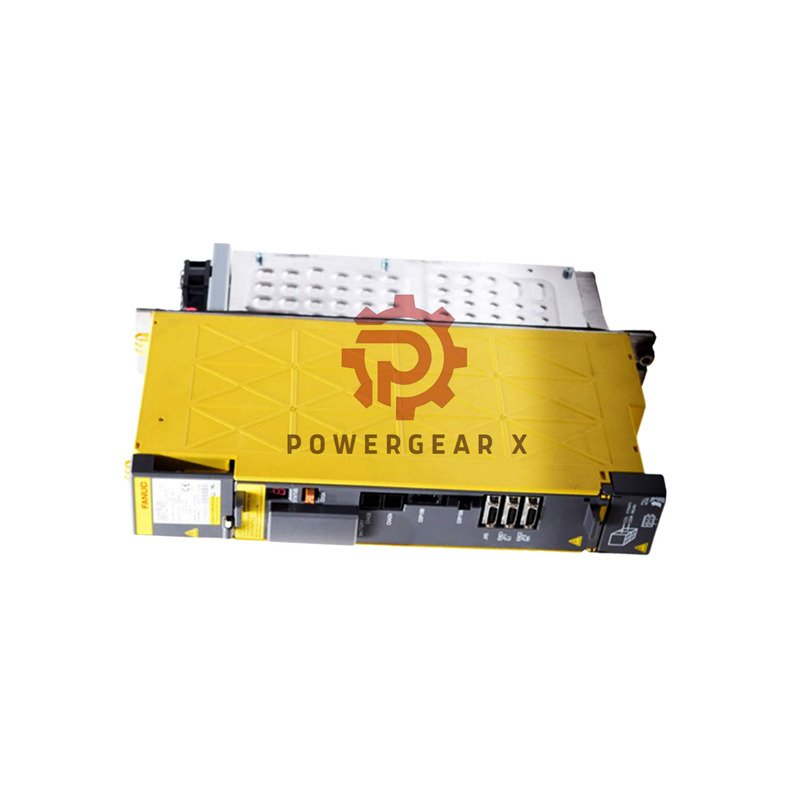

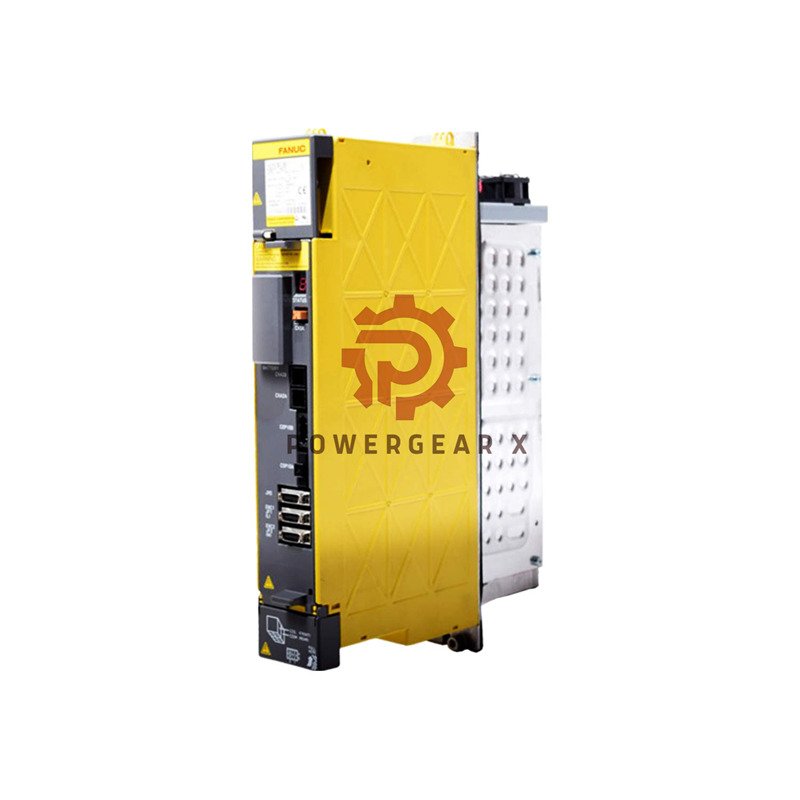

FANUC A06B-6117-H209 Servo Amplifier Module
The FANUC A06B-6117-H209 is built for stable, simple, and strong motion control. It works from 0°C to 55°C and stays reliable in harsh factory settings.
Main Features
- Output range: 200–240 VAC
- Rated current: 19A for L-axis and M-axis
- Operating frequency: 0.1–800 Hz
- Input power: 11 kW
- Input voltage: 283–339 VDC
- Humidity: Up to 90% RH (no condensation)
- Fast global shipping: FedEx, UPS, DHL
- 12-month warranty by Powergear X Automation
- Weight: 11.34 kg
Extra Technical Details
- Cooling type: Internal air flow
- Protection level: Overcurrent / Overheat / Undervoltage
- Peak output response: Under 1 ms
- Signal type: High-speed pulse input
- Mounting: Standard FANUC spindle frame
Why Choose This Module
- Stable dual-axis power for complex motion tasks
- Low noise and smooth acceleration
- Strong build for long machine life
- Wide voltage tolerance for unstable grids
- Trusted worldwide in CNC and automation lines
FAQ
1. What common setup issue should users watch for?
Loose grounding is the most frequent cause of startup faults. Always verify the ground path before power-up.
2. How long can the module run at full load?
In most systems, it can run 24/7 as long as airflow is not blocked and the ambient temperature stays below 55°C.
3. Can this unit replace older A06B series amps?
Yes, but check connector type and axis ratings. Some older frames require harness adjustment.
4. What is the recommended troubleshooting step for “axis overload” alarms?
Check motor lubrication, brake release, and mechanical binding. These issues cause more overload alarms than electrical faults.
5. How should the unit be stored if not installed immediately?
Keep it dry, avoid vibration, and store between -20°C and 60°C. Use anti-static packaging whenever possible.
