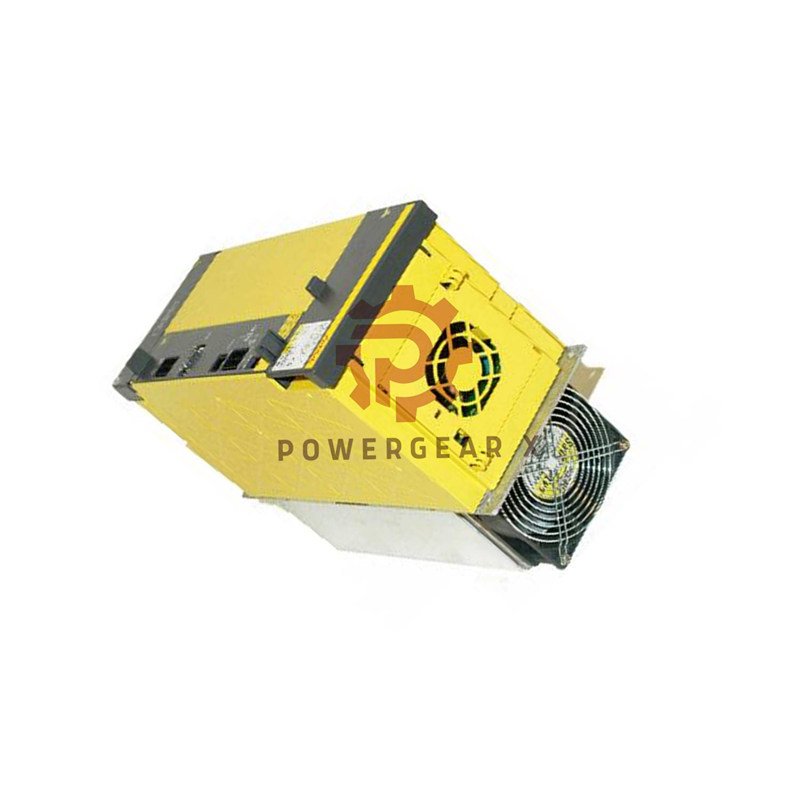

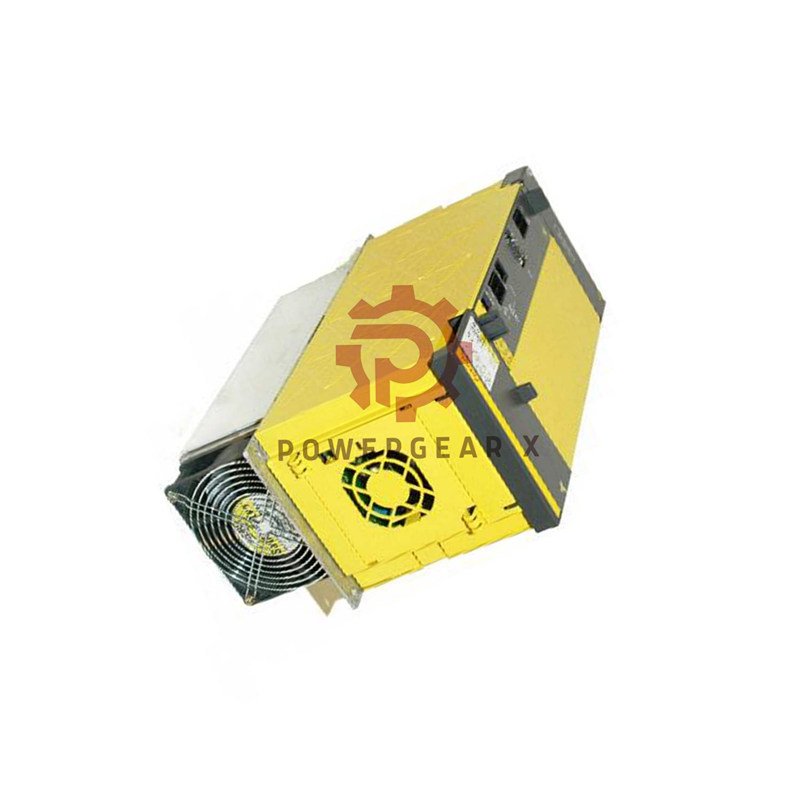

FANUC A06B-6110-H026: High-Power Drive Unit
Power your heavy-duty automation with confidence. The FANUC A06B-6110-H026 is a professional-grade power supply. It reliably converts AC mains to clean DC power. This unit feeds servo drives and motion controllers. It is built tough for 24/7 industrial use.
Core Features & Benefits
- High Power Delivery: Provides a strong 29.8 kilowatt output for demanding systems.
- Energy Efficient: Achieves 92% efficiency to reduce operating costs and heat.
- Stable DC Output: Supplies steady voltage between 283VDC and 339VDC.
- Global Voltage Ready: Works with 200V-240VAC, 50/60Hz, 3-phase inputs.
- Power Factor Corrected: High 0.98 PFC rating minimizes grid burden and improves quality.
Complete Technical Data
- Brand & Model: FANUC A06B-6110-H026
- Product Type: Power Supply Module for Drive Systems
- Input Rating: 200-240 VAC, 3-Phase, 50/60 Hz
- Input Current: 106 Amps (at 200V input)
- Output Power: 29.8 kW (Rated Continuous)
- Output Voltage: 283 – 339 VDC (Regulated)
- Output Current: 26 A (Continuous), 31 A (Maximum Peak)
- Efficiency: High efficiency of 92% (typical)
- Power Factor (PFC): 0.98 or better
- Thermal Management: Designed for forced air cooling
- Protection Features: Over-current, over-voltage, and over-temperature safety
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Storage Temperature: -20°C to 75°C (-4°F to 167°F)
- Humidity: Up to 90% non-condensing
- Physical Dimensions: 190mm (W) x 290mm (H) x 170mm (D) / 7.5″ x 11.4″ x 6.7″
- Unit Weight: 11.34 kg / 25 lbs
- Mounting: Designed for cabinet or chassis installation
- Safety Standards: Complies with industrial electrical safety norms
Key Selling Points
- Unmatched Reliability: FANUC quality ensures minimal downtime.
- Peak Performance: Handles surge currents up to 31A for motor startups.
- Compact Form Factor: Saves valuable space in control cabinets.
- Easy Integration: Connects seamlessly with FANUC servo amplifiers.
- Low Harmonic Distortion: Good for the health of your entire plant power system.
Installation & Safety Notes
- Install in a well-ventilated electrical enclosure.
- Ensure proper grounding for safety and noise reduction.
- Use correct gauge wires for high current input and output connections.
- Allow sufficient clearance for cooling air flow around the unit.
- Only qualified personnel should perform installation.
Order & Support Information
- Quality Promise: This module comes with a 12-month warranty.
- Worldwide Shipping: We dispatch via FedEx, UPS, and DHL express services.
- Package Includes: 1x FANUC A06B-6110-H026 Power Supply Module.
Expert FAQs
What is the main application for this power module?
It is designed as the main DC bus supply for a group of FANUC servo axis drives (amplifiers) in CNC machines, robots, or large automation cells.
Can I use a single-phase input with this unit?
No. The A06B-6110-H026 requires a 3-phase AC input. Using single-phase will damage it and void the warranty.
What does “283-339 VDC” output mean? Is it variable?
The output voltage is not user-adjustable. It is regulated by the module based on the input AC voltage to maintain a stable DC bus for the drives.
The unit is not powering on. What should I check?
First, verify all three phases of input voltage are present and correct. Check the main circuit breaker and any external fuses. Ensure all control signals (like enable) are active.
Is this module new or refurbished?
We supply factory-new, original FANUC units unless explicitly stated otherwise. All new modules include the full manufacturer’s warranty support.
