Introduction

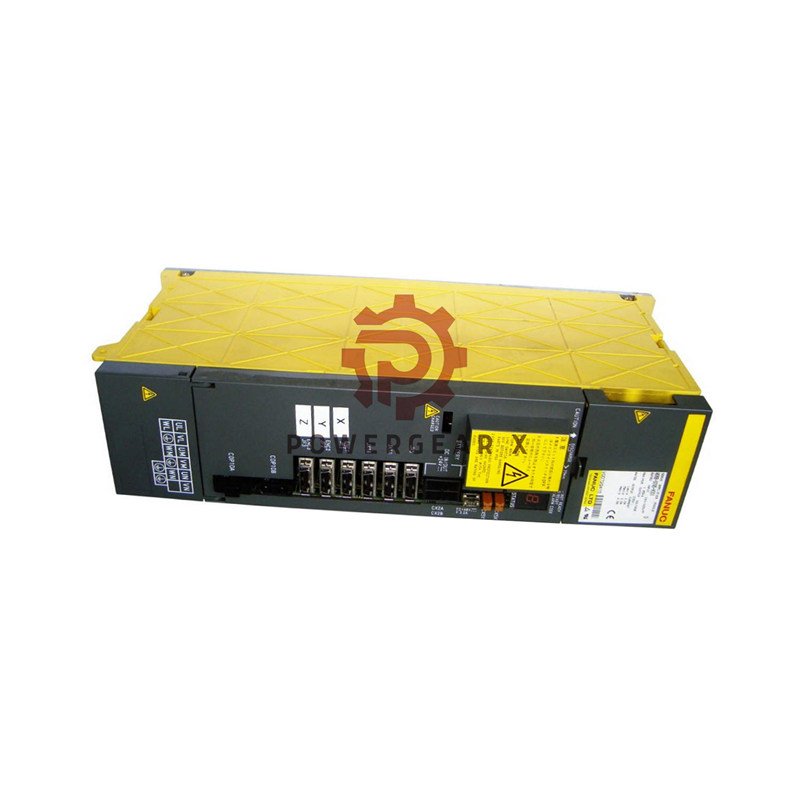

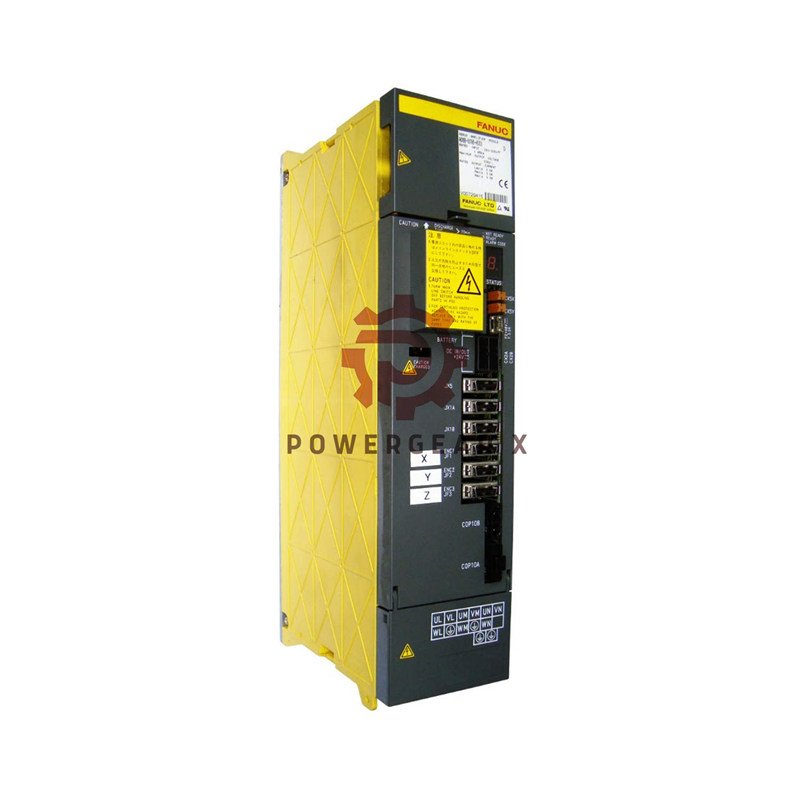

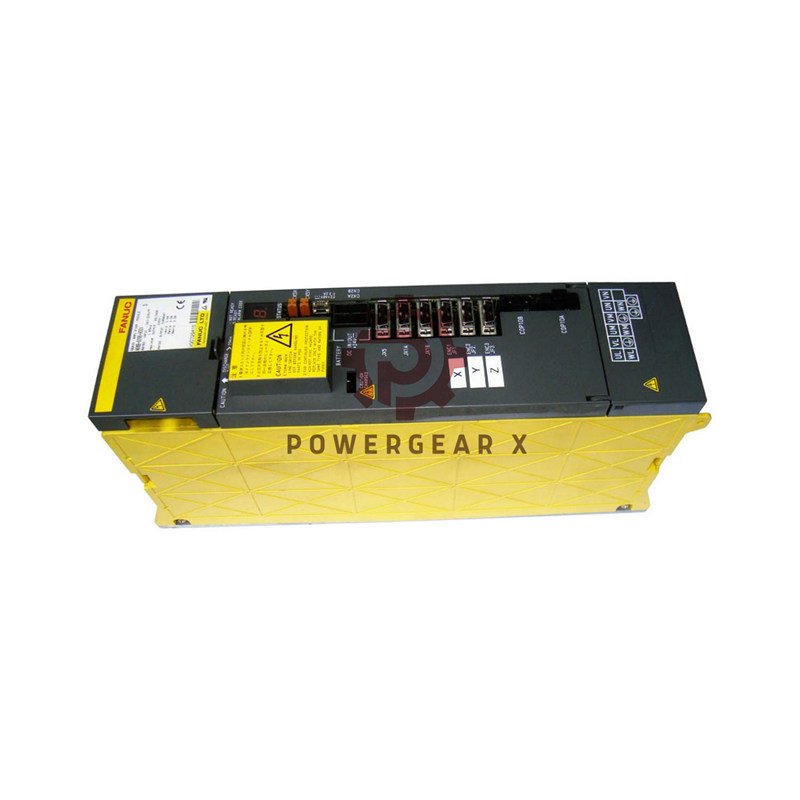

Powergear X Automation presents the A06B-6096-H301 servo amplifier from the FANUC A06B series. The unit drives three axes with stable power and fast response. It delivers 1.85 kW for CNC machines and automation lines. This guide gives clear technical notes and practical advice for field users.
Technical Specifications
- The **A06B-6096-H301** supports three-axis motion with precise current control.
- Power output reaches 1.85 kW for stable motor drive.
- The input range stays within 283–325 V AC.
- Output voltage peaks at 230 V.
- L/M/N axes deliver 3 A each.
- The unit operates from 0–40°C.
- It handles 5 g vibration and 1000 m altitude.
- Weight is 22.00 lbs (9.98 kg).
- Built-in fan improves cooling and protects internal parts.
- Safety features include overcurrent, overvoltage, overheating, and short-circuit protection.
Installation Guide
- Mount the unit on a firm plate with clear airflow space.
- Connect AC input within 283–325 V and confirm grounding.
- Separate motor and encoder cables to reduce noise.
- Tighten all terminals to maintain stable output.
- Set axis parameters after installation for smooth motion.
Packing List
- Package includes the A06B-6096-H301, manual, and mounting hardware.
- Anti-static and foam layers protect the unit during shipping.
- We ship worldwide using FedEx, UPS, or DHL.
Performance & Environment
- The amplifier drives three axes with smooth and accurate response.
- The cooling fan keeps temperature stable during long runs.
- Shielded design reduces electrical noise in CNC systems.
- Vibration and altitude limits support tough workshop use.
FAQ
- Q: Why does the axis move roughly after wiring?
A: Check grounding and cable layout to remove electrical noise. - Q: How often should I clean the cooling path?
A: Clean dust monthly and check fan speed during service. - Q: Can I run the unit at higher altitude?
A: Stay within 1000 m or improve airflow for safe operation.
