FANUC A06B-6066-H003 Servo Drive | Compact CNC Control Module

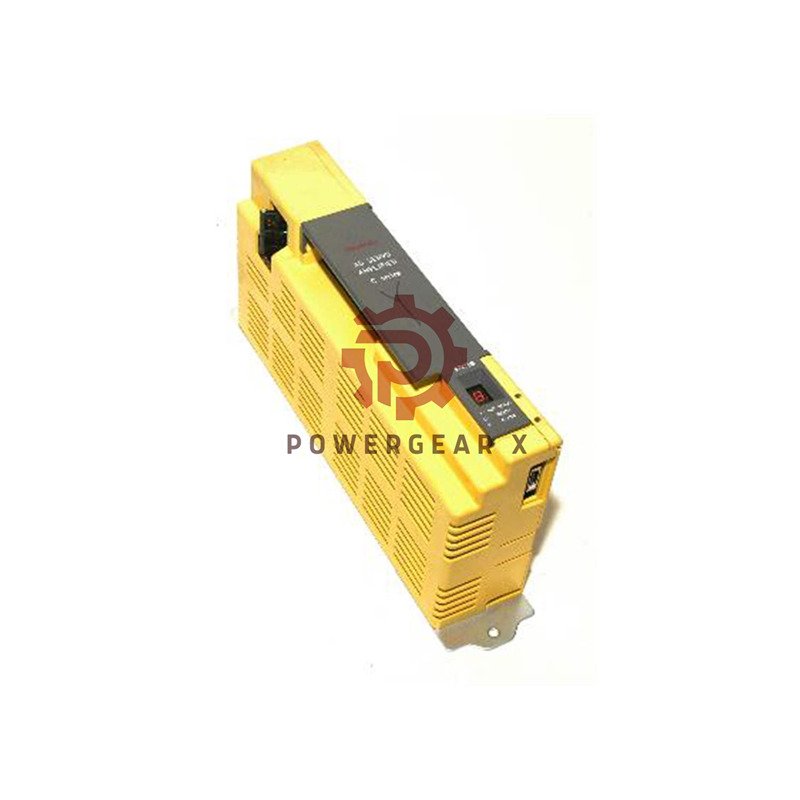

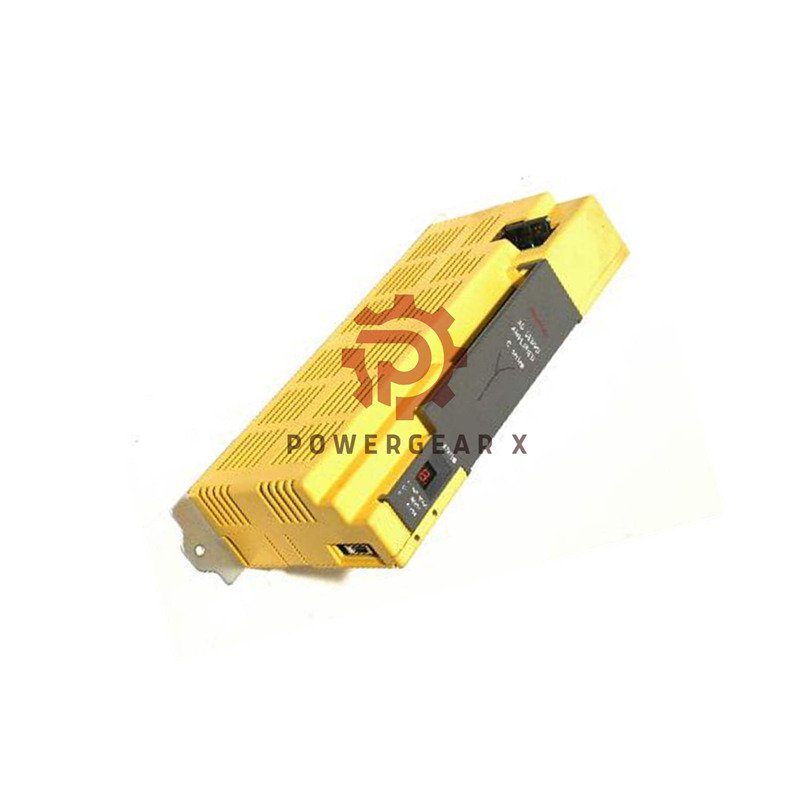

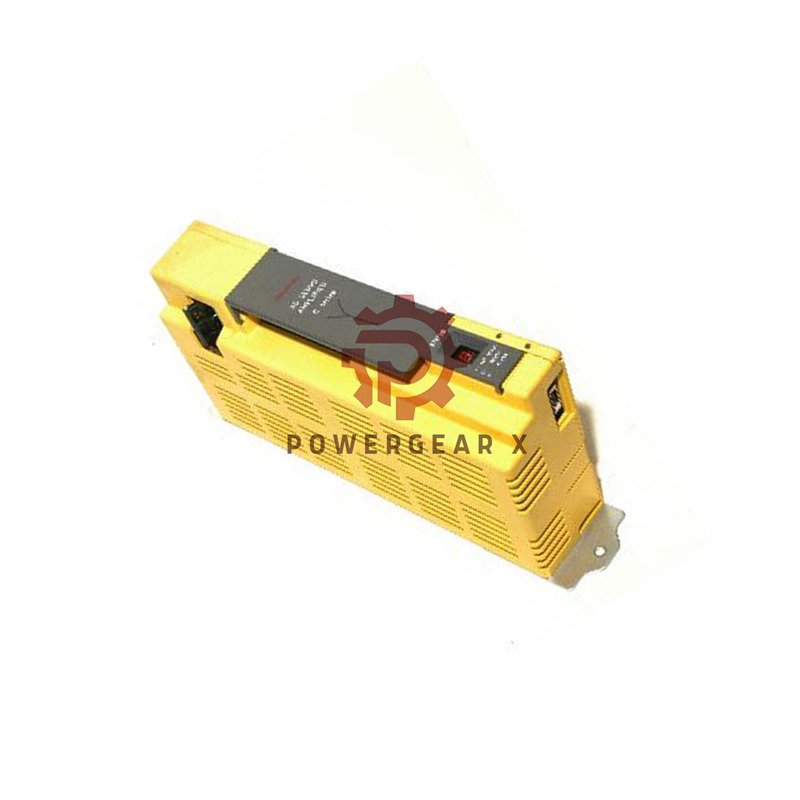

FANUC A06B-6066-H003 Compact Servo Drive

The A06B-6066-H003 from FANUC gives fast motion control for AC servo motors. It fits tight spaces and supports CNC tasks with steady output. Author Powergear X Automation offers a clear guide for quick setup and field use.

Core Features

• The A06B-6066-H003 supports quick speed and current control for smooth drive response.
• The unit works from 0–40°C in stable form.
• It handles 5 g vibration for tough shop floors.
• It runs at altitudes up to 1000 m with no performance loss.
• Weight is 19.00 lbs (8.62 kg) for easy mounting.
• The compact body saves space inside CNC cabinets.
• Fast signal response supports high-accuracy motor feedback.
• The system lowers electrical noise with improved shielding.
• The housing protects parts from dust, heat, and impact.
• You receive a full 12-month warranty from shipment.

Extended Technical Points

• The drive supports AC servo motors with wide torque range.
• Start-up time stays short for quick machine cycle changes.
• Cooling channels improve airflow during heavy load runs.
• Internal circuits keep stable output under rapid motion.
• Noise filters help maintain clean signals in CNC use.

Installation Tips

• Mount the unit on a rigid plate to reduce vibration impact.
• Keep airflow open around the case for lower heat.
• Use short motor cables to reduce noise pickup.
• Check all screws for tight contact before power-on.
• Test motor direction and tune speed settings after wiring.

Packaging & Delivery

• The box includes the servo drive, connectors, and a setup guide.
• Protective foam and anti-static wrap shield the unit in transit.
• Global shipping via FedEx, UPS, and DHL.

FAQ

• Q: Why does the motor feel slow during first setup?
  A: Check gain settings and confirm clear signal paths.
• Q: How do I reduce heat during long machine runs?
  A: Improve cabinet airflow and clean dust near vents.
• Q: What should I check after a sudden machine stop?
  A: Inspect wiring, load levels, and motor feedback status.
• Q: Why does noise appear in the speed loop?
  A: Use shielded cables and keep power lines away from signals.
• Q: How do I keep the drive stable in old machines?
  A: Tune speed limits slowly and check bearings for drag.
