Product Overview

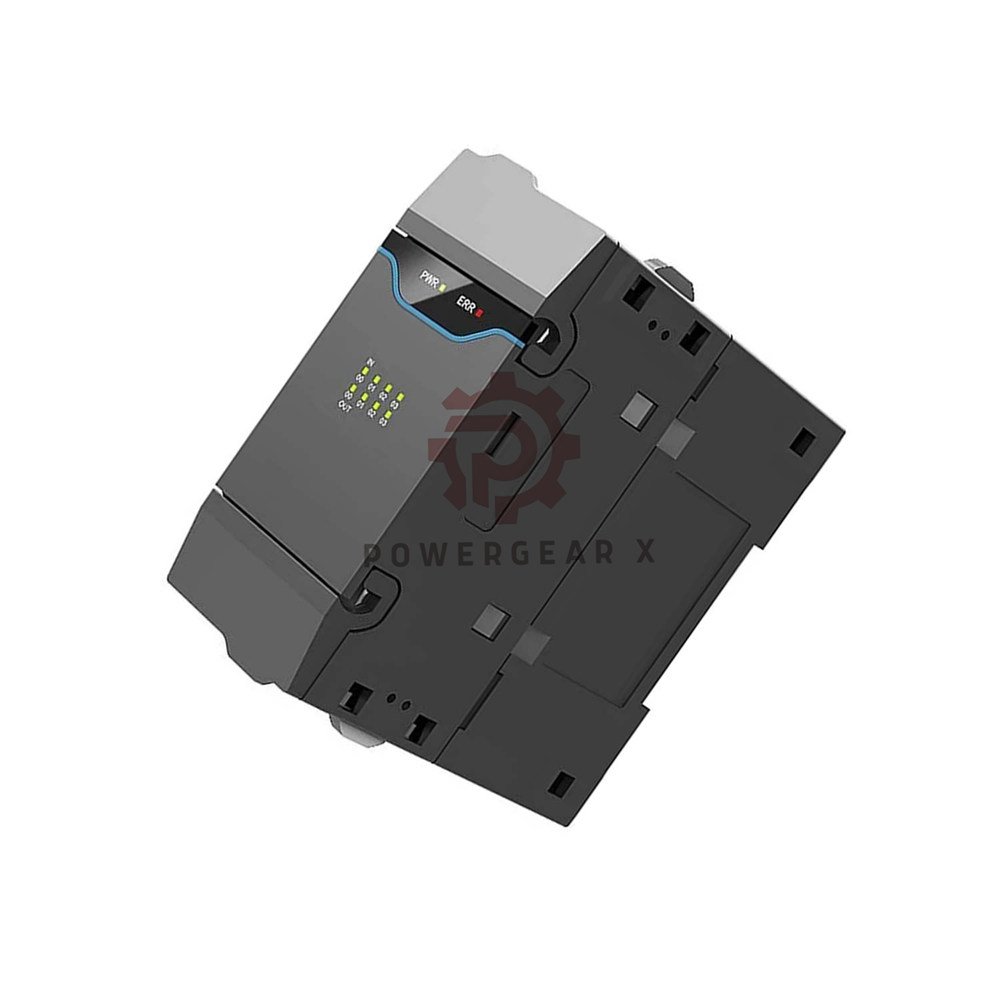

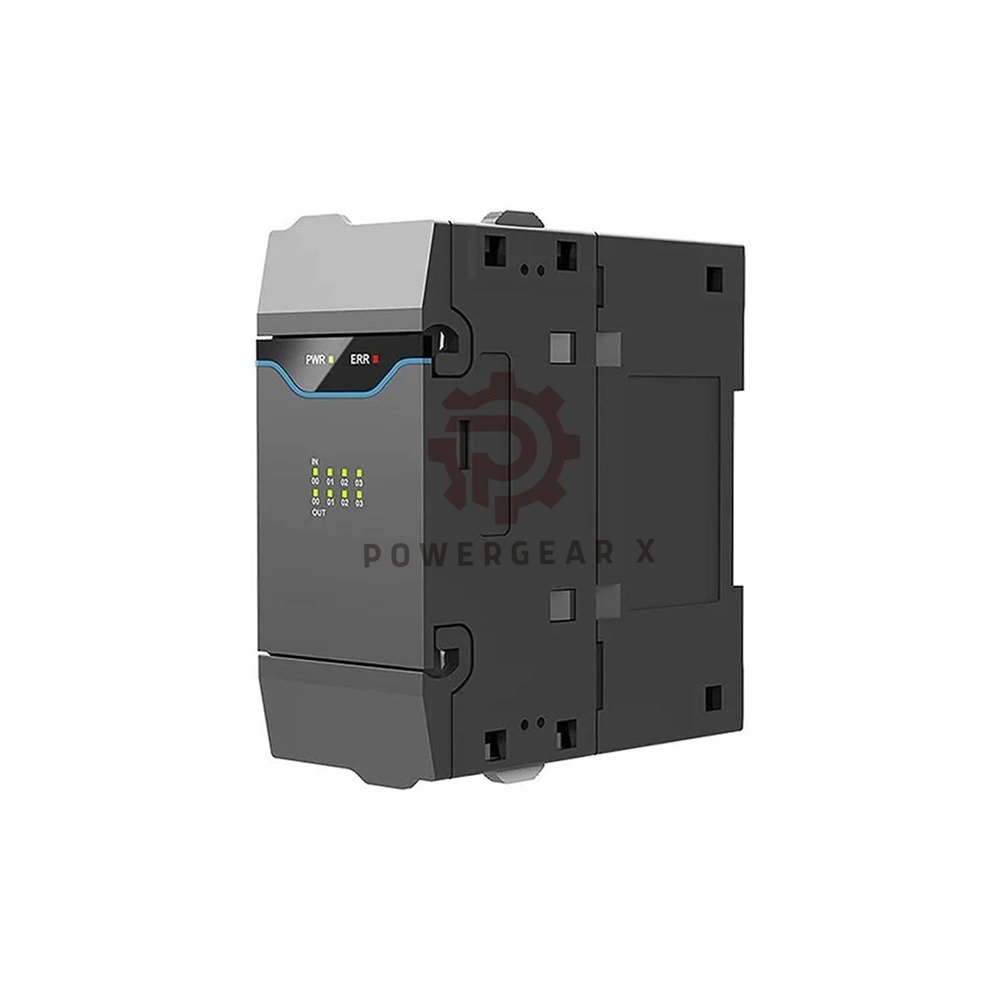

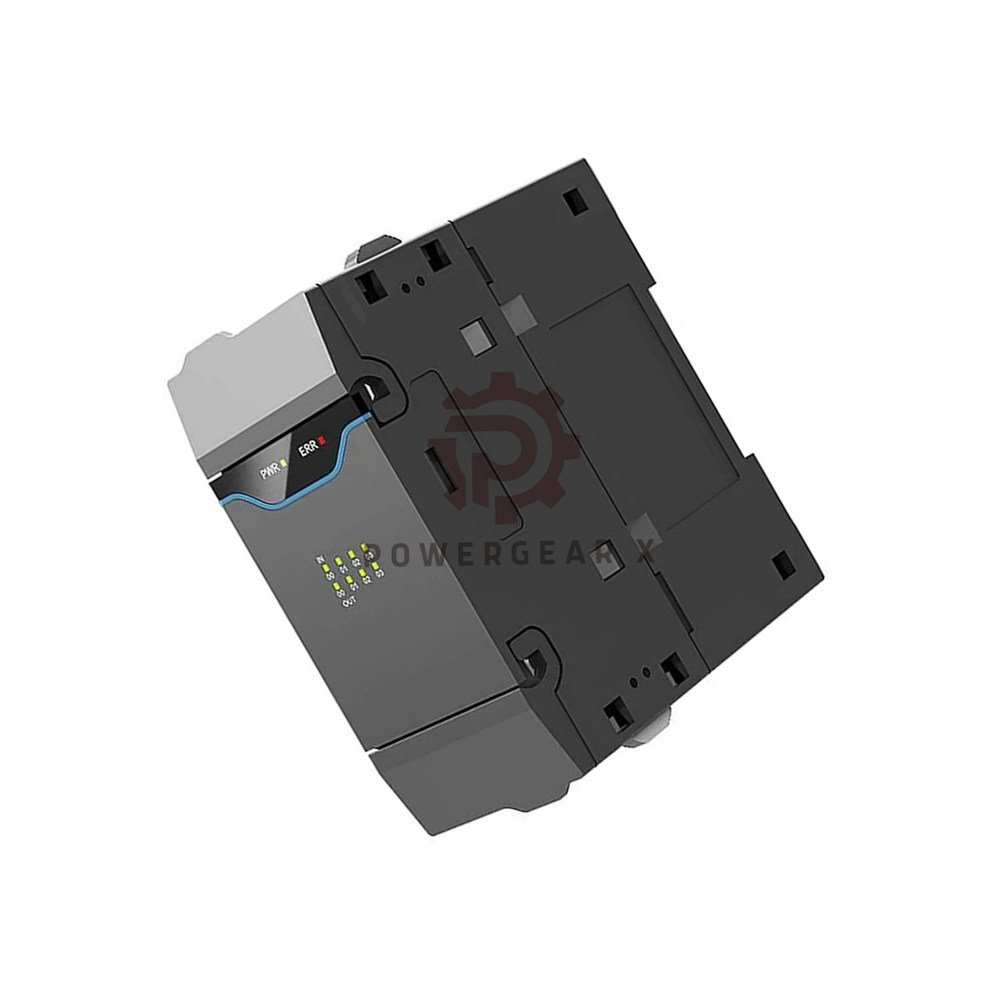

- FLEXEMATIC F5-MD0800 – a compact digital input module from the FC5 series. It runs on 24VDC and offers 8 digital inputs for expanding your PLC system.
- Designed for industrial automation. Provides reliable signal acquisition from sensors, switches, and other digital devices.
- Built with high-quality components. Ensures long-term stability in harsh environments. Simple to install and configure.
Model & Ordering Tree (Hierarchical Suffix)
- F5 (FC5 Series Digital Module)
- -MD (Digital Input Module)
- 0800 (8 Inputs, 0 Outputs)
- 24VDC (Power Supply)
- 0800 (8 Inputs, 0 Outputs)
- -MD (Digital Input Module)
- Full model: F5-MD0800 – 8 digital inputs, 24VDC, IP20, FC5 series expansion module.
Core Technical Data
- Power supply: 24VDC (rated).
- Inputs: 8 digital inputs.
- Compatibility: Works with FC5 series PLCs as expansion module.
- Operating temperature: -10°C to 60°C.
- Protection: IP20 (finger safe).
- Certifications: RoHS compliant, REACH unaffected.
- Customs information: ECCN EAR99, HTSUS 8537.10.9160.
Environmental & Immunity
- Temperature: operate -10°C to 60°C.
- Protection: IP20, suitable for control cabinet installation.
- Compliance: RoHS, REACH. Meets industrial standards.
Quick Installation Guide
- Mount on 35mm DIN rail next to FC5 series CPU.
- Connect 24VDC power to module terminals.
- Wire digital sensors to input terminals (0-7).
- Module automatically detected by CPU – no complex setup.
- Removable terminal blocks for easy wiring.
Diagnostics & Maintenance
- LED indicators: power and input status per point.
- Monitor input status via PLC programming software.
- No routine calibration required. Keep clean and dry.
- Firmware not required – pure hardware module.
Compatibility & Certifications
- Fully compatible with all FC5 series PLCs (FC5, FC5M).
- Works with FC5 expansion backplane and power supply.
- Certified: RoHS compliant, REACH unaffected.
- ECCN: EAR99 – easy international shipping.
Package & Warranty
- Includes: F5-MD0800 module, mating connector, quick guide.
- Warranty: 12 months against defects. Extended options available.
Professional FAQ (Experience-based & Selection Guide)
- Can I use this module with any FC5 PLC?
Yes. F5-MD0800 works with all FC5 series CPUs (FC5, FC5M). Just connect to expansion bus and power up. - Do I need special software to configure these inputs?
No. Inputs are automatically recognized. You can assign them in your PLC program like built‑in I/O. - What is the maximum cable length for sensors?
Standard digital inputs support up to 100m shielded or 50m unshielded cable – same as CPU inputs. - Which shipping carriers do you use for international orders?
We ship worldwide via FedEx, UPS, DHL. All services include tracking. Contact us for bulk discounts. - How do I choose between F5-MD0800 and other input modules?
Choose MD0800 if you need exactly 8 extra digital inputs. For more inputs, consider MD1600 (16 inputs) or combine multiple modules up to 31 total.
Typical Applications
- Expand I/O capacity of FC5 PLC systems.
- Add sensors to existing machines – proximity, limit switches.
- Upgrade old relay panels with digital monitoring.
- Distributed I/O in industrial automation.
- Educational PLC training systems.
