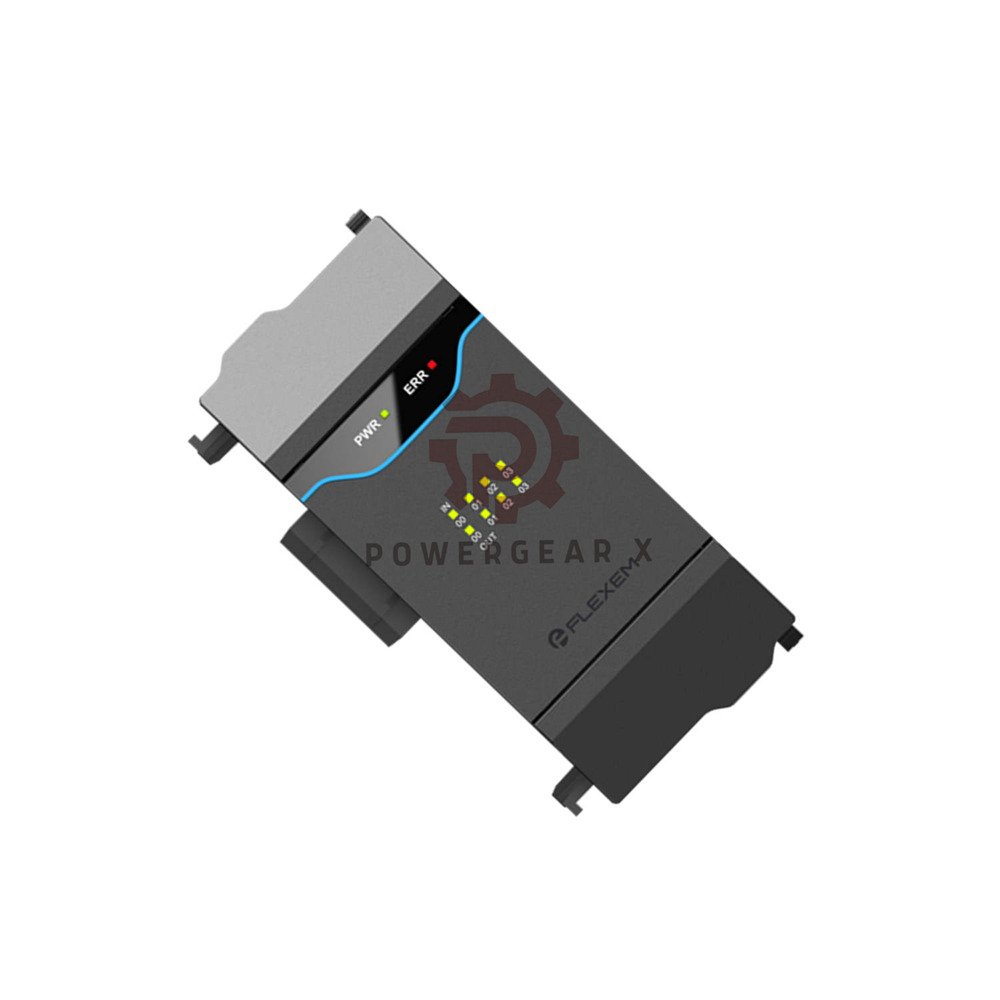

🔷 Flexem F5-MA0400A – 16‑Bit Analog Input Module
- F5-MA0400A – 4‑channel high precision analog input
- Inputs: 4 analog channels, 16‑bit resolution
- Signal types: Voltage -10V…+10V, Current 0…20mA
- Full scale: Customizable -30000…30000
- Accuracy: ±0.2% of full scale range
📥 Input Specifications – 4 Channels
- Signal characteristics
- Voltage input: -10 V to +10 V DC
- Current input: 0 to 20 mA DC
- Scalable range: -30000 to 30000 (user configurable)
- Overload protection
- Max voltage: 30 V (without damage)
- Max current: 30 mA (without damage)
- Input impedance
- Voltage mode: >200 kΩ (very high)
- Current mode: <250 Ω +5% (low burden)
- Resolution & precision
- Resolution: 16‑bit (65536 steps)
- Conversion accuracy: ±0.2% of full scale
⚡ Power Supply & Electrical Data
- Power requirements
- Rated voltage: 24 VDC (-15% / +20%)
- Max power: 3.2 W
- Supply source: From main unit internally (no external wiring)
- Connection type
- Terminals: Removable spring‑cage type
- Wire size: 0.2 mm² to 1.5 mm²
🌡️ Environmental Conditions
- Temperature ranges
- Operating: -10 °C to +60 °C
- Storage: -20 °C to +70 °C
- Humidity
- Operating range: 5% to 95% RH (non‑condensing)
🔧 Mechanical Installation
- Mounting methods
- DIN rail: Direct on DIN46277 (35 mm width rail)
- Screw fixing: Alternative mounting with screws
- Physical dimensions
- Form factor: Dimension A (standard Flexem size)
- Width: Compatible with 35 mm rail systems
⚙️ Configuration & Diagnostics
- Signal scaling
- Full range value: Adjustable -30000…30000
- Purpose: Match any sensor output range precisely
- Status indicators
- Power LED: Lights when 24 VDC present
- Module status: Communicated via main unit
📦 Package Contents & Warranty
- Included items
- 1x Flexem F5-MA0400A analog input module
- Quick installation guide
- Removable terminal block (pre‑installed)
- Warranty
- 12 months from shipment date
- Covers manufacturing defects
- Shipping options
- FedEx Priority / UPS Express / DHL Express
- Tracking provided within 24 hours
🏭 Typical Applications
- Process control: Read pressure, flow, level sensors
- Machine building: Monitor analog transducers
- HVAC systems: Measure duct pressure and temperature
- Water treatment: Flow and level monitoring
- Test equipment: High precision data acquisition
❓ Expert FAQ – Selection Guide
- Can I mix voltage and current signals on F5-MA0400A?
- Answer: Yes, each of the 4 channels can be set independently for voltage (-10V…+10V) or current (0…20mA). Very flexible for mixed sensors.
- Why choose 16‑bit resolution over 12‑bit?
- Answer: 16‑bit gives 65536 steps vs 4096 steps. You get 16x finer detail, essential for precision applications like weighing or positioning.
- Does this module need its own power supply?
- Answer: No, the F5-MA0400A gets power directly from the Flexem main unit. No extra wiring or external supply needed.
- What happens if I connect 24V to a current input?
- Answer: The input is protected up to 30mA. For voltage mode, protection goes to 30V. Brief overrange won’t damage the module.
- Can I mount this module on a panel with screws?
- Answer: Yes, it supports both DIN rail (DIN46277) and direct screw mounting. Works in any cabinet type.
- How fast is shipping for F5-MA0400A?
- Answer: We ship within 24 hours via FedEx, UPS, or DHL. Express delivery takes 3‑5 business days worldwide.
- Is the 12‑month warranty extendable?
- Answer: Yes, contact sales@powergearx.com for extended warranty options beyond the standard 12 months.
