Product details

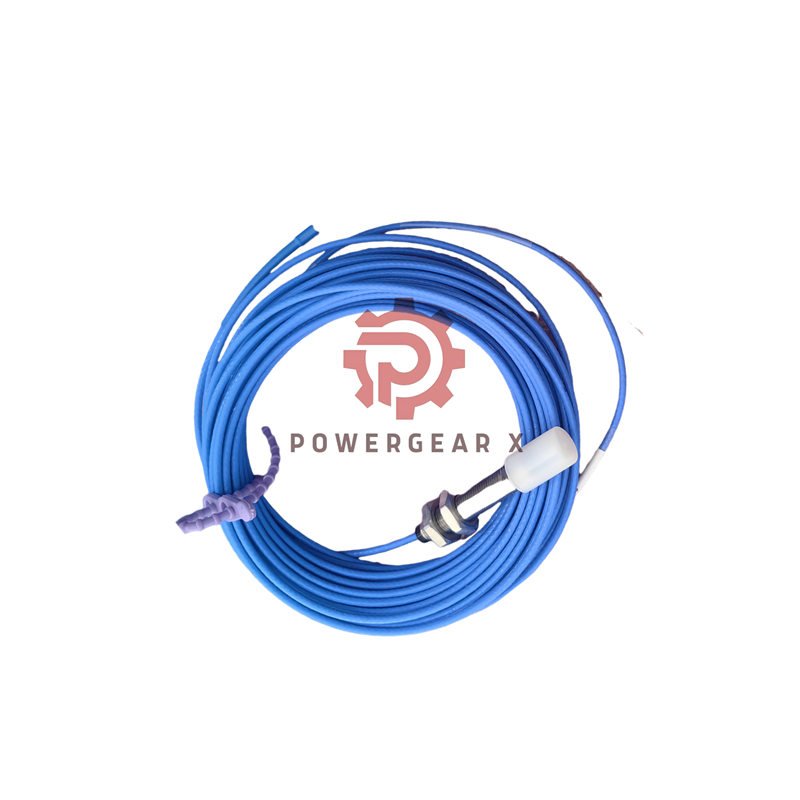

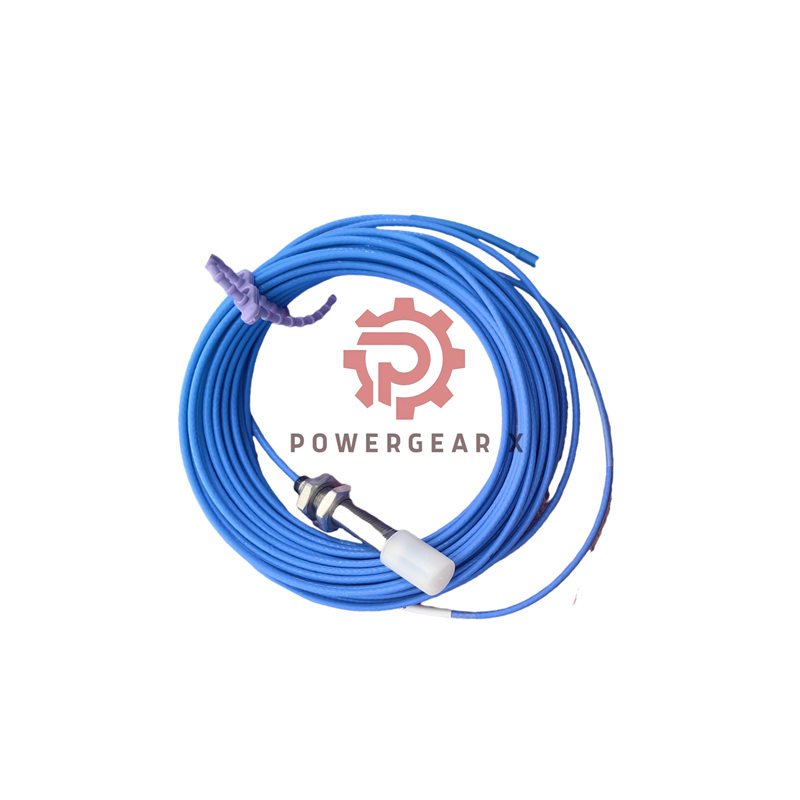

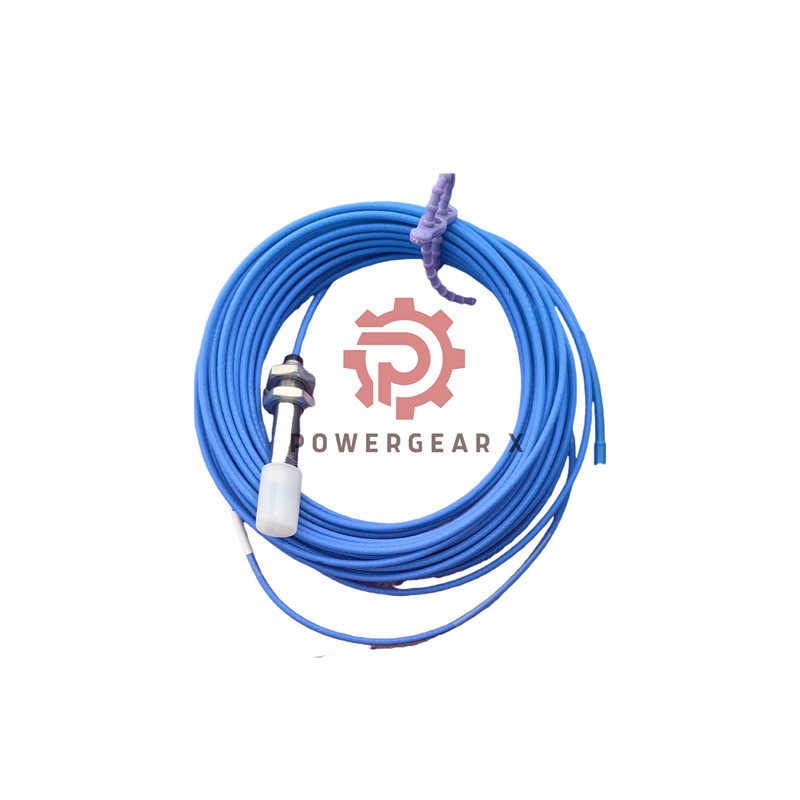

Emerson EZ1080-RM Reverse Mount Eddy Current Sensor
The EZ1080-RM 8mm sensor delivers precise non-contact measurement for tough industrial environments. This reverse mount design provides reliable shaft monitoring in turbines, compressors, and pumps. The EZ1080-RM ensures accurate displacement and vibration data where it matters most.
Key Technical Features
- Brand: Emerson | Model: EZ1080-RM-00-010
- Measurement Range: 2mm with 0.5mm initial gap
- Sensitivity: 7.87 V/mm (API) or 8 V/mm (ISO)
- Linearity: ±0.025mm across full range
- Frequency Response: 0 to 10 kHz
- Resolution: 0.0001mm for precise detection
- Temperature Range: -35°C to +180°C operation
- Response Time: <1ms for real-time monitoring
Product Advantages
- Reverse mount design for confined spaces
- IP67/IP68 protection against dust and moisture
- 10000 hpa pressure rating for demanding applications
- Glass-fiber reinforced PEEK tip for durability
- Stainless steel case resists corrosion and impact
- FEP cable withstands oils and chemicals
- Global certifications for worldwide use
Environmental Specifications
- Operating Temperature: -35°C to +180°C
- Storage Temperature: -40°C to +200°C
- Shock Resistance: 100g for 11ms
- Vibration Resistance: 20g to 2000 Hz
- Humidity Range: 0-100% non-condensing
- EMC Protection: 10V/m electromagnetic immunity
Ordering Details
- Product Code: EZ1080-RM-00-010
- Configuration Breakdown:
- EZ1080 – 8mm Eddy Current Sensor Series
- RM – Reverse Mount Design
- 00 – 0mm Unthreaded Length
- 010 – 1.0 Meter Cable Length
- Thread Size: M10x1 standard industrial
- Warranty: 12 months manufacturing defects
- Shipping: FedEx, UPS, DHL express available
Target Specifications
- Minimum Target Size: 14mm diameter
- Recommended Target: 20mm diameter or larger
- Shaft Diameter: 25mm minimum recommended
- Target Materials: AISI 4140, 1035, 4340 steel
- Surface Finish: 0.4-0.8 μm Ra for optimal performance
- Target Runout: <10% of measurement range
Certifications & Safety
- ATEX, IECEx, CSA, UL certified
- CE marked for European compliance
- SIL 2 capable for safety systems
- DNV GL approved for marine applications
- IP68 available with DOC-TEST option
- Hazardous area approvals: Zone 0, 1, 2
Frequently Asked Questions
- What does reverse mount (RM) configuration mean?
The sensor installs from behind the mounting surface, ideal for limited space applications.
- Can this sensor measure at high speeds?
Yes, it handles shaft speeds up to 60,000 RPM with proper calibration.
- What cable length options are available?
Standard lengths from 1m to 10m, with custom lengths on request.
- How does temperature affect calibration?
Minimal drift of ±0.05%/°C maintains accuracy across temperature ranges.
- Is special mounting hardware required?
Standard M10x1 threading works with common industrial mounting solutions.
Package Includes
- 1 x Emerson EZ1080-RM-00-010 Sensor
- 1 x 1-meter FEP high-temperature cable
- Installation and calibration guide
- Compliance documentation
- 12-month warranty certificate
