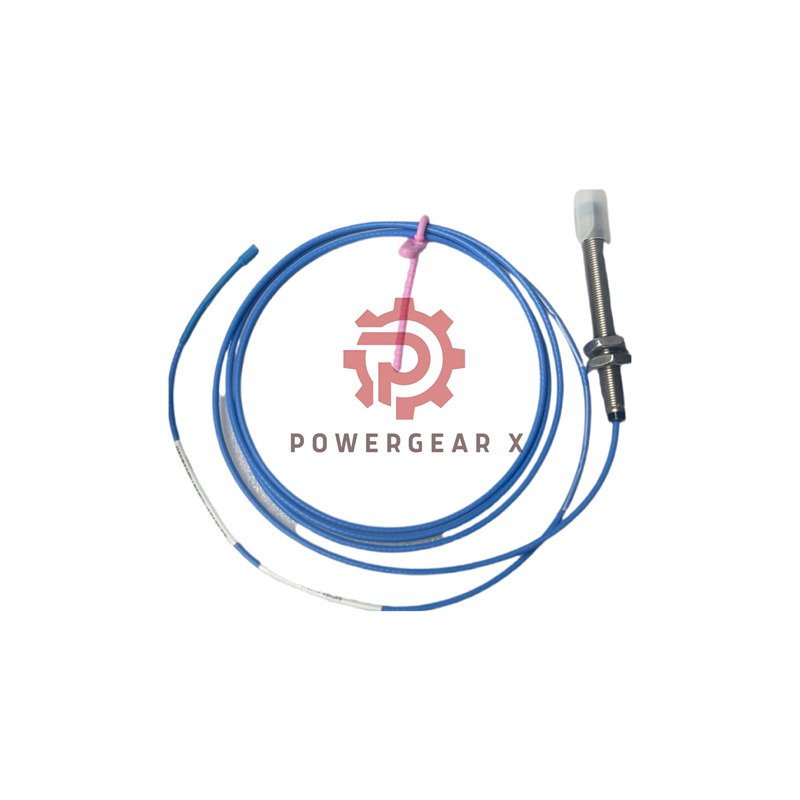

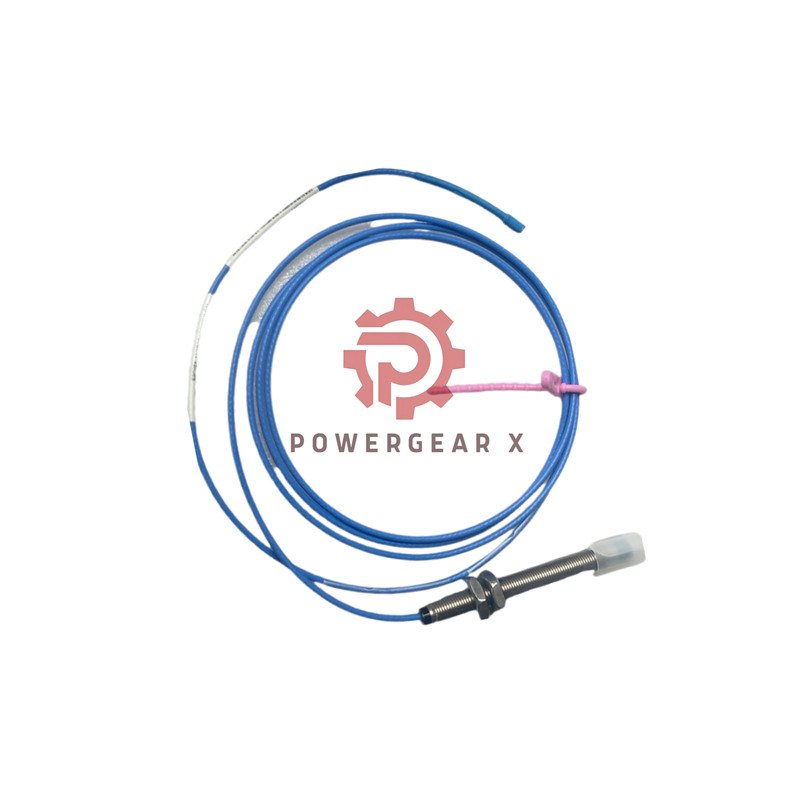

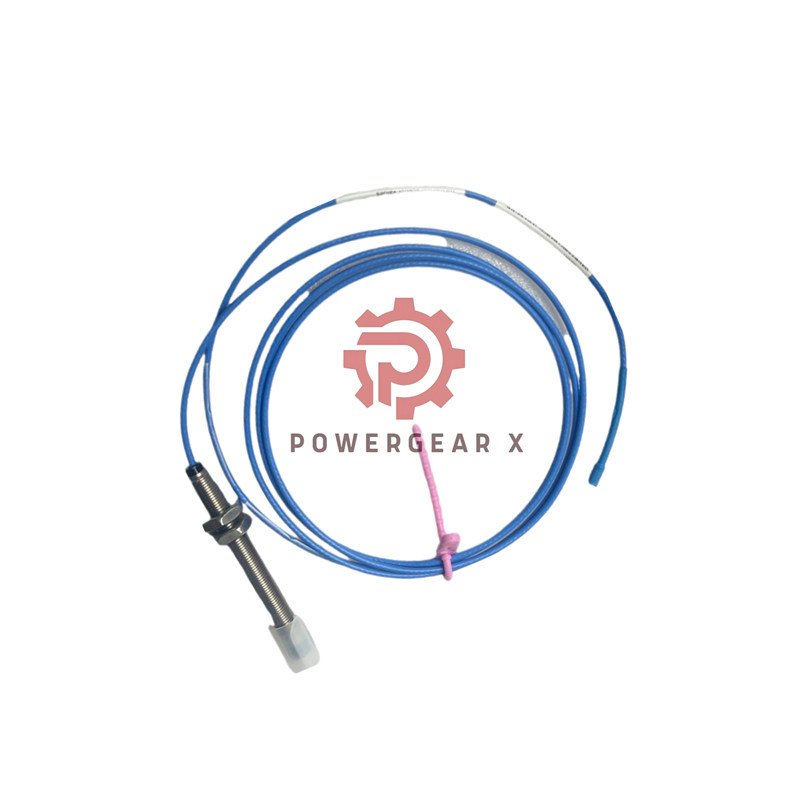

EZ1080-23-18-010 8mm Eddy Current Sensor for Turbomachinery

Powergear X EZ1080 8mm Eddy Current Sensor

Powergear X introduces the EZ1080 8mm Eddy Current Sensor, engineered for precision measurement in demanding industrial environments. This non-contact sensor delivers exceptional performance for critical turbomachinery monitoring applications.

Core Technical Specifications

• Brand: Emerson
• Model: EZ1080
• Measurement Range: 2 mm (80 mils)
• Initial Air Gap: 0.5 mm (20 mils)
• Sensitivity: 7.87 V/mm or 8 V/mm ±5%
• Linearity: ±0.025 mm deviation
• Temperature Range: -35°C to +180°C
• Protection Rating: IP67/IP68 certified
• Pressure Resistance: 10000 hpa maximum

Advanced Performance Features

• Target Materials: Ferromagnetic steels including AISI 4140, 1035
• Minimum Target Size: 14mm diameter (20mm recommended)
• Shaft Requirements: 20mm minimum diameter (25mm recommended)
• Construction: PEEK sensor tip, stainless steel case
• Cable Material: FEP with nickel-plated brass connector
• Weight: Approximately 100 grams with 1m cable

Certifications & Compliance

• CE Marking (2014/30/EU, 2014/34/EU)
• ATEX and IEC-Ex for hazardous areas
• CSA and UL certifications for North America
• CCC certification for China markets
• DNV GL marine classification approval
• SIL 2 Capable per IEC 61508:2010

Model Configuration: EZ1080-23-18-010

• EZ1080: 8mm Eddy Current Sensor Series
• -23-: 230mm total case length
• -18-: 180mm unthreaded section
• -010: 1.0 meter integrated cable
• Thread Specification: M10x1 metric threading
• Cable Armor: Standard non-armored configuration

Installation Guidelines

• Verify target material compatibility before installation
• Maintain specified minimum shaft diameter requirements
• Set initial air gap to 0.5mm for optimal calibration
• Ensure operating temperature stays within rated limits
• Check differential pressure specifications for your application
• Use proper mounting tools to avoid sensor damage

Package Contents

• One EZ1080 eddy current sensor unit
• Factory-integrated 1.0 meter FEP cable
• Technical documentation and specification sheet
• Compliance certificates and safety information
• Express shipping via FedEx, UPS, or DHL

Frequently Asked Questions

• What applications suit the EZ1080 sensor best?
• Ideal for turbines, compressors, gearboxes, and pumps monitoring
• How does temperature affect sensor performance?
• Stable operation from -35°C to +180°C ensures reliability
• What target materials work with this sensor?
• Compatible with ferromagnetic steels like AISI 4140 and 1035
• Is the EZ1080 suitable for explosive atmospheres?
• Yes, with Intrinsic Safety and Increased Safety certifications
• What does the model suffix -23-18-010 indicate?
• It specifies case length, unthreaded length, and cable length
