EZ1080-16-11-010 EZ1080 Eddy Current Sensor | High-Accuracy Displacement

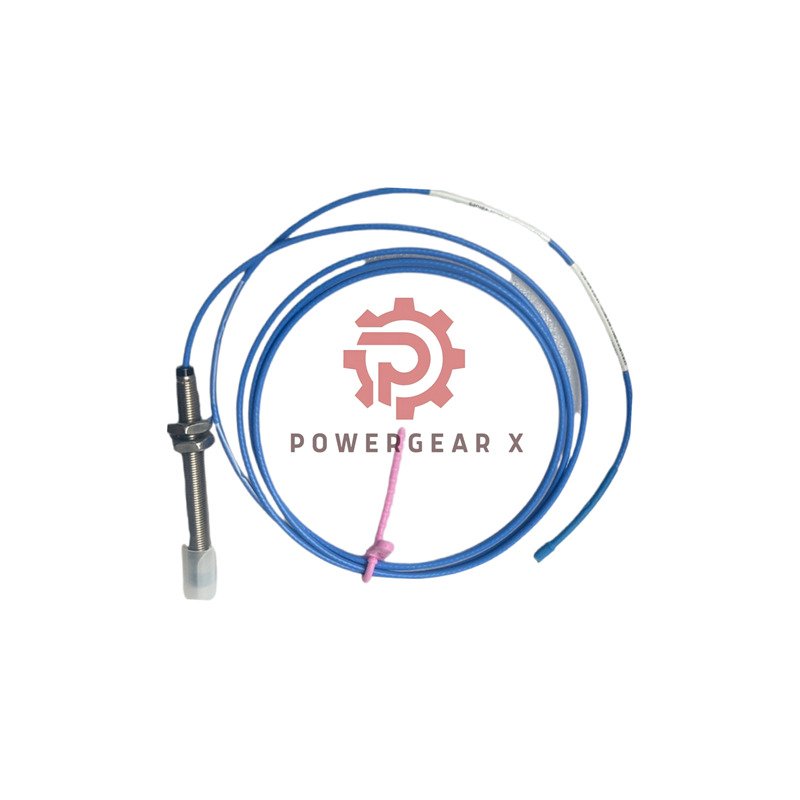

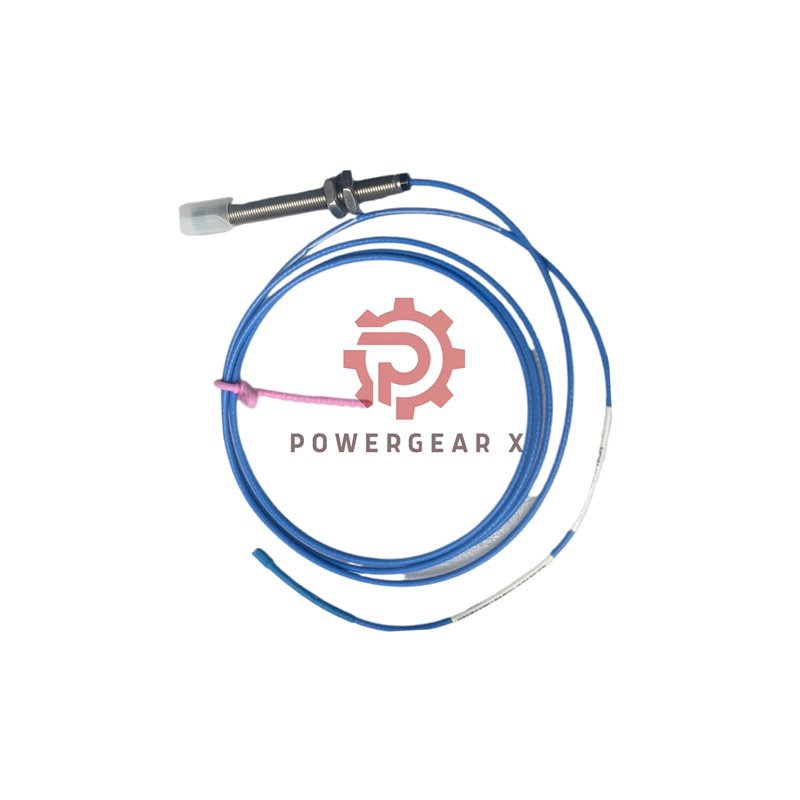

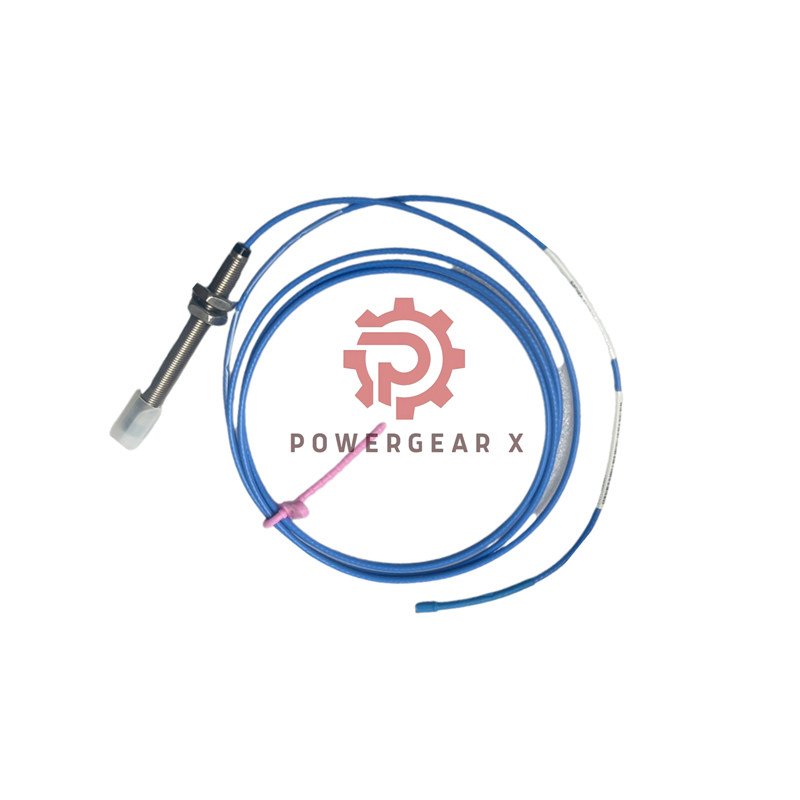

Emerson EZ1080 8mm Eddy Current Sensor Overview

The EZ1080 series from Emerson delivers high-performance non-contact monitoring for critical turbomachinery. This 8mm eddy current sensor measures shaft displacement, position, and speed with exceptional accuracy. Engineers rely on EZ1080 for applications in turbines, compressors, and pumps.

Technical Specifications

• Brand: Emerson | Model: EZ1080
• Linear Measurement Range: 2 mm (80 mils)
• Initial Air Gap: 0.5 mm (20 mils) ±5%
• Incremental Scale Factor: 7.87 V/mm (API) or 8 V/mm (ISO)
• Minimum Target Size: 14mm | Recommended Shaft: 25mm
• Target Materials: 4140 steel, SAE 1035, ASTM A410 equivalent
• Frequency Response: 10 kHz standard
• Deviation from Straight Line: ±0.025 mm

Environmental Durability

• Protection Rating: IP67/IP68 (with optional DOC-TEST)
• Operating Temperature: -35°C to +180°C (sensor)
• Pressure Rating: 10000 hPa at 120°C
• FEP Cable and Nickel-Plated Connector
• Approvals: ATEX, IECEx, CSA, UL, CCC

Ordering Configuration

• Base Model: EZ1080
• Case Thread: M10x1
• Armored Cable: No
• Case Length: 160mm
• Unthreaded Length: 110mm
• Cable Length: 1.0 meter

Installation Guidelines

• Maintain 0.5mm initial gap between sensor and target
• Use recommended ferromagnetic steels for optimal performance
• Ensure minimum shaft diameter of 25mm for accurate readings
• Avoid mounting near strong electromagnetic fields
• Verify cable connections meet IP67 standards when sealed

Packaging & Shipping

• 1x EZ1080-16-11-010 Sensor with 1m Cable
• Protective Storage Case Included
• Global Shipping via FedEx, UPS, or DHL
• Standard Lead Time: 2-3 Weeks

Frequently Asked Questions

• What is the maximum cable length for EZ1080?

We recommend maximum 5 meters for signal integrity.

• Can this sensor submerge in oil?

Yes, with IP68 rating when DOC-TEST option selected.

• What connectors are compatible?

Standard M12 connectors with nickel-plated brass interface.

• How to calibrate the sensor?

Use API or ISO scaling factors with compatible converter.

For technical specifications or bulk pricing, contact sales@powergearx.com or +86 18030005825. Our team provides expert support for industrial automation solutions.
