Product details
Overview

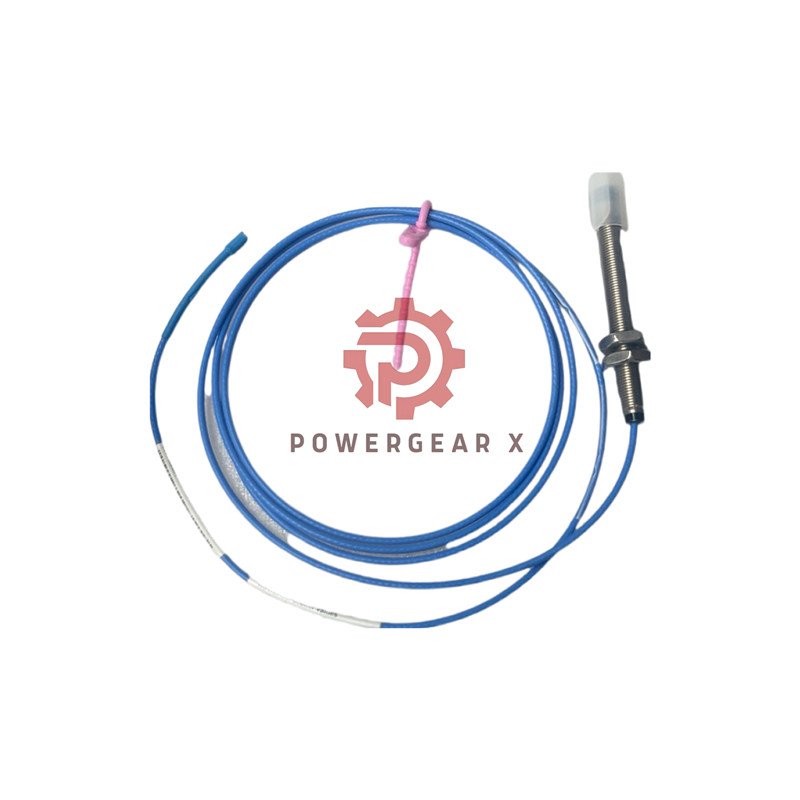

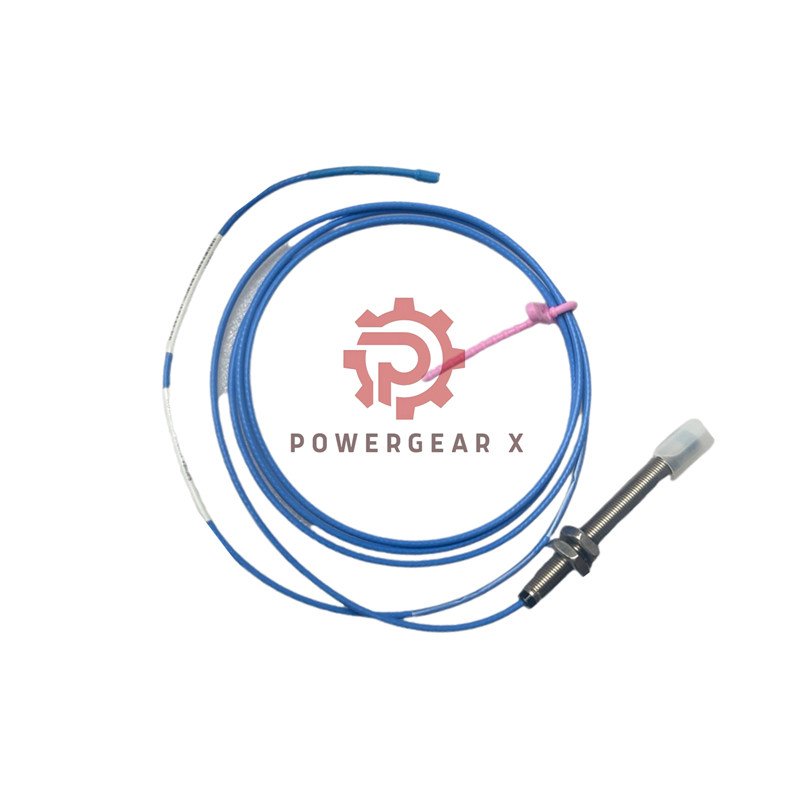

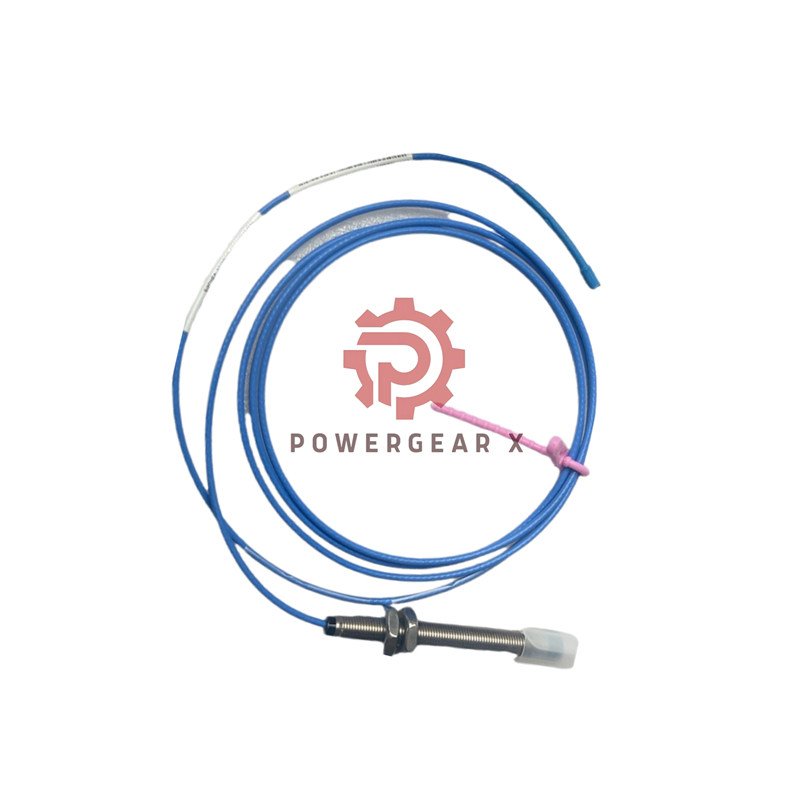

The EZ1080 8mm Eddy Current Sensor delivers precise non-contact measurement for critical industrial applications. Powergear X designed this robust sensor to monitor shaft dynamics in turbomachinery. It ensures reliable performance in harsh environments with wide temperature tolerance.
Key Features
- Non-contact design for measuring displacement and speed
- Linear range of 2 mm with 0.5 mm initial air gap
- IP67/IP68 protection against dust and water ingress
- Operating temperature from -35°C to +180°C
- Complies with ATEX, IEC-Ex, CSA, and other global standards
- Stainless steel case and reinforced PEEK sensor tip
Technical Specifications
- Brand: Emerson | Model: EZ1080
- Linear Measurement Range: 2 mm (80 mils)
- Incremental Scale Factor: 7.87 V/mm or 8 V/mm ±5%
- Deviation from Straight Line: ±0.025 mm
- Minimum Target Size: 14 mm | Recommended: 20 mm
- Target Materials: AISI/SAE 4140, 1035, 4340, and more
- Protection Class: IP67 (IP68 with DOC-TEST option)
- Differential Pressure Sealing: 10000 hPa at 120°C
- Weight: Approx. 100 grams with 1m cable
Applications
- Radial and axial displacement measurement in turbines
- Eccentricity and speed monitoring in compressors
- Position sensing for gearboxes, pumps, and fans
- Critical machinery protection systems
Installation Guide
- Mount the sensor using M10x1 threads with 120mm sleeve
- Maintain initial air gap of 0.5 mm from target surface
- Ensure minimum shaft diameter of 20mm for optimal performance
- Use recommended ferromagnetic steel targets for accuracy
- Verify all connections meet IP67/68 standards
Ordering Information
- Model: EZ1080 | Series: 8mm Eddy Current Sensor
- Case Threads: M10x1 | Armored Cable: No
- Case Length: 120mm | Unthreaded Length: 0mm
- Cable Length: 1.0 meter
- Suffix Breakdown: -12- (120mm), -00- (0mm UTL), -010- (1m cable)
Packaging List
- 1 x EZ1080-12-00-010 Eddy Current Sensor
- 1 x 1-meter FEP cable with connector
- Installation documentation sheet
Shipping Options
- Fast global delivery via FedEx, UPS, or DHL
- Tracking information provided for all orders
- Express shipping available for urgent requirements
FAQ
- What is the minimum target size for accurate measurement?
Use a minimum 14mm target, but 20mm provides better reliability.
- Can this sensor operate in high-temperature environments?
Yes, it handles temperatures from -35°C to +180°C.
- What materials are compatible with the sensor?
It works with ferromagnetic steels like AISI 4140, 1035, and 4340.
- Is the sensor suitable for hazardous areas?
Yes, with Intrinsic Safety (ia) and Increased Safety (ec) certifications.
Contact Information
- Email: sales@powergearx.com
- Phone: +86 18030005825
- Reach our team for technical support and pricing details
