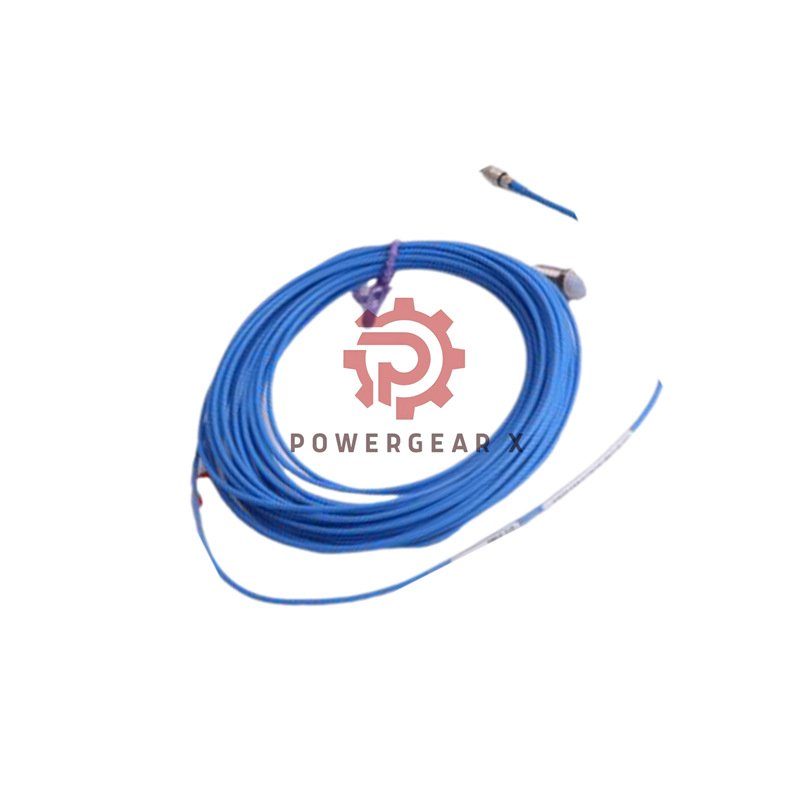

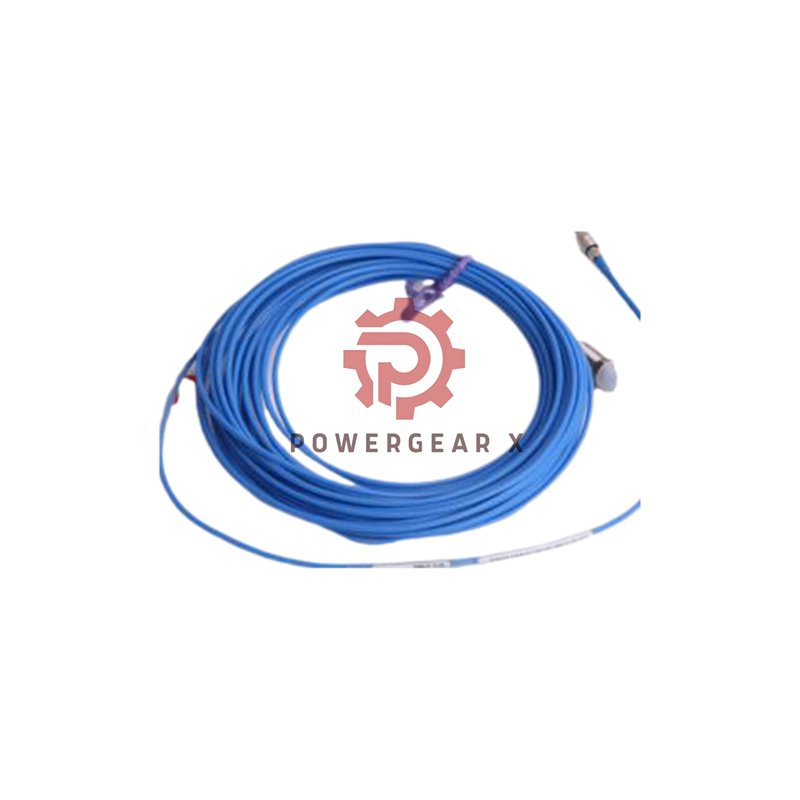

EZ1080-060-00-50 8mm Eddy Current Sensor | Turbomachinery Monitoring

Core Performance Specifications

• Brand: Emerson | Model: EZ1080 | Category: 8mm Eddy Current Sensor
• Linear Measurement Range: 2mm (80 mils) with 0.5mm initial air gap
• Incremental Scale Factor: 7.87 V/mm ±5% (API) or 8 V/mm ±5% (ISO)
• Deviation from Straight Line: ±0.025mm (±1 mil) for precision tracking
• Minimum Target Size: 14mm | Recommended Shaft Diameter: 25mm
• Target Materials: Ferromagnetic steels including AISI/SAE 4140, 1035, 4340

Environmental Durability

• Protection Class: IP67 (IP68 with optional DOC-TEST certification)
• Operating Temperature: -35°C to +180°C (sensor) | -35°C to +150°C (cable)
• Differential Pressure Rating: 10000 hpa (145 psi) at 120°C
• Construction: Glass-fiber reinforced PEEK tip | Stainless steel case
• FEP cable with nickel-plated brass connector | Weight: ~100 grams

Global Compliance Certifications

• CE, ATEX, IEC-Ex, CSA, UL, CCC, CCOE PESO India, KTL Korea, CML Japan
• Marine Certification: DNV GL classification for offshore units
• Safety Integrity Level: SIL 2 Capable per IEC 61508:2010
• Hazardous Area Approvals: Intrinsic Safety (ia) and Increased Safety (ec)
• Temperature Classification: T6 (-35°C to 55°C) to T2 (-35°C to 200°C)

Ordering Configuration

• Base Model: EZ1080 – 8mm Eddy Current Sensor
• Case Threads: M10x1 | Armored Cable: No
• Suffix Breakdown:
  • -060- 600mm sleeve length
  • 00 0mm unthreaded length
  • 50 5.0 meter cable length

Installation Guidelines

• Maintain 0.5mm initial air gap between sensor tip and target surface
• Ensure target material meets specified ferromagnetic steel requirements
• Use recommended 25mm minimum shaft diameter for optimal performance
• Verify IP67/IP68 sealing when installing in wet or dusty environments
• Confirm temperature ratings match application operating conditions

Packaging Contents

• 1x EZ1080-060-00-50 Eddy Current Sensor
• 5-meter FEP cable with integrated connector
• Mounting hardware for M10x1 thread installation
• Shipping via FedEx, UPS, or DHL express services

Frequently Asked Questions

• What is the maximum cable length for EZ1080 sensors?

Standard cables extend to 5 meters. Custom lengths require factory consultation.

• Can this sensor measure non-ferrous materials?

No. The EZ1080 specifically requires ferromagnetic steel targets for proper operation.

• How does temperature affect measurement accuracy?

Performance specifications remain stable within 0°C to 45°C. Extended ranges may require calibration.

Contact our engineering team: sales@powergearx.com or +86 18030005825 for application support.
