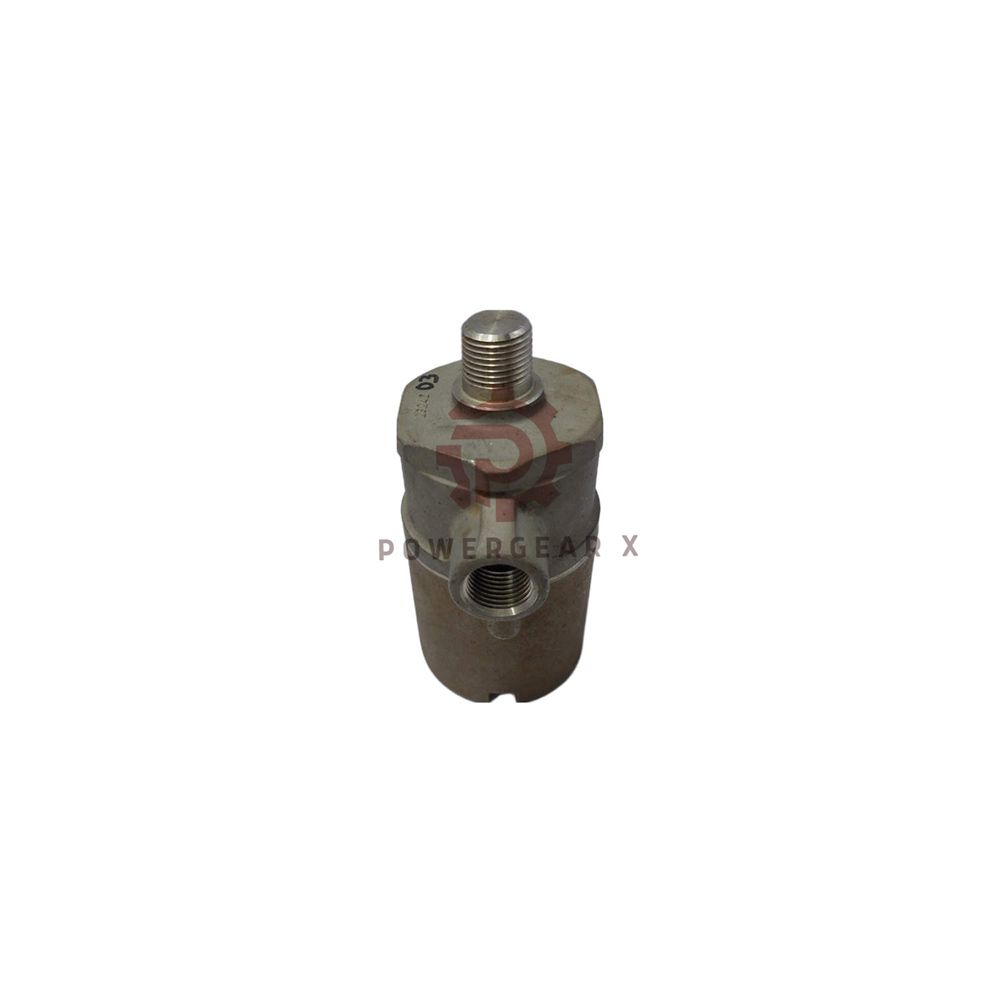

Bently Nevada 107770-04-03 Velocity Transducer Housing – CENELEC Certified
The Bently Nevada 107770-04-03 Velocity Transducer Housing provides reliable vibration monitoring for hazardous areas.
It combines the 330500 Velomitor Sensor and the 21128 stainless-steel housing, preinstalled and ready for use.
Designed for CENELEC Zone 1 applications, it meets strict ATEX/IECEx and RoHS standards.
Key Specifications
- Part Number: 107770-04-03
- Model: 107770 – Velocity Transducer Housing – CENELEC approved
- Mounting Thread Option: 04 = 1/2-14 BSP
- Cable Exit Fitting Option: 03 = 1/2-14 NPT explosion-proof with cable gland seal
- Condition: New & Original in Factory Packing
- Warranty: 12 Months Factory Warranty
Technical Details
- Material: 303 Stainless Steel housing
- Ingress Protection: IP65 / NEMA 4X rated
- Frequency Response: 10 Hz – 7 kHz typical
- Sensitivity: 100 mV/g ±5%
- Operating Temperature: −45 °C to +120 °C
- Maximum Shock: 5000 g peak
- Electrical Isolation: 500 V RMS
- Compliance: RoHS Directive 2011/65/EU
Performance Advantages
- Explosion-proof design ensures safety in CENELEC Zone 1 areas.
- Preassembled housing reduces installation time and maintenance cost.
- Excellent resistance to corrosion, moisture, and vibration.
- High linearity for accurate velocity signal conversion.
- Compact and rugged structure for industrial field use.
Hazardous Area Ratings
- Certification: ATEX and IECEx compliant
- Hazard Group: IIC Gas Environments
- Zone 0/1: Must connect to compliant certified equipment
- Zone 2: Electrical limits must remain within rated values
- Cable Type: EN 60079-25 Type A or Type B cable
Shipment & Service
- Fast delivery through FedEx, UPS, or DHL.
- Factory-sealed package includes installation guide and cable fittings.
- Comprehensive technical support during the 12-month warranty.
Additional Product Insights
- Compatible with standard Bently Nevada velocity monitoring systems.
- Ideal for turbines, compressors, pumps, and critical rotating machinery.
- Reduces vibration signal noise under harsh EMI conditions.
FAQ – Professional Guidance
- Can I use this with older Velomitor versions?
Yes, it supports most Bently Nevada 330500 Velomitor sensor variants. - What thread adapters are available?
Adapters for metric and NPT threads are available upon request. - Does it require recalibration?
No recalibration is needed if installed with factory-supplied Velomitor sensors. - How do I improve vibration measurement accuracy?
Mount the housing firmly and avoid flexible structures to reduce signal error. - Can it be used outdoors?
Yes, its IP65 stainless-steel design withstands heavy rain and dust exposure.
Contact Information
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
- Please mention Model 107770-04-03 when contacting sales.
