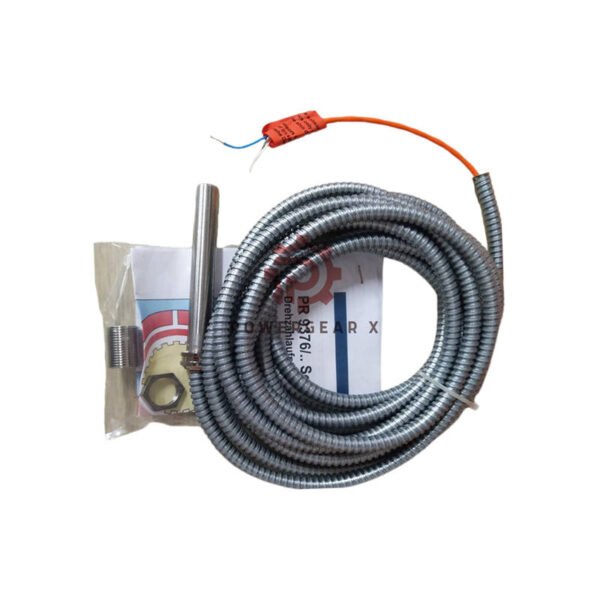

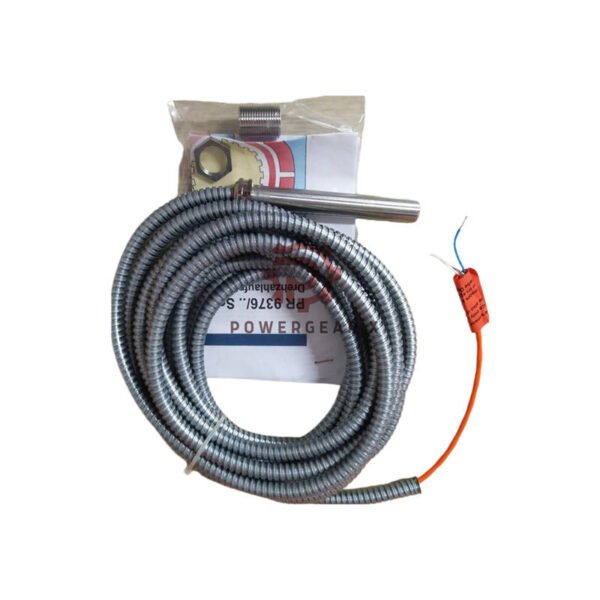

Powergear X PR9376/010-011 Hall Effect Sensor Overview
The PR9376/010-011 Hall Effect Sensor provides accurate non-contact monitoring for critical machinery. This reliable sensor performs excellently in demanding industrial environments like turbines and compressors.
Key Technical Specifications
- Brand: Powergear X
- Model: PR9376/010-011
- Operating Voltage: 10-30 VDC with maximum 25mA current
- Output Signal: 1 AC cycle per revolution/gear tooth
- Response Time: Ultra-fast 1 μs rise and fall time
- Frequency Range: Up to 12 kHz (720,000 cpm)
- Output Voltage: High >10V, Low <1V at 12 VDC
Installation Requirements
- Air Gap: 1 mm for Module 1, 1.5 mm for Module ≥2
- Target Material: Magnetic soft iron or non-stainless steel
- Gear Type: Compatible with spur wheels and involute gearing
- Simple mounting process with standard industrial fittings
Environmental Specifications
- IP Rating: IP67 for dust and water protection
- Temperature Range: -25°C to 100°C operating
- Storage Temperature: -40°C to 100°C
- Stainless steel construction ensures corrosion resistance
Electrical Properties
- Low power consumption with maximum 400 Ohms resistance
- PTFE cable provides excellent thermal and chemical resistance
- Stable operation across the entire voltage supply range
- Compatible with standard industrial control systems
Packaging Information
- Includes one PR9376/010-011 sensor unit
- Standard 5-meter PTFE cable included
- Armored cable option available for harsh environments
- Worldwide shipping via FedEx, UPS, and DHL
Frequently Asked Questions
- What types of machinery is this sensor suitable for?
- Ideal for steam turbines, gas turbines, compressors, pumps, and fans
- Can this sensor measure both speed and proximity?
- Yes, it provides accurate measurements for both applications
- What is the maximum operating distance from the target?
- Air gap of 1-1.5 mm depending on the gear module size
- Is the sensor compatible with stainless steel targets?
- No, it requires magnetic soft iron or non-stainless steel targets
