Enveloping Trendmaster Pro Accelerometer 200157-17-05

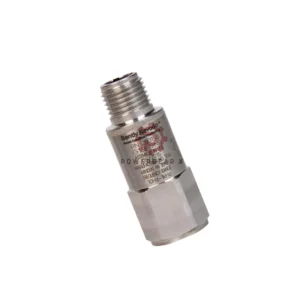

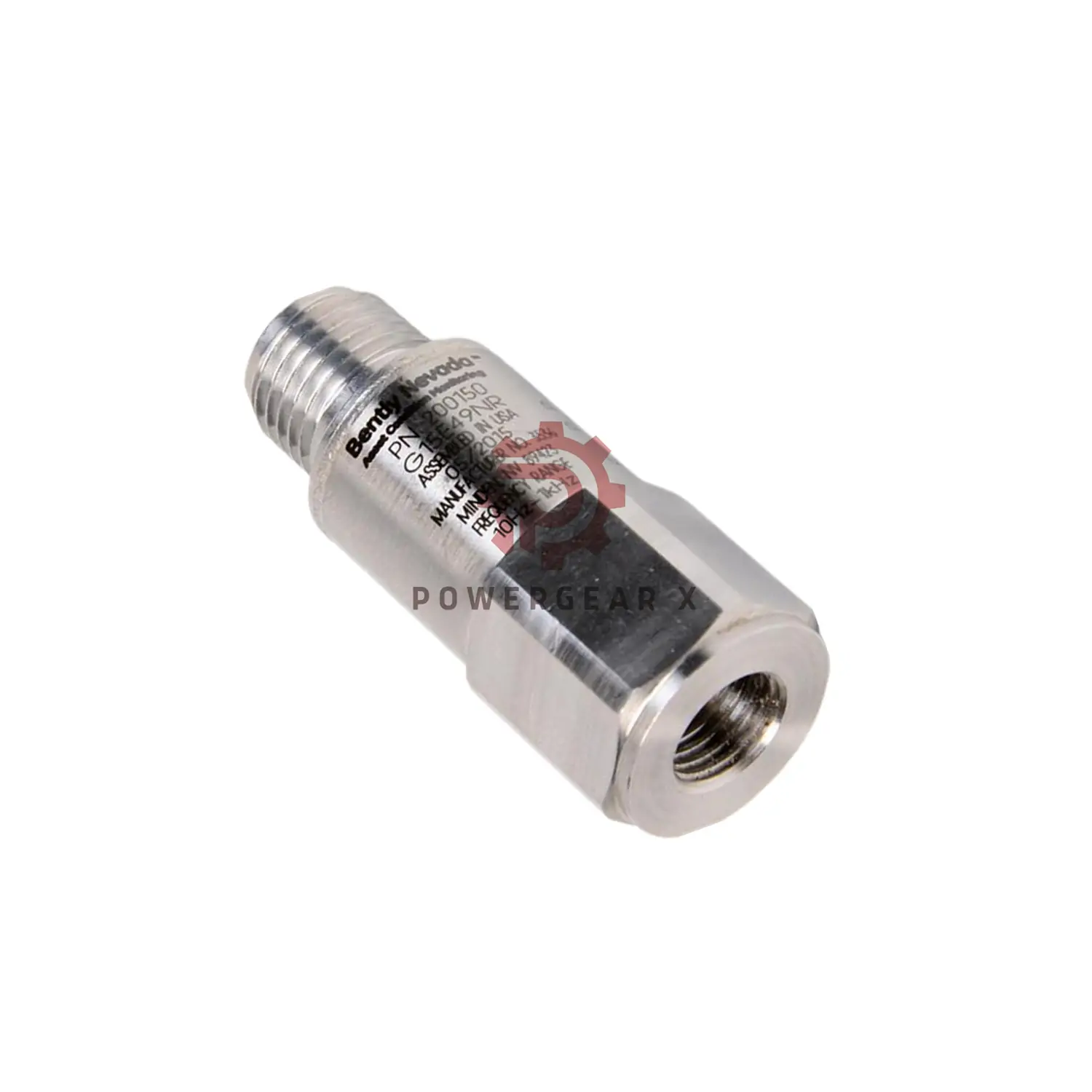

Bently Nevada 200157-17-05 Enveloping Trendmaster Pro Accelerometer

Model Information

• Product Number: 200157-17-05
• Mounting Stud: 3/8-24 to 3/8-16 UNC, 1-3/8 inch hex plate stud
• Certifications: CSA, ATEX, IECEx (Multiple Approvals)

Technical Specifications

• Sensitivity (80 Hz): 10.2 mV/(m/s²) ±12%
• Measurement Range: ±245 m/s² (±25 g)
• Frequency Range: 10 to 10,000 Hz (600 to 600,000 cpm)
• Output Bias Voltage: +2.5 Vdc ±0.23
• Excitation Voltage: 4.7 – 5.5 Vdc
• Current Consumption: Less than 800 µA
• Resonant Frequency: Greater than 20 kHz
• Amplitude Linearity: ±2% for 1 to 10 g peak
• Transverse Sensitivity: Up to 7%
• Settling Time: Maximum 300 ms

Installation Guide

• Ensure clean, flat mounting surface
• Tighten to specified torque
• Allow 24 hours for adhesive cure if used

Compatibility and Applications

• Designed for ProTIM with enveloping channel (-06)
• Monitors roller bearings and cavitation in pumps
• Used in vibration analysis for predictive maintenance
• Helps reduce unplanned downtime by early fault detection
