Enveloping Trendmaster Pro Accelerometer – 200157-10-05

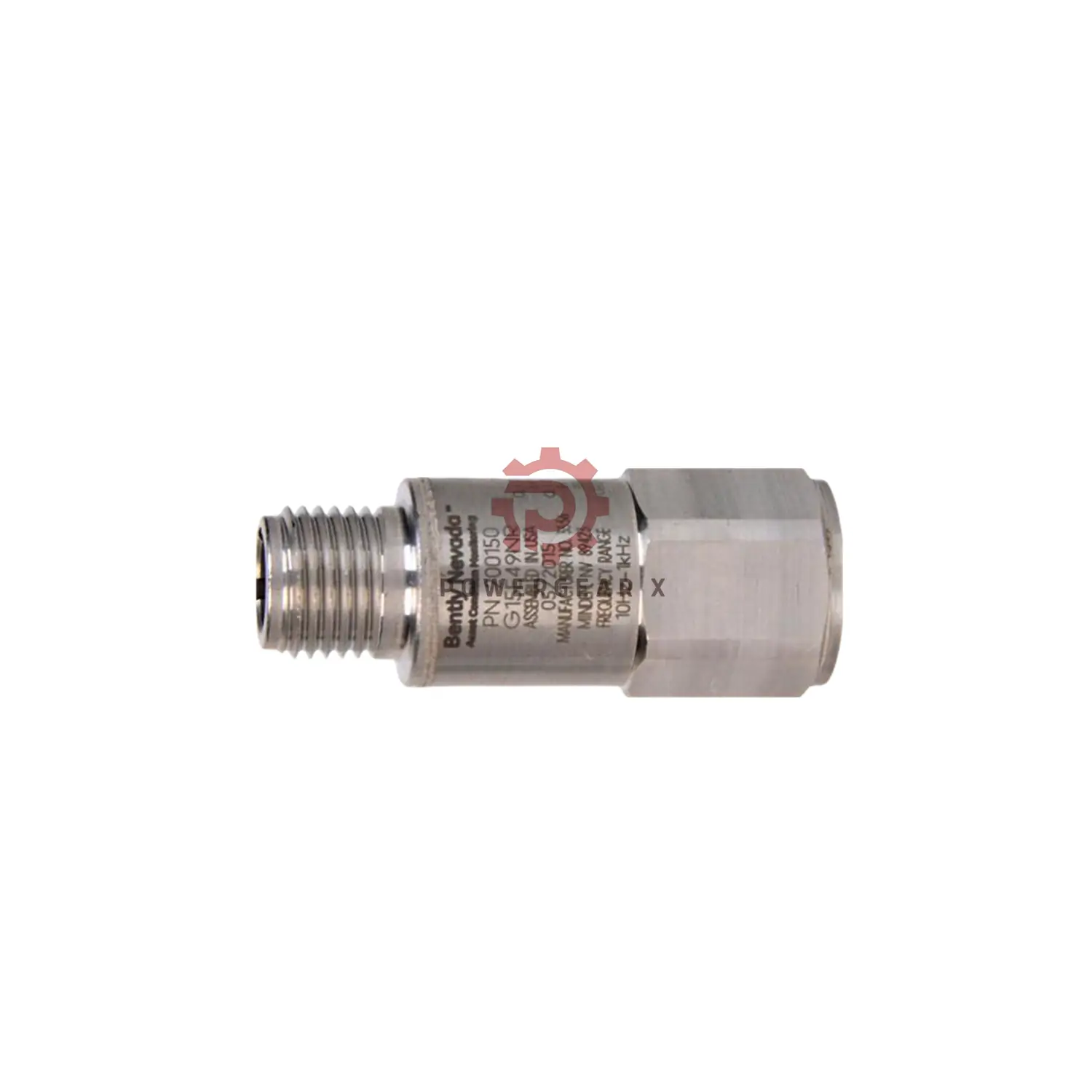

Bently Nevada 200157-10-05 Enveloping Trendmaster Pro Accelerometer

Product Summary

The Bently Nevada 200157-10-05 is an industrial-grade accelerometer designed for use in Trendmaster Pro systems. It supports enveloping detection to identify early mechanical faults in rotating machines. Built with a robust stainless steel body and wide frequency range, it offers reliable condition monitoring in tough environments.

Full Model Breakdown

• Base Model: 200157 = Enveloping Accelerometer
• Mounting Stud Code: 10 = 3/8-24 to 1 NPT, 1-3/8 inch hex stud
• Certification Option: 05 = CSA, ATEX, and IECEx certified

Electrical Specifications

• Sensitivity: 10.2 mV/(m/s²) (100 mV/g)
• Measurement Range: ±245 m/s² (±25 g)
• Output Bias Voltage: +2.5 Vdc ±0.23
• Power Requirement: 4.7 to 5.5 Vdc
• Quiescent Current: Less than 800 µA
• Frequency Range: 10 to 10,000 Hz (600 to 600,000 cpm)
• Resonant Frequency: Greater than 20 kHz
• Linearity: ±2% (1 to 10 g peak)
• Polarity: SIG+ positive vs SIG-

Physical Details

• Size: 17.5 mm hex × 45.7 mm height
• Weight: 58 grams (2.0 oz)
• Mount Thread: 3/8-24 female
• Torque: 2.7 to 6.8 N·m (2 to 5 ft·lb)
• Sensing Type: Ceramic element, shear geometry
• Housing: 316L stainless steel

Installation Guide

• Mount using 1 NPT, 1-3/8 inch hex stud
• Apply specified torque range
• Allow 24-hour cure time for adhesive installation
