Product details
Product Overview

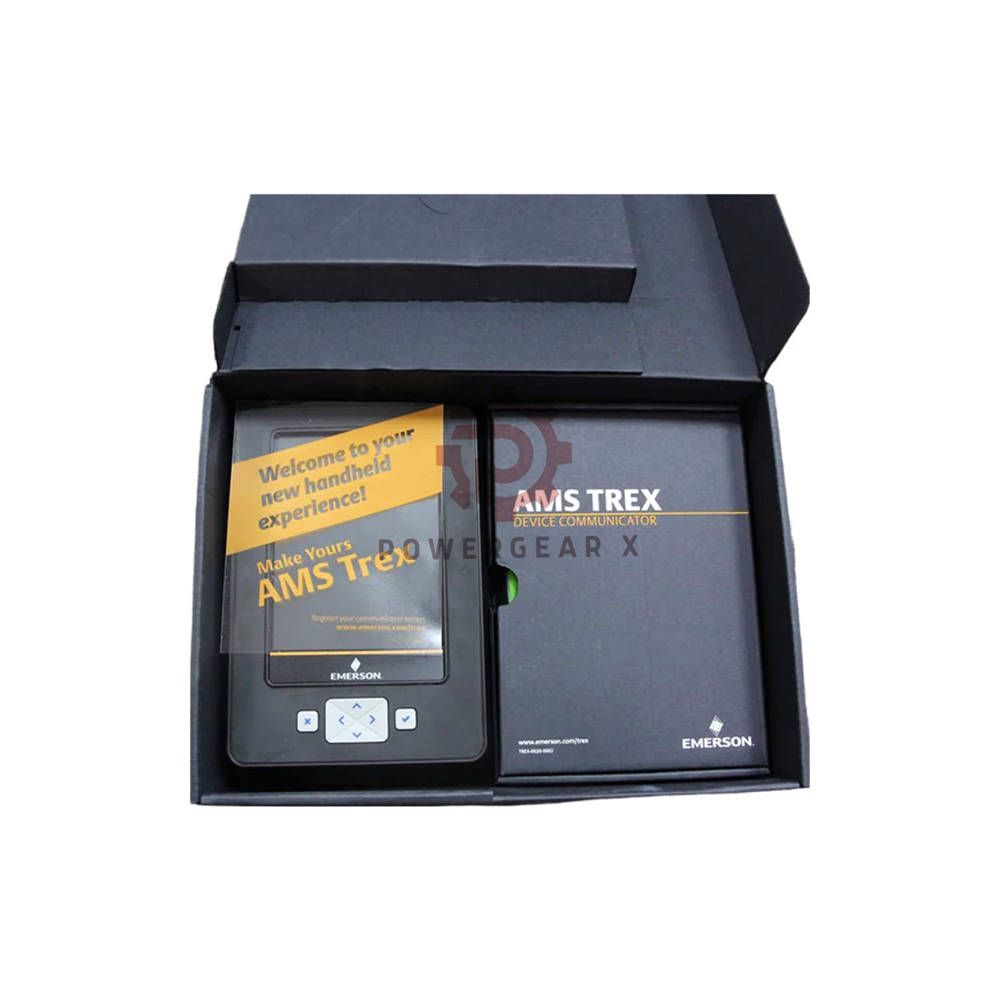

The Emerson TREXCHPNAWP3S AMS Trex Device Communicator is a high-performance handheld tool. It simplifies field device management with powerful HART and wireless capabilities. Use it to configure, troubleshoot, and maintain smart instruments. The robust hardware and intuitive OS ensure fast, reliable data access. This communicator reduces downtime and streamlines your daily workflow.
Configuration & Part Number Tree
- TREX : Base Trex Platform
- CHPNAWP3S : Full Configuration
- C : Device Communicator communication module
- H : HART Application (core protocol)
- P : Rechargeable Li-Ion Power Module
- NA : No Approval (general purpose)
- W : Wireless enabled
- P3 : Standard Support (3 Year)
- S : Carrying Case included
- CHPNAWP3S : Full Configuration
Technical Specifications
- Brand : Emerson
- Model : TREXCHPNAWP3S
- Product Type : AMS Trex Device Communicator
- Microprocessor : 800 MHz ARM Cortex A8/NXP
- RAM : 512 MB DDR3 SDRAM
- Internal Flash : 2GB NAND + 32GB extended flash
- Operating System : Windows Embedded Compact 2013
- Display : 640 x 480 pixel, high-visibility screen
- Communication : HART application module
- Power : Rechargeable Li-Ion module
- Wireless : Integrated radio module
- Frequency Response : Optimized for HART signals
- Resolution : High-precision signal decoding
- Linearity : Excellent linear response
- Sensitivity : Detects low-level HART signals
- Temperature Range : -20°C to +60°C (operating)
- Environmental : Rugged for industrial use
- Noise Immunity : Strong resistance to interference
Installation & Setup
- Power On : Press button, device boots in seconds
- Connect : Attach leads to HART instrument
Wireless : Enable via menu, scan for networks
- Navigate : Use touch screen or keypad
- Ready : Start configuration immediately
Ease of Use & Maintenance
- Fast Boot : Windows Embedded starts quickly
- Touch Interface : Intuitive menu navigation
- Diagnostic LEDs : Quick status at a glance
- Battery : Hot-swappable Li-Ion for long shifts
- Case : Protective carrying case included
- Updates : Simple USB or wireless updates
Compatibility & Connectivity
- HART : Full compatibility with all HART devices
- Wireless : Works with Emerson gateways
- PC : USB for data sync and charging
- Multi-brand : Supports thousands of instruments
- Software : Compatible with AMS Device Manager
Certifications
- Approval : NA (No Approval, general purpose)
- CE Marked : Compliant with EU standards
- RoHS : Hazardous substance free
Package Contents
- 1x TREXCHPNAWP3S communicator unit
- 1x Rechargeable Li-Ion power module
- 1x Carrying case (suffix S)
- 1x USB cable and power adapter
- 1x HART lead set
- 1x Quick start guide
Warranty & Support
- Warranty : 12 months against defects
- Support : P3 plan – 3 years standard support
- Extended : Optional longer terms available
Shipping Information
- Couriers : FedEx, UPS, DHL
- Tracking : Provided upon dispatch
- Global : Reliable worldwide shipping
Typical Applications
- Configuration : Set up HART transmitters
- Troubleshooting : Diagnose loop issues
- Maintenance : Perform device checks
- Wireless : Commission wireless HART networks
- Verification : Validate instrument parameters
Diagnostic Capabilities
- Live Data : View real-time process variables
- Alarms : Instant error and warning alerts
- Trending : Monitor signal patterns
- Health : Check sensor and electronics status
- Loop Test : Verify loop integrity
- Logging : Store diagnostic sessions
Frequently Asked Questions
- Q: Is this compatible with older HART devices?
- A: Yes, it supports all HART versions and most legacy instruments.
- Q: What is the battery life?
- A: The Li-Ion module lasts over 8 hours of active use.
- Q: Can I use it in hazardous areas?
- A: This NA model is for general purpose. Ask about IS versions.
- Q: Does the case come with it?
- A: Yes, suffix S means a rugged carrying case is included.
- Q: Will it work with non-Emerson devices?
- A: Absolutely, it reads DD files from all major HART manufacturers.
- Q: How do I update the software?
- A: Easily via USB or wireless connection to AMS Suite.
