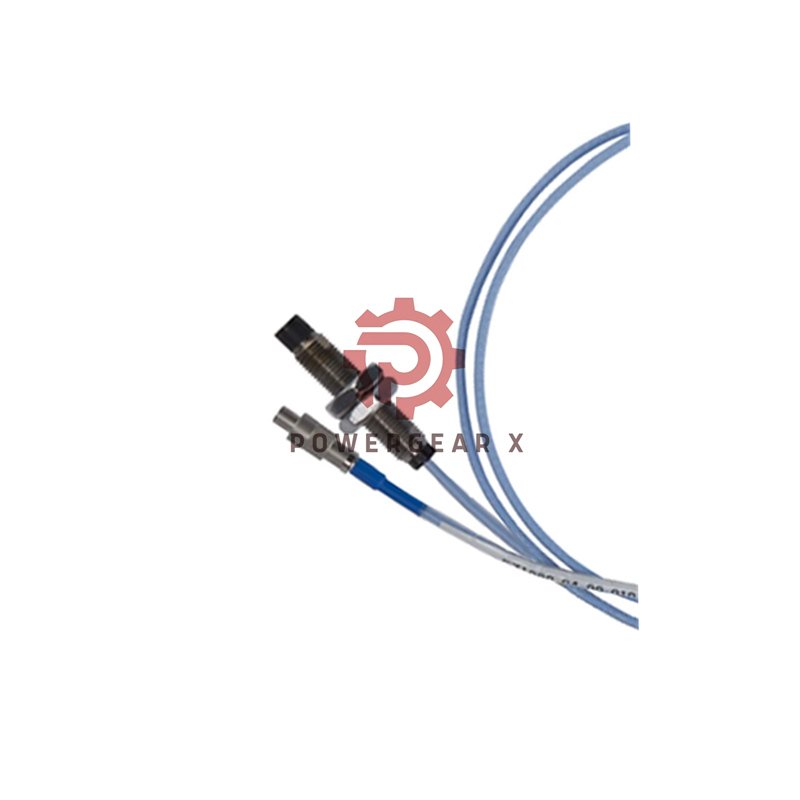

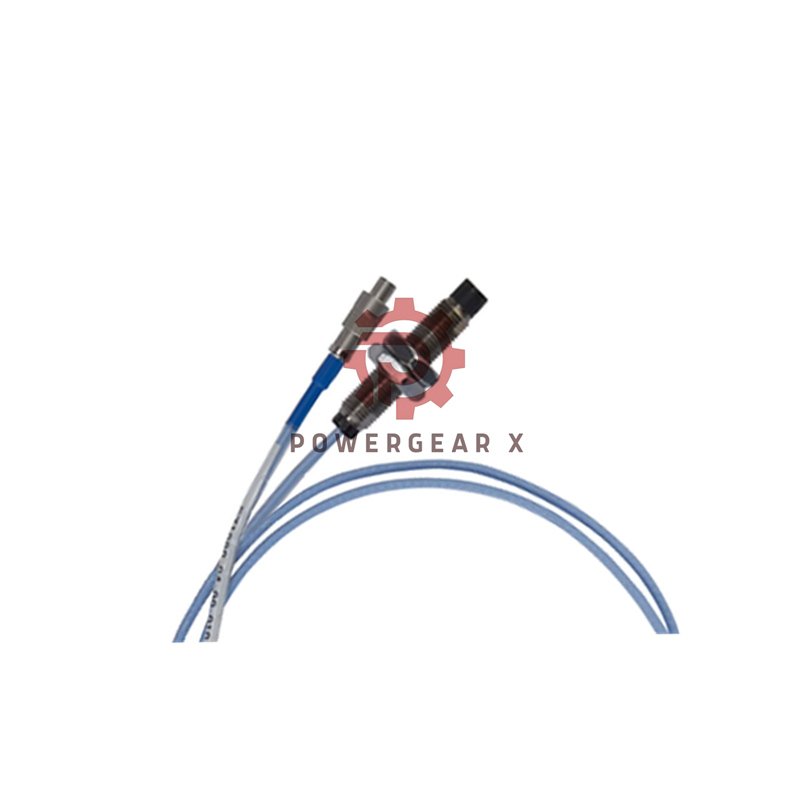

Emerson EZ1081-RM Armored Eddy Current Sensor

The EZ1081-RM combines advanced reverse mount design with armored cable protection. This 8mm sensor delivers exceptional performance in harsh industrial environments. The EZ1081-RM provides reliable shaft monitoring where durability matters most.

Critical Performance Data

• Brand: Emerson | Model: EZ1081-RM-00-010
• Measurement Range: 2.0mm (0.08 inches) total span
• Initial Gap Setting: 0.5mm ±0.1mm for optimal operation
• Sensitivity Options: 7.87 V/mm or 8.0 V/mm ±5%
• Non-linearity Error: <±1% of full scale range
• Frequency Response: DC to 15 kHz (-3dB point)
• Temperature Drift: <0.1%/°C typical performance
• Rise Time: 50μs for 10-90% step response

Enhanced Protection Features

• Heavy-duty armored cable construction
• IP67 standard (IP68 with optional testing)
• Stainless steel braided cable protection
• Crush resistance: 2000N cable rating
• Chemical resistant FEP outer jacket
• Abrasion resistant armor coating
• EMI/RFI shielded for signal integrity

Mechanical Specifications

• Sensor Diameter: 8mm probe tip
• Thread Size: M10x1.0 metric fine pitch
• Case Material: 316 stainless steel
• Tip Material: Glass-filled PEEK composite
• Cable Type: Armored FEP, 1.0 meter length
• Connector: Nickel-plated brass industrial
• Weight: 150 grams with armored cable

Environmental Ratings

• Operating Temperature: -35°C to +180°C
• Storage Temperature: -40°C to +200°C
• Thermal Shock: 100 cycles certified
• Vibration: 20g RMS, 10-2000 Hz range
• Shock Survival: 100g, 11ms duration
• Humidity: 0-100% condensing allowed
• Altitude: 0-4000 meters above sea level

Product Configuration

• Complete Model: EZ1081-RM-00-010
• Model Breakdown Structure:
  • EZ1081 – Armored 8mm Sensor Series
  • RM – Reverse Mount Configuration
  • 00 – Zero Unthreaded Length
  • 010 – 1.0 Meter Cable
• Mounting: Reverse installation capability
• Warranty Coverage: 12 months full protection
• Global Shipping: FedEx, UPS, DHL available

Application Requirements

• Target Material: Ferromagnetic steels only
• Minimum Target: 14mm diameter absolute
• Recommended Target: 20mm diameter optimal
• Shaft Size: 25mm minimum recommended
• Surface Speed: Up to 80 m/s maximum
• Target Runout: Must be under 0.2mm
• Surface Finish: 0.4-1.6 μm Ra required

Safety & Compliance

• ATEX/IECEx Hazardous Area Certified
• CE Marked for European markets
• UL/CSA Approved for North America
• SIL 2 Capable per IEC 61508
• DNV GL Marine Classification
• RoHS Compliant construction
• REACH Environmental standards

Expert Questions Answered

• What advantages does armored cable provide?

Armored cable resists crushing, cutting, and abrasion in tough plant environments.

• Can this sensor withstand oil immersion?

Yes, the IP68 rating allows continuous operation while fully submerged in oil.

• What is the maximum cable length available?

Armored cables extend to 8 meters maximum without signal amplifiers.

• How does reverse mount help installation?

It allows mounting from behind panels where front access is limited.

• What maintenance does the sensor require?

Only periodic visual inspection and keeping the tip clean from debris.

What You Receive

• 1 x Emerson EZ1081-RM-00-010 Sensor
• 1 x 1-meter armored FEP cable assembly
• Installation washers and mounting hardware
• 12-month manufacturer warranty document
