Emerson EZ1081 Armored Eddy Current Sensor | EZ1081-03-00-010

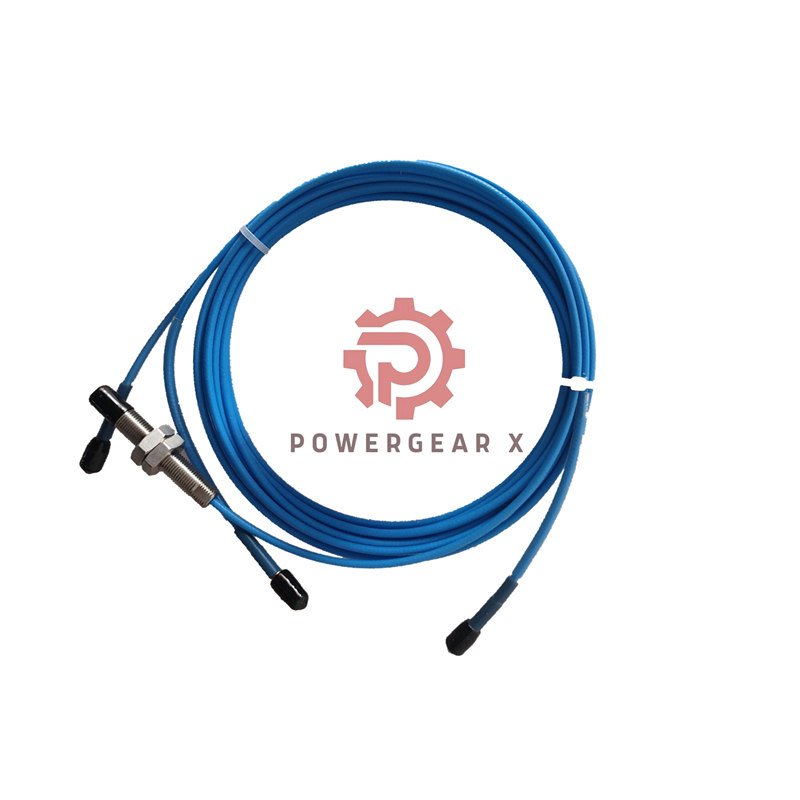

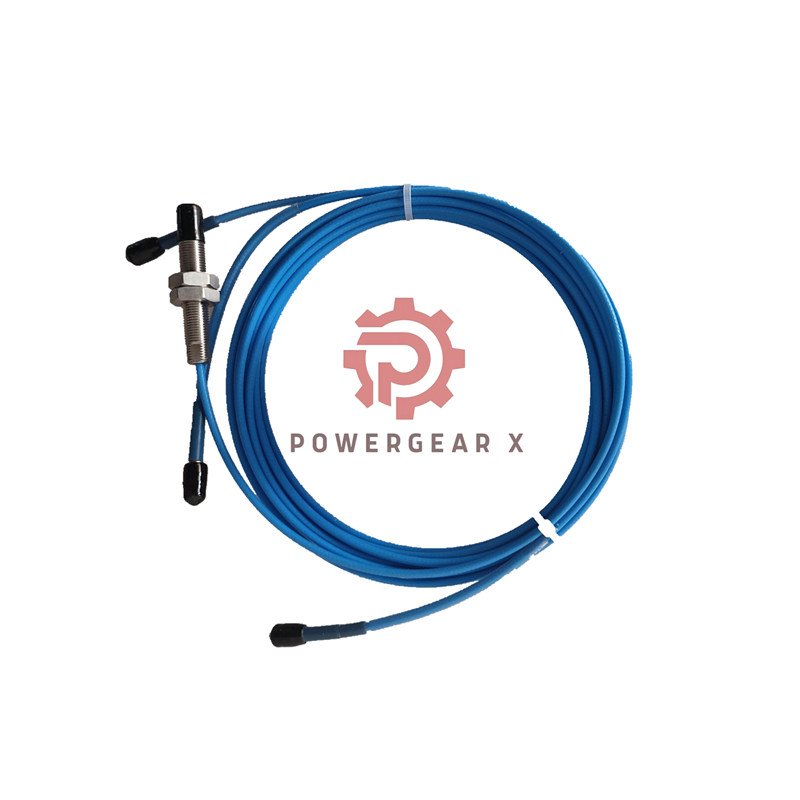

Emerson EZ1081 Armored Eddy Current Sensor

The EZ1081 armored eddy current sensor delivers precision measurement for heavy-duty industrial applications. This robust sensor features protective armor and compact design for challenging environments.

Essential Technical Specifications

• Brand: Emerson
• Model: EZ1081-03-00-010
• Sensor Type: 8mm Eddy Current
• Measurement Range: 2.0 mm (80 mils)
• Initial Gap: 0.5 mm (20 mils)
• Sensitivity: 7.87 V/mm or 8.0 V/mm
• Accuracy: ±0.025 mm linearity
• Temperature Range: -35°C to +180°C
• IP Rating: IP67/IP68 protection
• Pressure Rating: 10000 hpa maximum

Product Features & Benefits

• Heavy-duty armored cable for extra protection
• Compact 30mm sleeve for space-limited installations
• M10x1 thread for easy mounting and secure fit
• No unthreaded section for maximum space efficiency
• 1-meter integrated cable for immediate use
• Glass-reinforced PEEK tip for durability
• Stainless steel case for corrosion resistance
• FEP cable material for high temperature operation

Measurement Capabilities

• Target Materials: AISI 4140, 1035, 4340 steel
• Minimum Target: 14mm diameter required
• Recommended Target: 20mm diameter optimal
• Shaft Diameter: 20mm minimum size
• Recommended Shaft: 25mm for best performance
• Applications: Turbines, compressors, pumps
• Measurements: Displacement, vibration, position

Model Number Breakdown

• EZ1081 – 8mm Eddy Current Sensor Series
• 03 – 30mm Case Length
• 00 – 0mm Unthreaded Length
• 010 – 1.0 Meter Cable Length
• Additional Features: M10x1 Thread, Armored Cable

Environmental Specifications

• Operating Temperature: -35°C to +180°C
• Cable Temperature: -35°C to +150°C
• Weather Protection: IP67 standard, IP68 optional
• Pressure Sealing: 10000 hpa capability
• Hazardous Areas: ATEX, IECEx certified
• Material: Stainless steel with PEEK tip
• Weight: Approximately 100 grams

Safety Certifications

• CE Marking for European markets
• ATEX for explosive atmospheres
• IECEx international certification
• CSA for North America
• UL safety standards compliance
• CCC for China market access
• DNV GL marine certification
• SIL 2 capable for safety systems

Package Contents

• One EZ1081 armored eddy current sensor
• 1-meter integrated armored cable
• Installation and operation manual
• Compliance documentation
• 12-month warranty
• Shipping via FedEx, UPS, or DHL

Technical Questions & Answers

• What makes the EZ1081 different from standard sensors?
• The EZ1081 features armored cable protection for harsh environments
• Can this sensor measure small diameter shafts?
• Yes, it works with shafts as small as 20mm diameter
• What temperature can the armored cable withstand?
• The cable operates from -35°C to +150°C continuously
• How does the M10x1 thread help installation?
• This metric thread provides secure mounting in standard fittings
• What industries use the EZ1081 sensor most?
• Power generation, oil and gas, and heavy machinery industries
