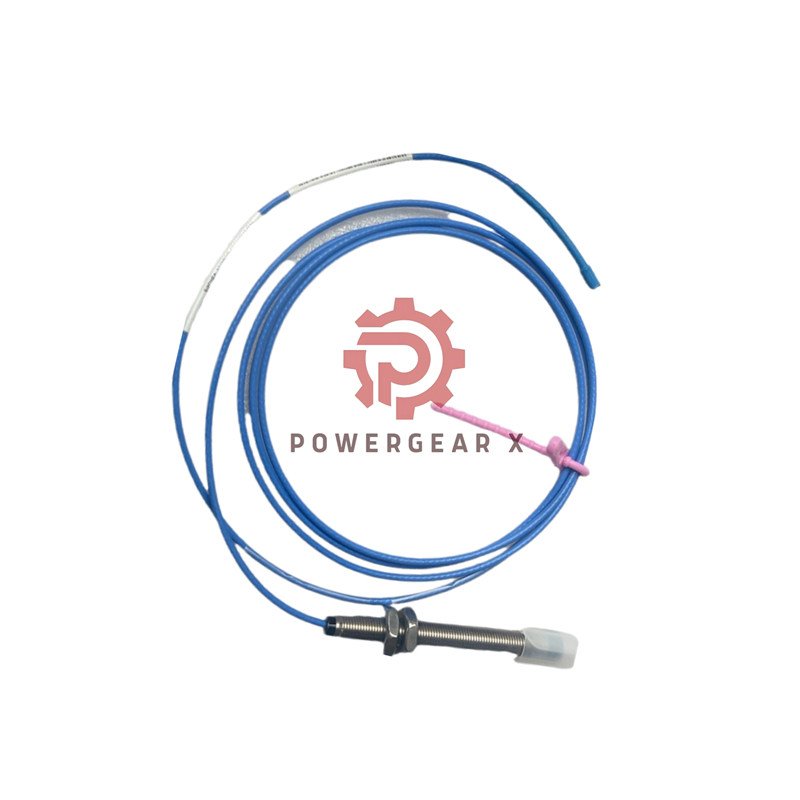

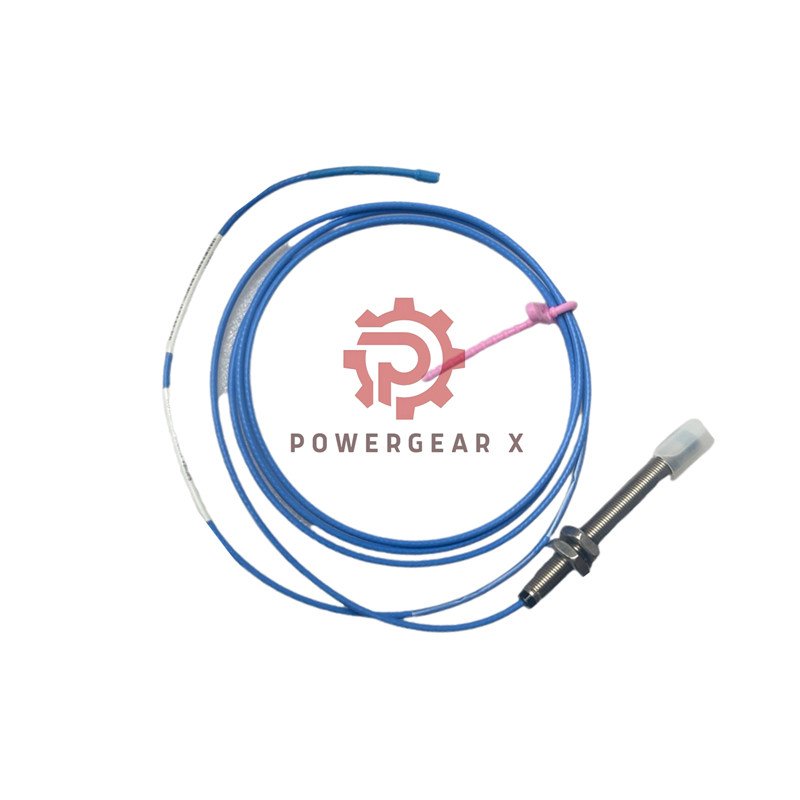

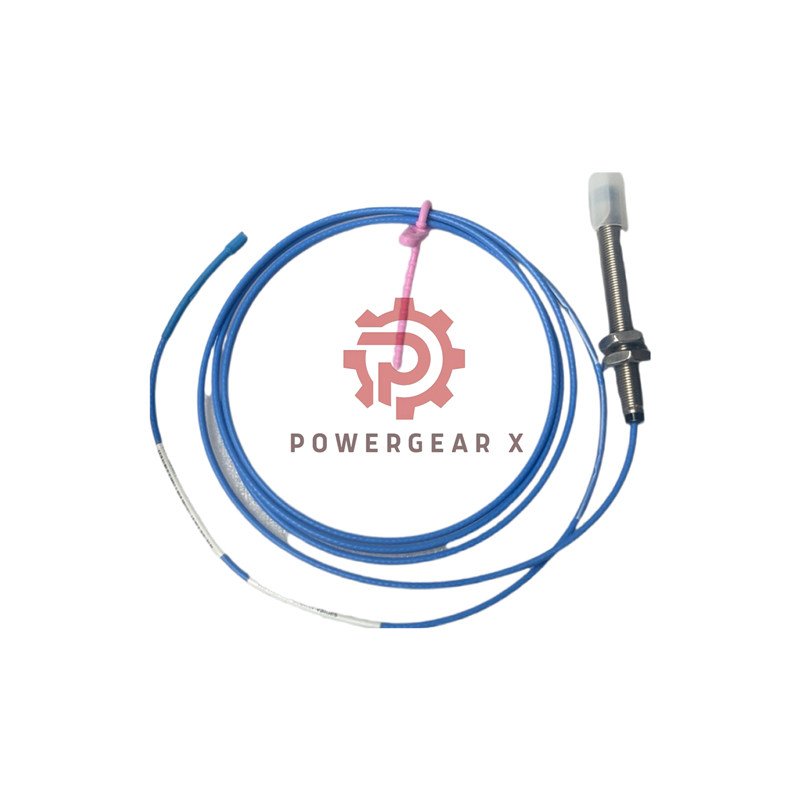

Emerson EZ1080 Compact Eddy Current Sensor
The EZ1080-12-00-010 provides precise non-contact measurement for rotating machinery. This 8mm sensor delivers reliable performance in demanding environments. Manufacturers choose the EZ1080 for critical turbine and compressor applications.
Key Performance Advantages
- Wide temperature operation from -35°C to +180°C
- High pressure resistance up to 10000 hPa at 120°C
- Dual output options: API (7.87 V/mm) or ISO (8 V/mm)
- Excellent linearity with ±0.025 mm deviation
- Rugged stainless steel construction
Detailed Specifications
- Sensor Diameter: 8mm
- Linear Range: 2.0 mm (0.08 inches)
- Initial Gap: 0.5 mm (0.02 inches)
- Sensitivity: 200 mV/mil ±5%
- Frequency Response: 0 to 10 kHz
- Target Material: Carbon steel 4140, 1035
- Minimum Target: 14mm diameter
- Connector Type: Standard industrial M12
- Cable Type: FEP high-temperature
Environmental Protection
- IP67 rated for dust and water immersion
- Optional IP68 with DOC-TEST certification
- Hazardous area approvals: ATEX, IECEx, CSA
- Temperature classification: T4, T6 available
- Marine certification: DNV GL approved
Ordering Configuration Guide
- Base Model: EZ1080 (8mm sensor)
- Case Length: 12 (120mm sleeve)
- Unthreaded: 00 (0mm unthreaded section)
- Cable Length: 010 (1.0 meter cable)
- Thread Type: M10x1 standard metric
- Armor Option: No armor standard
Installation Requirements
- Maintain 0.5mm air gap to target surface
- Use recommended shaft materials only
- Ensure minimum 25mm shaft diameter
- Keep sensor away from magnetic fields
- Verify proper grounding for signal quality
Package Contents
- 1 x EZ1080-12-00-010 Sensor Unit
- 1 x Installation Instruction Manual
- 1 x Protective Shipping Container
- 1 x Specification Sheet
Shipping & Delivery
- Global express shipping available
- Carriers: FedEx, UPS, DHL
- Standard delivery: 3-5 business days
- Tracking provided for all orders
Technical Support Questions
- What is the maximum cable length supported?
The system supports up to 5 meters without signal loss.
- Can I use this sensor in oil environments?
Yes, with IP68 rating it operates fully submerged in oil.
- What is the sensor’s temperature limit?
The sensor body withstands temperatures up to 180°C.
- How do I select API vs ISO output?
This selection is made at the converter or readout unit.
- What is the sensor’s warranty period?
All sensors include 12 months manufacturer warranty.
Need application engineering support? Contact sales@powergearx.com or +86 18030005825 for immediate assistance.
