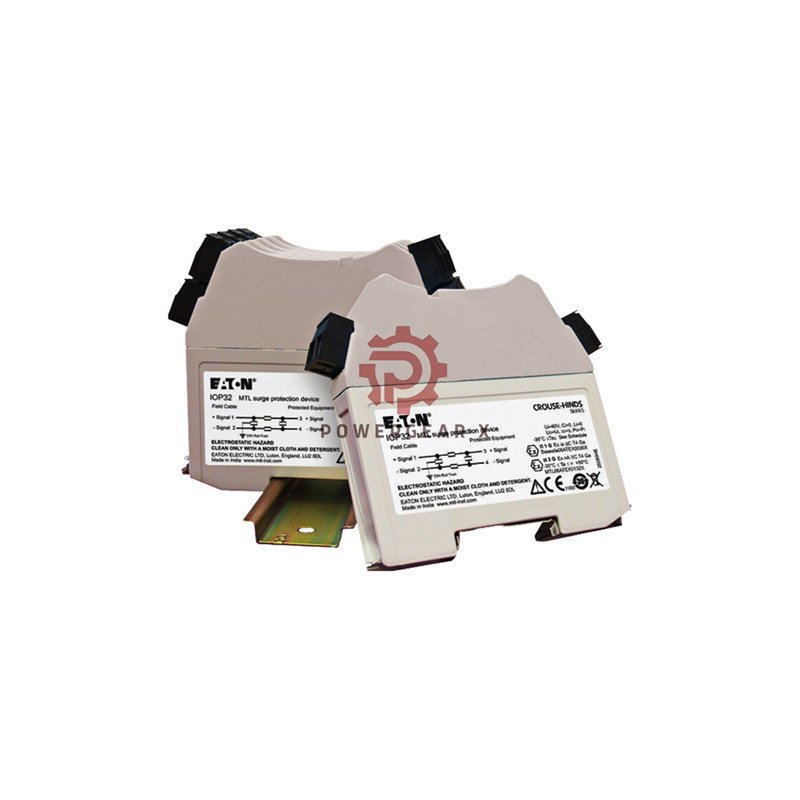

Eaton MTL IOP32 Series Surge Protectors
Protect your digital and analog I/O signals. The Eaton MTL IOP range offers cost-effective surge protection. It uses a hybrid design for high reliability. These modules are compact and easy to install. They automatically reset after a surge event. The series includes models for standard and high-current applications.
Technical Specifications
- Brand: Eaton MTL
- Model Range: IOP32, IOP32D, IOP HC32, IOP-AC
- Surge Current: 20kA per line (8/20µs)
- Load Current: 0.675A (5A for IOP HC32)
- Loop Resistance: 0-4 ohm (varies by model)
- Bandwidth: 6.5 MHz
- Response Time: <1ns
- Voltage Protection: <38V @ 1kV/µs
- Operating Temperature: -40°C to +80°C
- Humidity Range: 5-95% RH non-condensing
- Wire Size: 2.5mm² (12 AWG)
- Safety Certifications: ATEX, FM, UL94-V0
Packaging & Shipping
Each unit includes terminal connectors. Shipped via FedEx, UPS, or DHL. 12-month warranty coverage. Replacement service available.
Frequently Asked Questions
Q: What is the difference between IOP32 and IOP32D?
A: IOP32 protects one loop (2 wires), IOP32D protects two loops (4 wires).
Q: Can I use IOP HC32 for AC circuits?
A: No, use IOP-AC model for AC applications.
Q: What is the warranty period?
A: 10 years for IOP series products.
