Product details

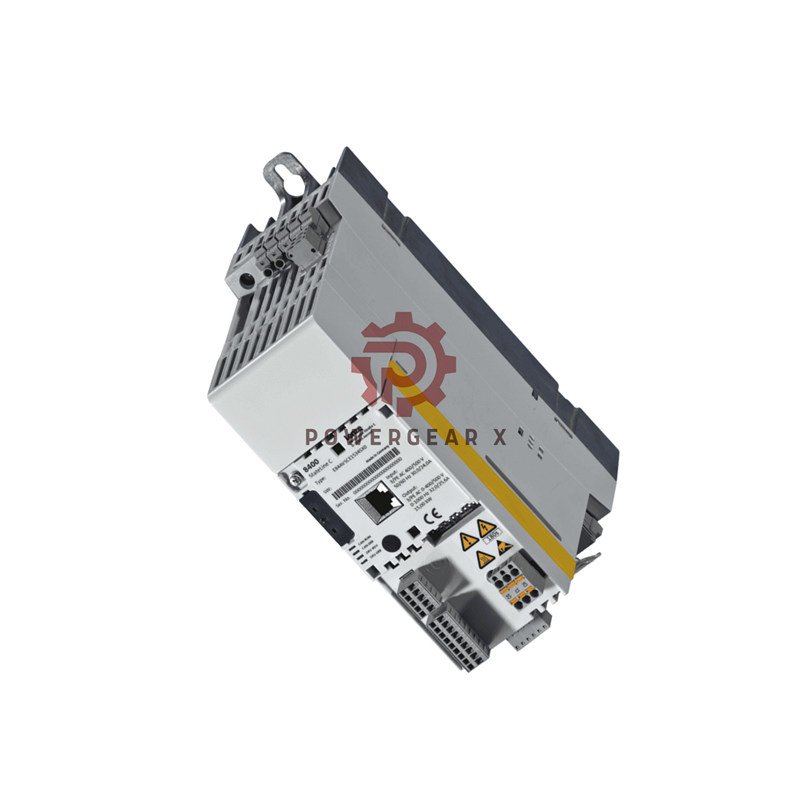

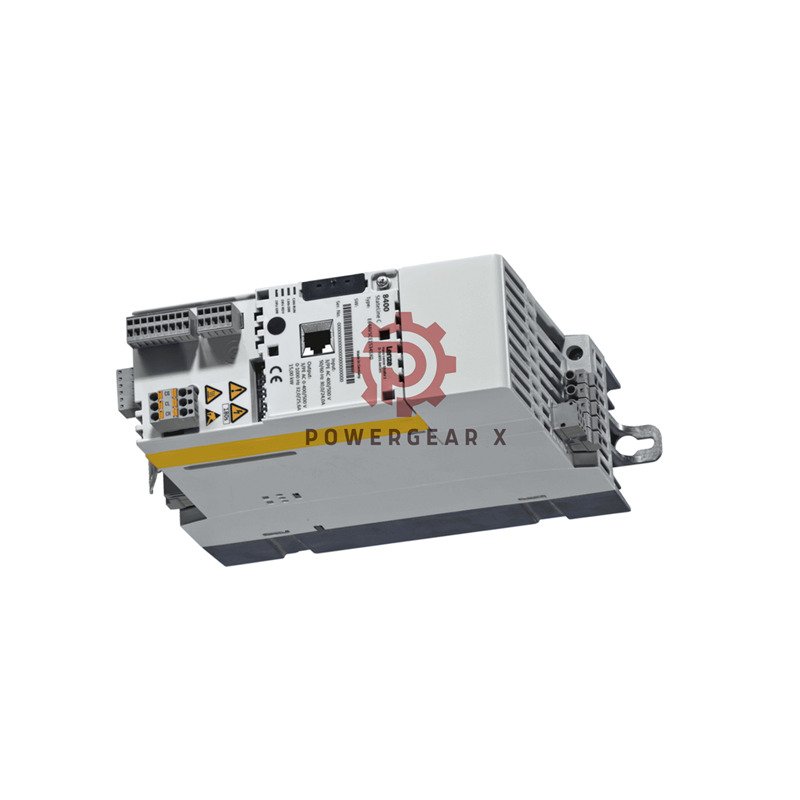

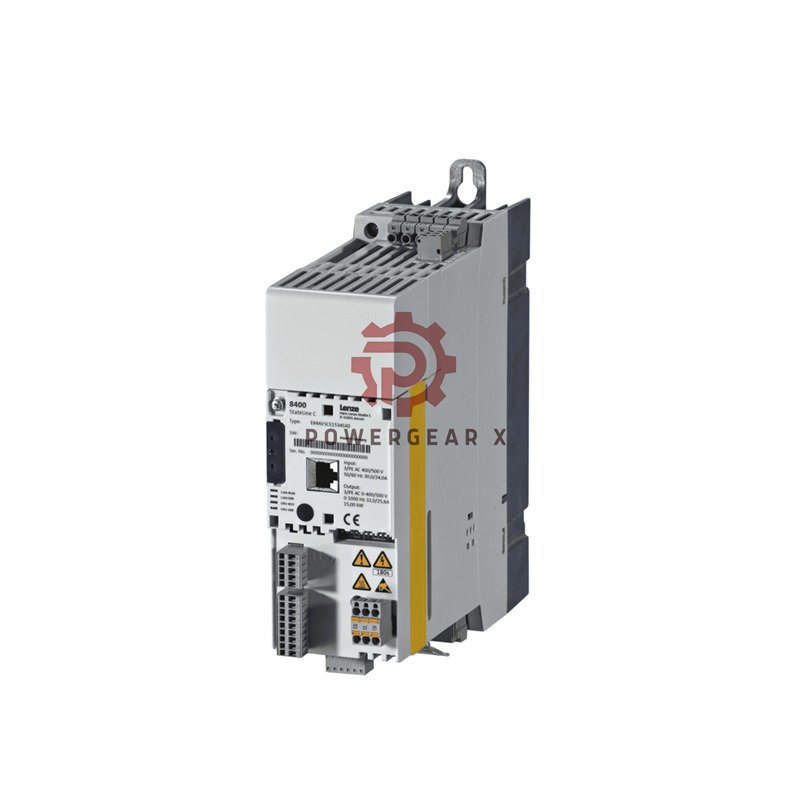

Lenze E84AVHCE3714SX0 Frequency Inverter Drive
The Lenze E84AVHCE3714SX0 from the 8400 HighLine series is built for precision and flexibility.
It provides smooth motion control, high energy efficiency, and simple setup for advanced automation tasks.
Main Highlights
- Compact 0.37 kW (0.5 HP) inverter for 400V AC systems
- Smart point-to-point positioning up to 15 target points
- Sensorless vector control with smooth torque performance
- PID control and DC brake function for fast stopping
- 12-month warranty and full technical support by Powergear X Automation
Technical Specifications
- Model: E84AVHCE3714SX0
- Brand: Lenze
- Series: 8400 HighLine
- Power: 0.37 kW / 0.5 HP
- Input: 3-Phase, 400–500 V AC, 50/60 Hz
- Output Frequency: 0–599 Hz
- Rated Current: 1.3 A
- Efficiency: >96%
- Protection Rating: IP20
- Cooling Type: Air-cooled
- Mounting: Cabinet installation
- Dimensions: 215 × 70 × 199 mm
- Weight: 1.3 kg
Performance Features
- Integrated brake chopper and flying restart circuit
- Energy-saving “VFC eco” mode reduces power use
- Servo control for asynchronous motors
- Overload current capacity: 150% (60s) / 200% (3s)
- Operates between -10°C and +55°C with derating above 45°C
Interfaces & Functions
- HTL incremental encoder (200 kHz)
- CANopen onboard with DIP switch
- EtherCAT, Ethernet/IP, PROFIBUS, PROFINET slots
- 7 digital inputs / 4 digital outputs
- 2 analog inputs / 2 analog outputs
- Relay and PTC/thermal input protection
- External 24V control supply supported
Application Examples
- Dosing and feeding drives
- Palletisers and conveyor units
- Cross-cutters and rotary tables
- Lifts and hoisting systems
- Packaging and light automation setups
Shipping & Support
- Worldwide delivery via FedEx, UPS, and DHL
- All drives fully tested before shipping
- 12-month warranty on every purchase
- Fast technical support from Powergear X Automation
FAQ
- Q1: Can I connect this inverter to synchronous motors?A1: Yes, the E84AVHCE3714SX0 supports sensorless control of synchronous motors (SLPSM).
- Q2: What is the advantage of the “VFC eco” function?A2: It optimizes energy use based on load, cutting power consumption in light-load conditions.
- Q3: Is feedback required for accurate positioning?A3: No, it can position with or without feedback, depending on your accuracy needs.
- Q4: How can I extend the inverter’s service life?A4: Keep ambient temperature below 45°C and ensure adequate airflow in the cabinet.
- Q5: Which communication protocols are compatible?A5: It supports EtherCAT, PROFINET, PROFIBUS, and Ethernet/IP modules for integration.
