Product details

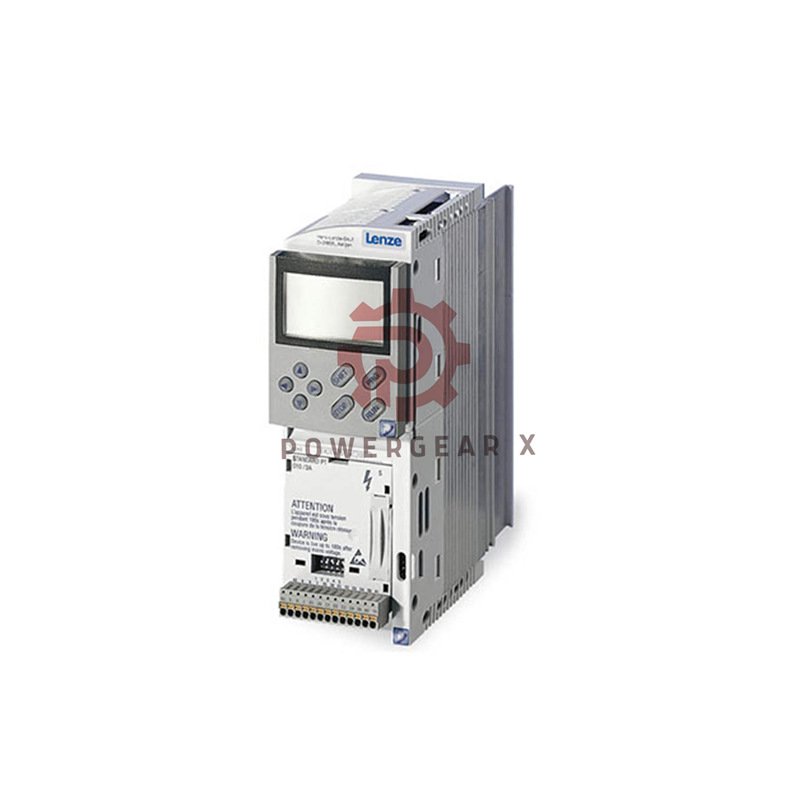

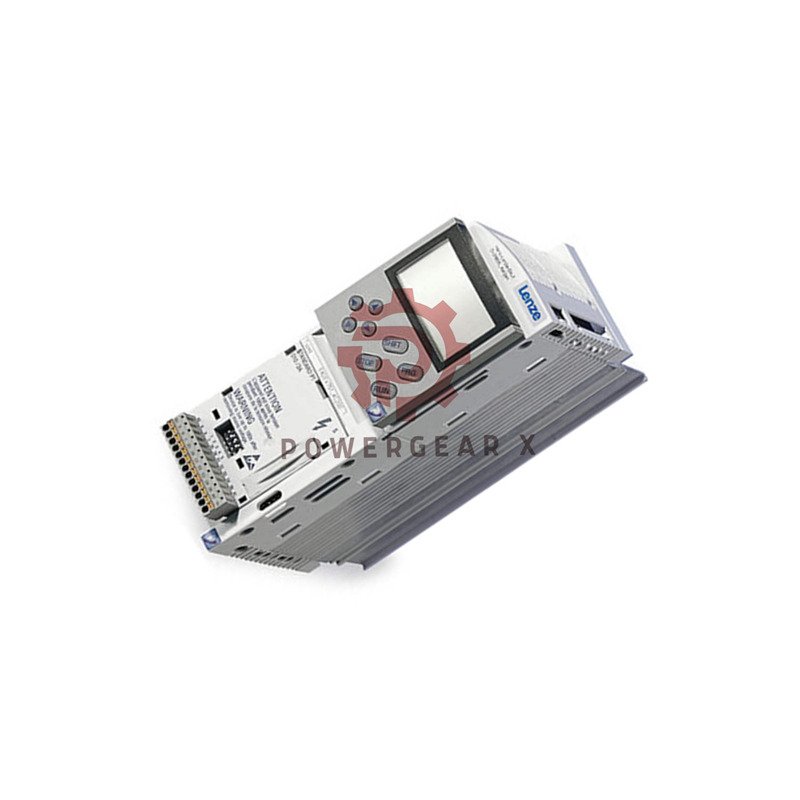

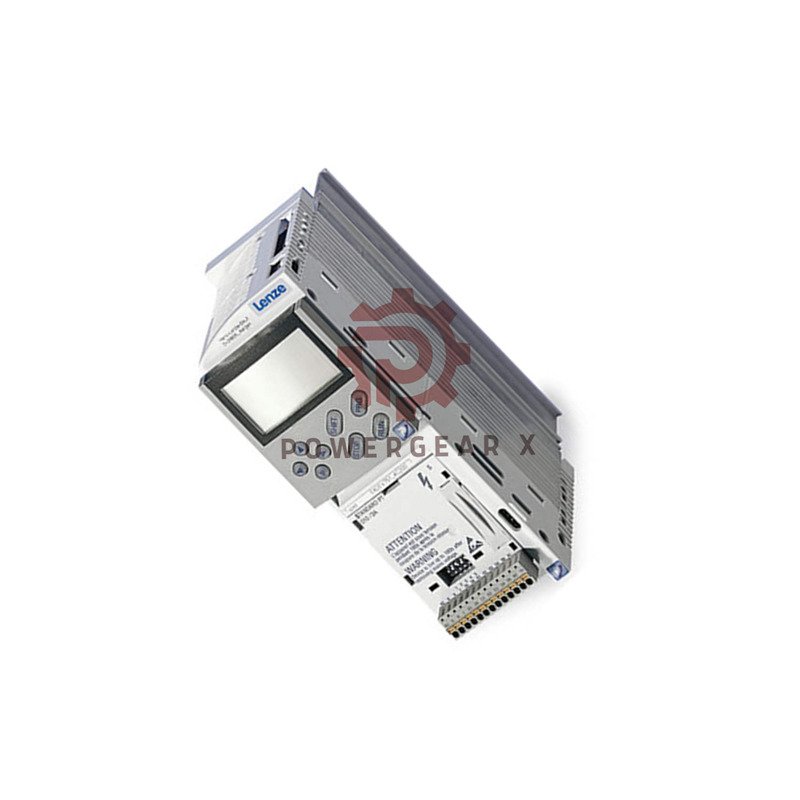

Lenze E82EV552K4C200 Frequency Inverter & Base Controller
This Lenze Series 8200 inverter controls motor speed precisely. It works with 3-phase 400V AC power. The unit supports vector control for smooth operation. It is ideal for industrial automation applications.
Product Highlights
- Powerful 5.5 kW Drive: Controls motors up to 5.5 kW at 400V.
- Advanced Vector Control: Provides high torque and accurate speed regulation.
- Wide Voltage Range: Accepts 320-550V AC or 450-775V DC input.
- Compact Design: Saves valuable space in control cabinets.
- Flexible Installation: Operates in temperatures from -10°C to +55°C.
- Versatile Power Options: Works with both AC mains and DC bus supplies.
- Easy Integration: Part of the modular Lenze 8200 series ecosystem.
Complete Technical Details
Basic Information
- Manufacturer: Lenze
- Part Number: E82EV552K4C200
- Series: 8200
- Product Type: Frequency Inverter / Base Controller
- Protection Rating: IP20 (for indoor use)
- Author: Powergear X Automation
Electrical Specifications
- Rated Mains Voltage: 400V AC, 3-phase
- Input Voltage Range: 320-550V AC
- DC Supply Option: 450-775V DC
- Frequency Range: 45-65 Hz
- Typical Motor Power: 5.5 kW at 400V
- Control Method: Vector control supported
- EMC Filter: Not included (can be added separately)
Environmental Specifications
- Operating Temperature: -10°C to +55°C
- Storage Temperature: -25°C to +60°C
- Mounting Position: Wall or panel mounting
- Cooling Method: Natural convection or fan cooling
Common Applications
- Conveyor belt speed control systems
- Pump and fan drive applications
- Packaging machinery speed regulation
- Material handling equipment
- Textile machinery drives
- Food processing equipment
Warranty & Shipping Details
This product includes a 12-month warranty against manufacturing defects. We ship internationally using FedEx, UPS, and DHL express services. Tracking information is provided immediately after dispatch.
Expert Questions & Answers
Q: What motors are compatible with this inverter?
A: It works with standard 3-phase asynchronous motors up to 5.5 kW. Ensure the motor voltage matches the inverter output specifications.
Q: Can I use this inverter without an EMC filter?
A: Yes, but for compliance with electromagnetic compatibility standards in industrial environments, an external EMC filter is recommended.
Q: How do I program this frequency inverter?
A>Programming can be done via the built-in keypad, or using Lenze’s engineering software (like Lenze Engineer) connected through the communication ports.
Q: What’s the difference between this and a standard VFD?
A>This unit includes vector control capabilities, which provide better low-speed torque and dynamic response compared to basic V/Hz controlled drives.
Q: Can I connect multiple motors to one inverter?
A>While possible for some applications, it’s generally not recommended. Each motor should have its own protection and the combined current must not exceed the inverter rating.
Contact for Technical Support: sales@powergearx.com | +86 18030005825
