Durable Leuze K-D M12A-4P-5M-PVC 5m PVC M12 Axial Connector

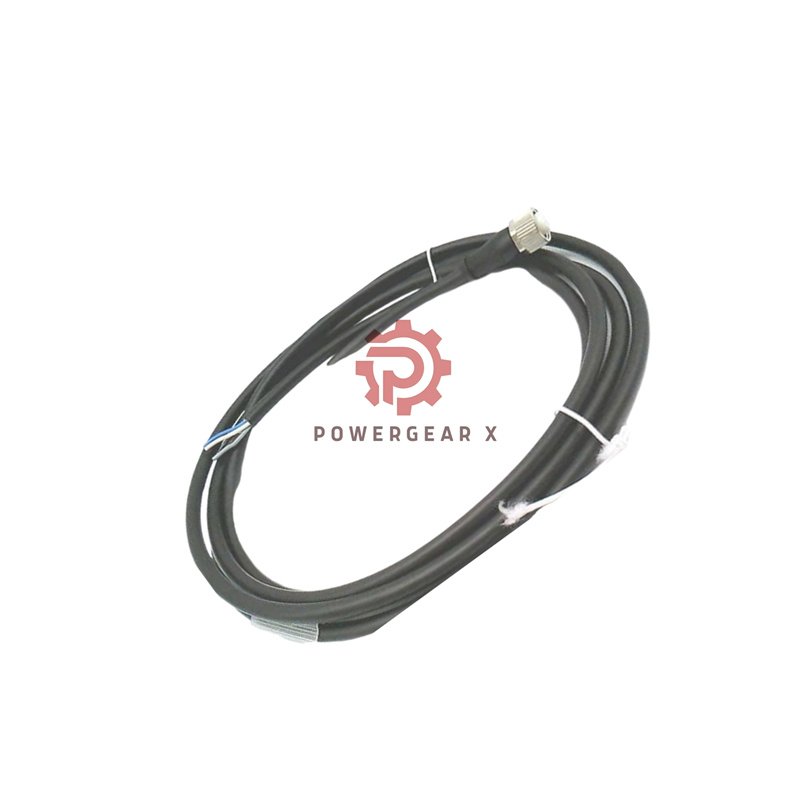

Leuze K-D M12A-4P-5M-PVC Connection Cable

The Leuze K-D M12A-4P-5M-PVC is a 4-pin axial M12 connection cable engineered for precision and durability.
Its 5-meter PVC jacket ensures flexibility, while the strong nickel-plated screw lock guarantees reliable signal transmission in industrial environments.
Developed by Powergear X Automation, this cable is ideal for sensors, actuators, and control applications.

Key Electrical Parameters

• Operating Voltage: ≤250 VAC/DC
• Rated Current: ≤4 A per contact
• Insulation Category: I, IEC 60664-1 compliant
• Contact Resistance: ≤5 mΩ
• Dielectric Strength: ≥1.5 kV

Mechanical Characteristics

• Connector Type: M12A axial socket
• Number of Pins: 4
• Cable Length: 5 meters
• Conductor Cross-section: 0.34 mm²
• Cable Diameter: 4.7 – 5.7 mm
• Locking Type: Nickel-plated screw fitting, self-locking (0.6 Nm)

Environmental Tolerance

• Fixed Installation: -30°C to +70°C
• Flexible Use: -5°C to +70°C
• Protection Rating: IP67 when mated
• Bending Radius: ≥10× sheath diameter

Type Code Structure

• K-D: Connection cable with connector
  • M12A: M12 axial connector
    • 4P: Four-pin configuration
      • 5M: Cable length of 5 meters
        • PVC: Polyvinyl chloride insulation

Performance Highlights

• Axial M12 connector saves space and ensures neat installations
• Durable PVC sheath resists oil and mechanical wear
• Excellent vibration resistance for mobile applications
• Stable signal performance over long distances
• Ideal for robotics, sensors, and PLC connections

Warranty & Shipping

• Comes with a 12-month warranty from Powergear X Automation
• Fast global delivery via
  FedEx,
  UPS, or
  DHL

FAQ

• Q: What makes the M12A axial connector better for tight spaces?
  A: Its straight, compact design fits easily into limited control panels.
• Q: Can this cable connect multiple sensors?
  A: It can link sensors in parallel if the total current stays within rated limits.
• Q: Is the PVC sheath oil-resistant?
  A: Yes, the outer layer resists industrial oils and cleaning chemicals.
• Q: How should I install the connector for vibration-heavy systems?
  A: Use a 0.6 Nm torque wrench to tighten the nickel-plated lock securely.
• Q: Where can I get custom cable lengths?
  A: Contact sales@powergearx.com or message via
  WhatsApp +86 18030005825.
