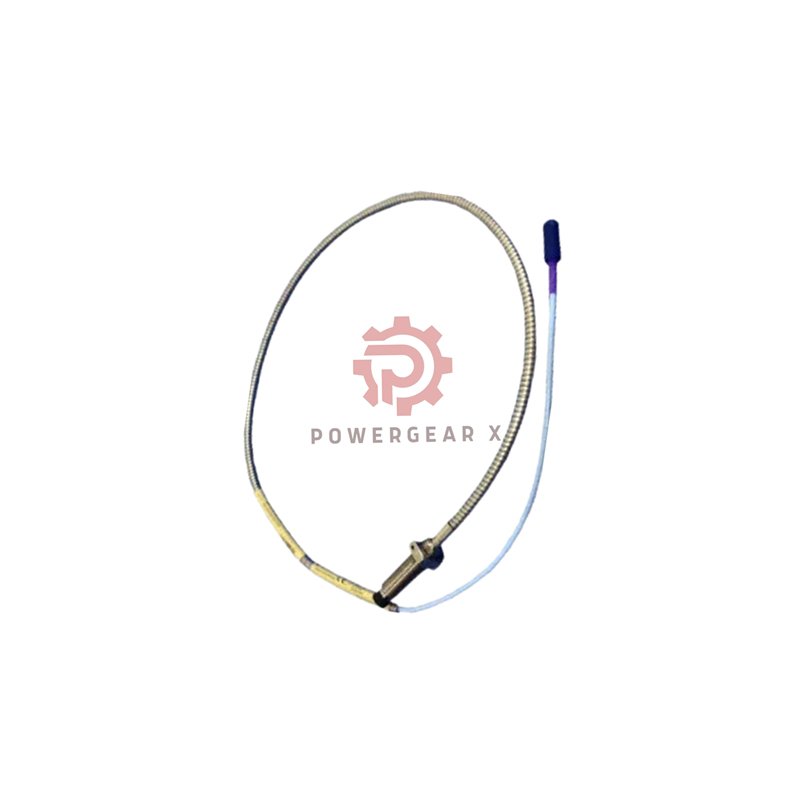

Certified Bently Nevada 330102-00-20-10-11-05 Probe | ATEX CSA IECEx 3300 XL 8mm

Hazardous Area Certified Vibration Sensor with Armor

Deploy confidently in explosive environments. This 3300 XL 8mm Proximity Probe comes with full international safety certifications. It features a protective armor and a FluidLoc cable for harsh conditions. Monitor critical machinery vibration and position with assured safety. A premium, ready-to-comply solution from Bently Nevada.

Fully-Specified Model: 330102-00-20-10-11-05

This part number details a high-specification probe. Each option is defined below:

• 330102 – Base Model: 3300 XL 8mm Probe, 3/8-24 UNF thread, with armor.
• 00 – Unthreaded Length: 0.0 inches.
• 20 – Case Length: 2.0 inches overall.
• 10 – Cable: 1.0 meter (3.3 feet) long.
• 11 – Connector/Cable: ClickLoc with protector & FluidLoc cable.
• 05 – Approvals: CSA, ATEX, IECEx certified.

Key Technical & Safety Data

• Manufacturer: Bently Nevada
• Product Number: 330102-00-20-10-11-05
• Probe Type: Armored 8mm Proximity Vibration Probe
• Thread Standard: 3/8-24 UNF (Imperial).
• Measurement Range: Linear from 0.25 mm to 2.3 mm.
• Target Gap: Set to 1.27 mm (50 mils).
• Cable Specification: FluidLoc for oil & chemical resistance.
• Electrical Value: DC Resistance: 7.59 Ω (±0.50).
• Safety Certs: CSA, ATEX, and IECEx for hazardous locations.

Robust Construction & Compliance

• Armor: Added metal armor for physical protection.
• Temperature Range: Standard operation -52°C to +177°C.
• Seal: Viton O-ring. Avoid installation below -34°C.
• Mounting: 3/8-24 UNF thread. Max engagement 0.563 inches.
• Intrinsic Safety: Approved for use in Zone 0/1/2 with appropriate barriers.

Your Order Includes Full Support

• One certified 3300 XL 8mm Probe, model 330102-00-20-10-11-05.
• Complete with armor, FluidLoc cable, and connector protector.
• Warranty: Full 12-month manufacturer warranty.
• Global Shipping: Fast delivery via FedEx, UPS, or DHL.

Specialist FAQs for Certified Equipment

Certifications & Specifications

• What does the ‘-05’ agency approval provide?
• It means this probe is individually certified by CSA (Canada/US), ATEX (EU), and IECEx (International) for use in hazardous areas. This simplifies compliance for global projects.
• What is the benefit of the armored version (‘330102’ vs ‘330103’)?
• The external metal armor provides extra mechanical protection against impact, abrasion, and crushing in rough plant environments.

Application & Installation

• My equipment uses M10 threads. Can I use this 3/8-24 UNF probe?
• No. The thread is different. You must use an adapter or order the correct model (like 330103) with M10x1 threads. Do not force mismatched threads.
• Why choose FluidLoc cable?
• FluidLoc cable resists oil, moisture, and many chemicals. It is essential for wet, oily, or washdown areas to prevent cable jacket degradation.

Purchasing & Logistics

• Are certification documents included?
• Yes. This certified model ships with the necessary documentation to prove compliance for your safety system audits and records.
