Product details

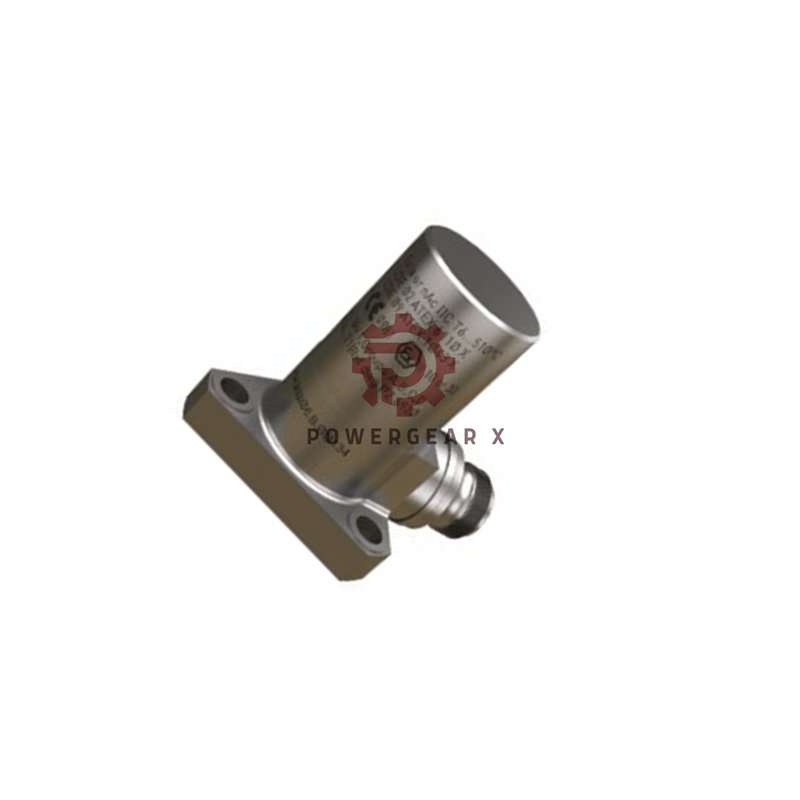

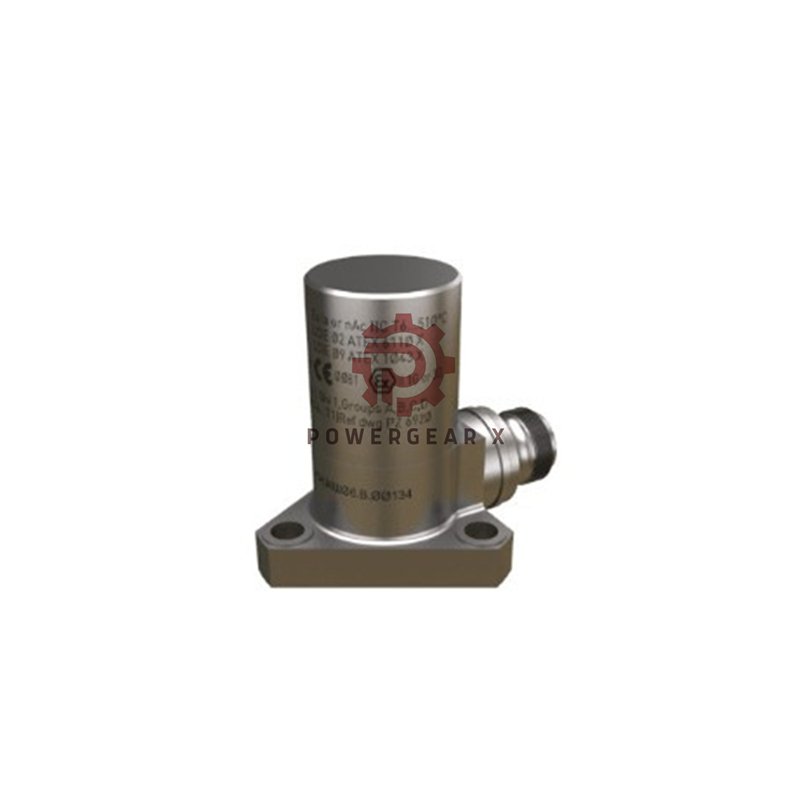

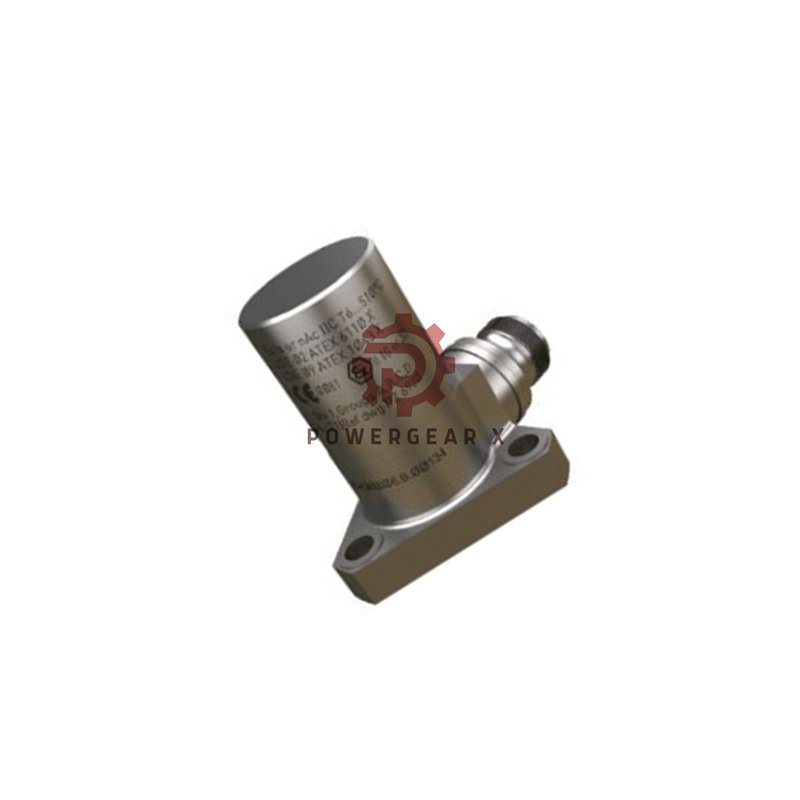

Powergear X CA 901 Extreme Environment Accelerometer
- 144-901-000-212 works in very hot and cold places from -196°C to 700°C.
- It checks loose parts in machines and keeps working in tough conditions.
- The CA 901 model has strong parts that resist water and rust.
- You can use it in explosive areas with special safety approval.
- It gives clear signals for vibration from 3 Hz to 2800 Hz.
Technical Specifications
- Brand: Vibro Meter
- Model: CA 901 Standard Version
- Order Number Details:
- Base Code: 144-901-000-2
- Suffix XX=12 for 5 meter cable
- VM Lemo connector type
- Sensitivity: 10 pC/g ±5% at normal room temperature
- Frequency Range: 3 Hz to 2800 Hz for accurate readings
- Wide Temperature Operation: -54°C to 650°C continuous use
- Shock Resistance: 500 g peak shock survival
- Pressure Rating: 140 bar at 23°C, 80 bar at 300°C
- Mounting: 4 M6 screws with 15 Nm torque
- Insulation: Minimum 10^9 Ω resistance for safety
Shipping and Support
- We ship worldwide using FedEx, UPS, and DHL carriers.
- Package includes the CA 901 sensor and connector parts.
- All items come in protective boxes for safe delivery.
- Need help? Contact sales@powergearx.com or +86 18030005825.
Frequently Asked Questions
- What cable length comes with ordering code XX=12?
- This gives you a 5 meter long cable with your sensor.
- How does the CA 901 handle nuclear radiation environments?
- It works fine under gamma flux up to 10^11 erg/g and neutron flux to 10^18 n/cm².
- What is the transverse sensitivity specification?
- It stays below 5% for minimal measurement error from side movements.
- Can I use this accelerometer in zone 0 explosive areas?
- Yes, it has LCIE 08 ATEX 6017 X certification for zone 0, 1, and 2 use.
- What is the resonance frequency when mounted properly?
- You get over 17 kHz resonance frequency for high-speed vibration detection.
