Buy Yokogawa SED4D-06 Digital Terminal Board – Reliable Dual Channel

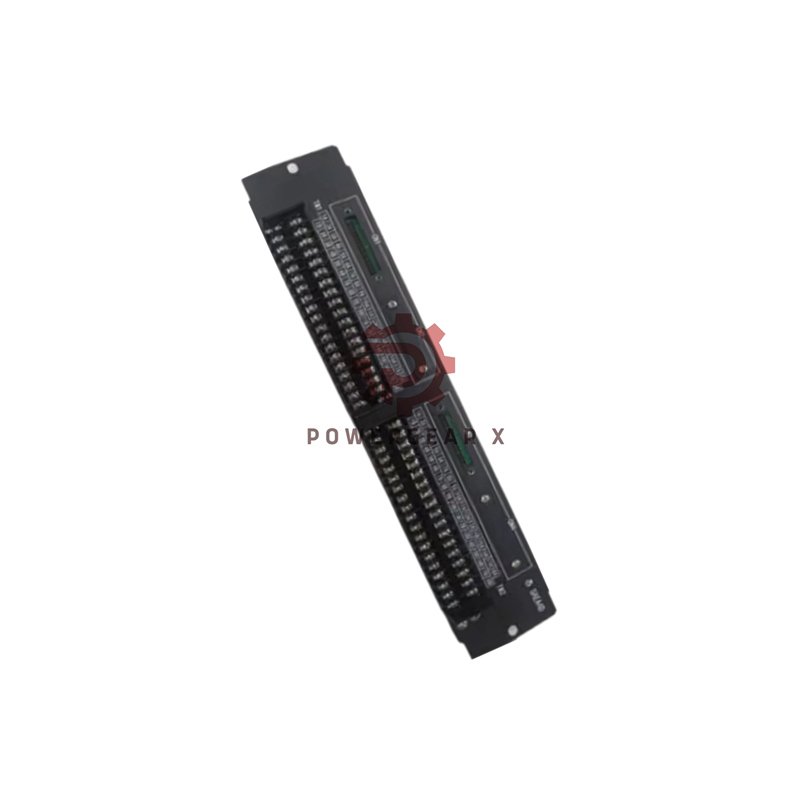

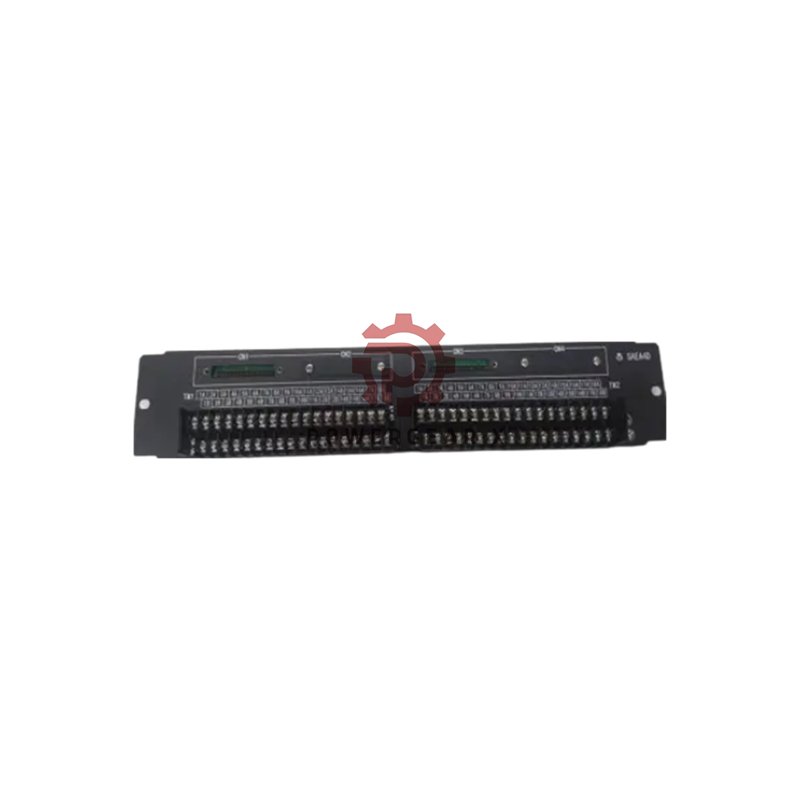

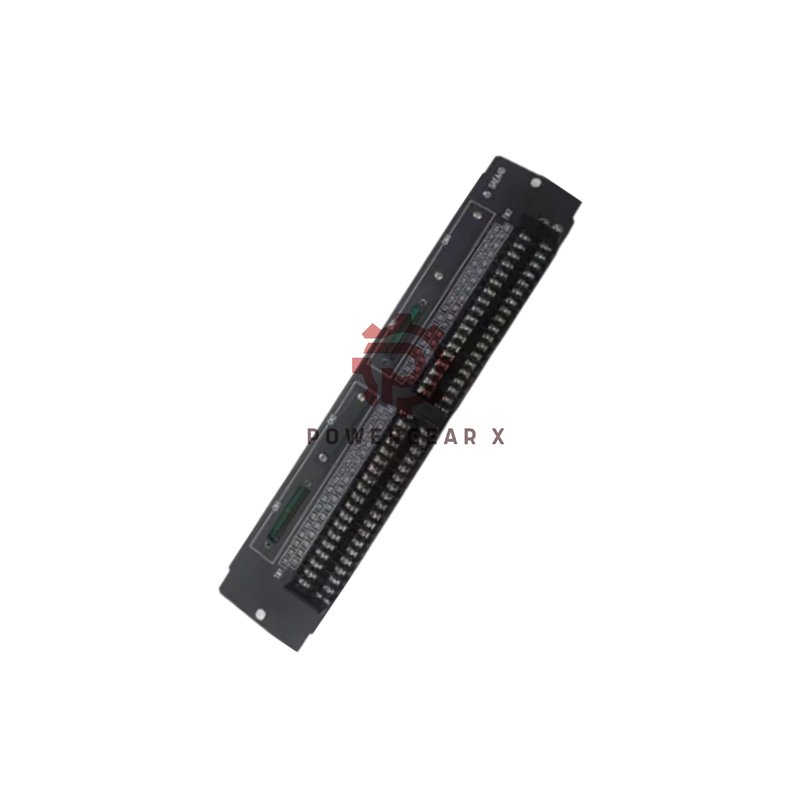

Yokogawa SED4D-06 Digital Terminal Board | 16×2 Channel, SIL3 Certified

The Yokogawa SED4D-06 Digital Terminal Board is built for dependable and safe signal transmission in industrial automation. With a dual-redundant 16×2 channel design and SIL3 safety certification, it ensures high reliability in process control systems. Each module comes brand new, factory tested, and includes a 12-month warranty. Worldwide delivery available via FedEx, UPS, or DHL.

• Manufacturer: Yokogawa
• Product No.: SED4D-06
• Product Type: Digital Terminal Board
• Weight: 1.5 kg

Suffix Code Breakdown

• 0: Without surge absorber
• 6: ISA Standard G3, no explosion protection

Core Specifications

• Configuration: Single/Dual-redundant (16 channels x 2)
• Safety Rating: SIL3
• Terminal Type: M4 screw terminals
• Connection Cable: AKB331 compatible
• Withstand Voltage: 500 V AC for 1 minute
• Insulation Resistance: ≥100 MΩ at 500 V DC
• Operating Temperature: -20 °C to +70 °C
• Humidity Range: 10%–90% RH (non-condensing)
• Mounting: Panel or rack mount compatible
• Material: Industrial-grade PCB with corrosion-resistant coating

Key Benefits

• Dual redundancy design for maximum system uptime.
• Compact layout saves space in control cabinets.
• Easy terminal access with M4 screw connection.
• High insulation and voltage protection improve safety.
• Meets SIL3 for advanced functional safety applications.
• Long service life with durable industrial build quality.

Applications

• Digital signal interfacing for control and monitoring systems
• Use in redundant architectures for high-availability automation
• Ideal for chemical, power, and oil & gas control systems
• Integration with Yokogawa DCS and safety systems

Warranty & Shipping

• Condition: 100% New and Original in Factory Packaging
• Warranty: 12 Months
• Shipping: FedEx, UPS, DHL available worldwide

FAQs – Yokogawa SED4D-06

• Q1: What type of configuration does the SED4D-06 support?
• A: It supports both single and dual-redundant configurations for flexible system design.
• Q2: What is the safety certification level of this terminal board?
• A: The SED4D-06 is SIL3 certified for use in high-reliability systems.
• Q3: Does this board have surge protection?
• A: This model (suffix 0) comes without a surge absorber, suitable for controlled environments.
• Q4: What cable should I use for connection?
• A: Use the AKB331 connection cable for reliable data and signal transfer.
• Q5: How can I ensure stable operation?
• A: Maintain installation within its rated temperature and humidity range and ensure proper grounding.
