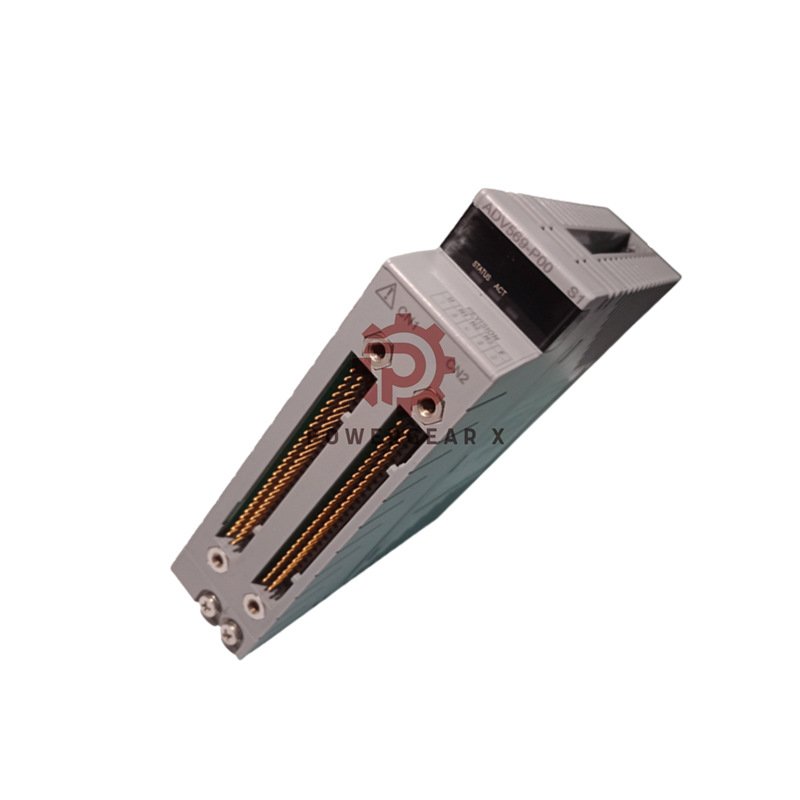

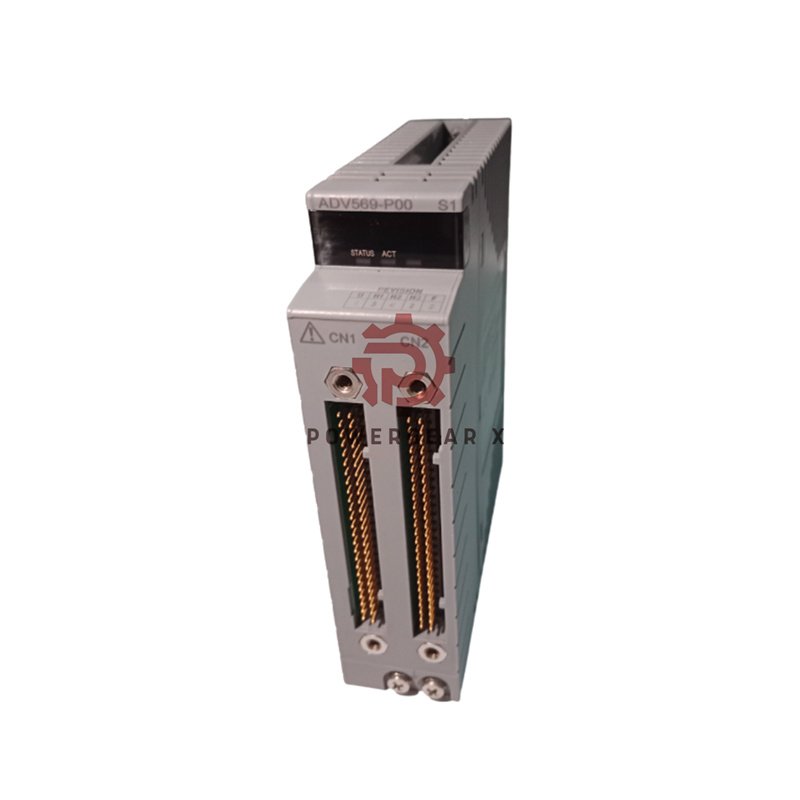

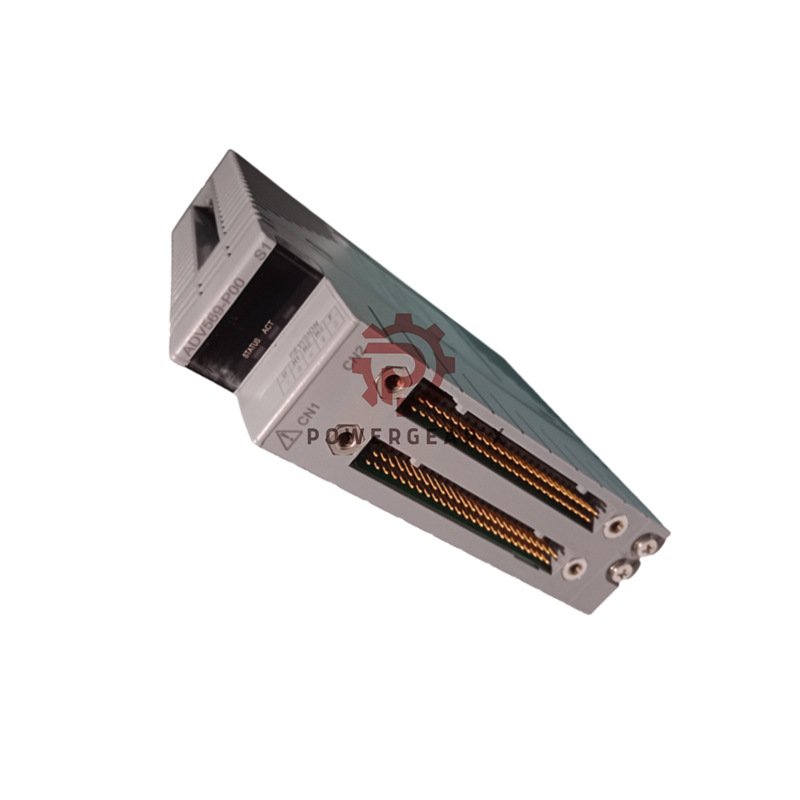

Yokogawa ADV569-P00 Digital Output Module

Manufacturer: Yokogawa
Part Number: ADV569-P00
Model: ADV569 Digital Output Module for ST7 (64-channel, Isolated, Common Minus Side Every 16-channel)

• Pulse Width Function: Yes
• Time-Proportional Output: Available
• I/O Channels: 64 digital outputs
• Signal Isolation: Common every 16 channels
• Output Signal: Transistor contact
• Output Rating: 30 V DC, 100 mA
• Response Time: ≤16 ms
• Pulse Width: 8 ms – 7200 s
• Pulse Width Resolution: 8 ms ±1 ms delay
• Power Consumption: 800 mA (5 V DC)
• Weight: Approx. 0.30 kg
• External Connection: Dedicated KS9 Cable
• Compatible Card: ST7 Compatible
• Warranty: 12 months
• Shipping: FedEx, UPS, DHL

Suffix Structure:

ADV569 - P00
│        │ └─ 0: Basic type
│        └─ P: Pulse width & proportional output
└─ Model: Digital Output Module

Key Features

• Compact 64-channel design for efficient output control
• Stable isolation per 16 channels for high reliability
• Fast 16 ms response ensures precise timing control
• Flexible pulse width adjustment from 8 ms to 7200 s
• Durable stainless-steel construction, long life span

Technical Highlights

• Power Supply: 5 V DC ±10%
• Operation Temperature: 0°C to +55°C
• Storage Temperature: -25°C to +70°C
• Relative Humidity: 20–90% non-condensing
• Vibration Resistance: 10–57 Hz, 0.075 mm amplitude
• Noise Immunity: IEC61000-4 compliant

FAQ

• Q1: What system does the Yokogawa ADV569-P00 work with?
  A: It works with ST7 compatible systems.
• Q2: Can it handle inductive loads?
  A: Yes, it supports both inductive and resistive loads up to 30 V DC, 100 mA.
• Q3: What is the minimum adjustable pulse width?
  A: The shortest pulse width is 8 ms.
• Q4: What accessories are required for installation?
  A: It requires the KS9 dedicated connection cable.
• Q5: What is the delivery time for this module?
  A: Usually ships in 3–5 business days via FedEx, UPS, or DHL.
