Buy Woodward 5466-355 Remote Transceiver – High-Speed Industrial Communication

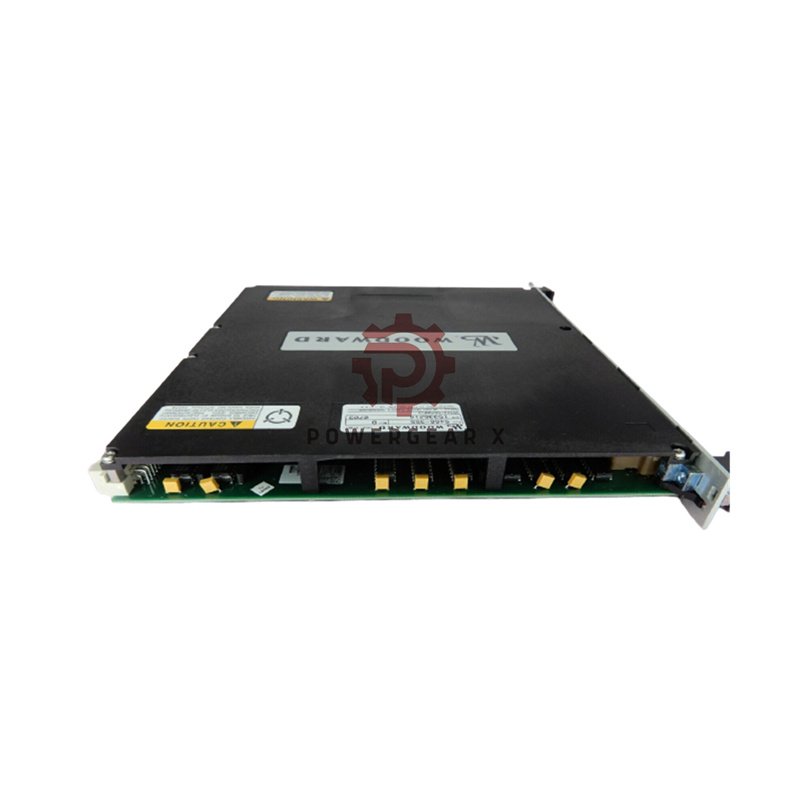

Woodward 5466-355 Remote Chassis Transceiver

• Part Number: 5466-355

• Manufacturer: Woodward

• Product Type: Remote Chassis Transceiver

• Origin: United States (USA)

• Status: In Stock

• Warranty: 12 Months

• Shipping: FedEx / UPS / DHL

⚙️ Technical Highlights

• System Support: CPU 68040 only
• Bus Type: VME parallel interface
• Connector Type: 100-pin metal shell Micro-D
• Line Drivers: High-speed differential
• Slot Requirement: Slot 1 (each chassis)
• Cable Length: 3 ft (0.9 m) between T-Modules, 10 ft (3 m) main link
• Operation Mode: Transmit & receive control, data, and address info
• Termination: Built-in resistors for final expansion chassis

🔌 Installation Notes

• No LEDs or switches included
• Use non-terminated modules for all but last chassis
• Install in Slot 1 of each remote chassis
• Verify cable integrity before replacing the module
• Employ T-Modules with 3 ft cables for best signal results

📞 Contact Information

Inquiries:
sales@powergearx.com |
+86 18030005825

❓ Frequently Asked Questions (FAQ)

• 1. What systems support the 5466-355 module?
• It is compatible only with CPU 68040-based systems.
• 2. How many connectors does the module have?
• It features two 100-pin metal shell Micro-D connectors.
• 3. Where should the Remote XCVR be installed?
• Always install in Slot 1 of each remote or expansion chassis.
• 4. What if the module stops working?
• Check cable connections, then replace cables. Replace the module if the issue continues.
• 5. Why are termination resistors important?
• They prevent signal reflection and ensure smooth data communication in the last chassis.
