Product details

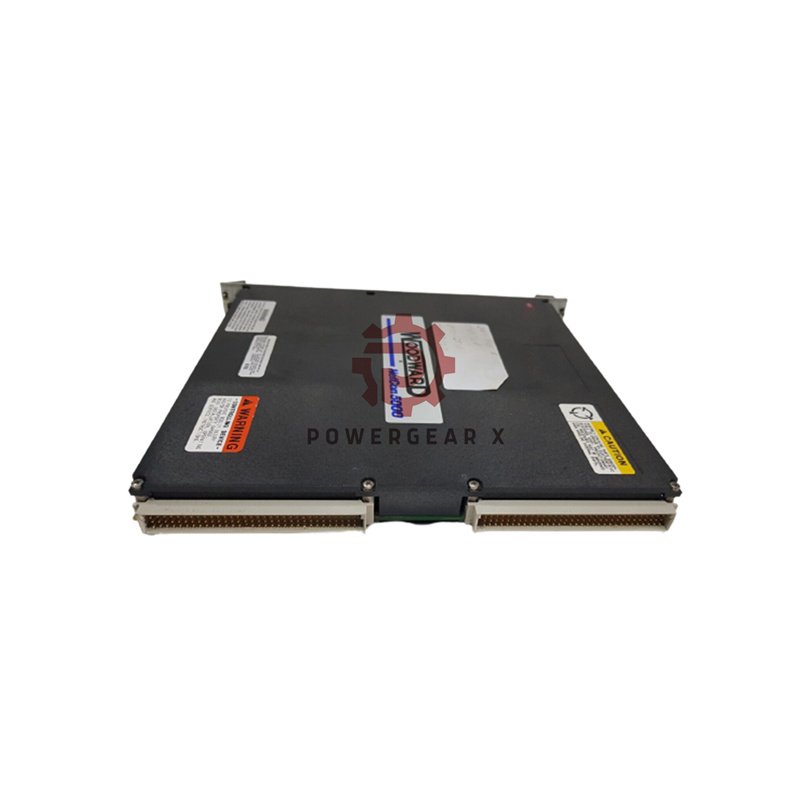

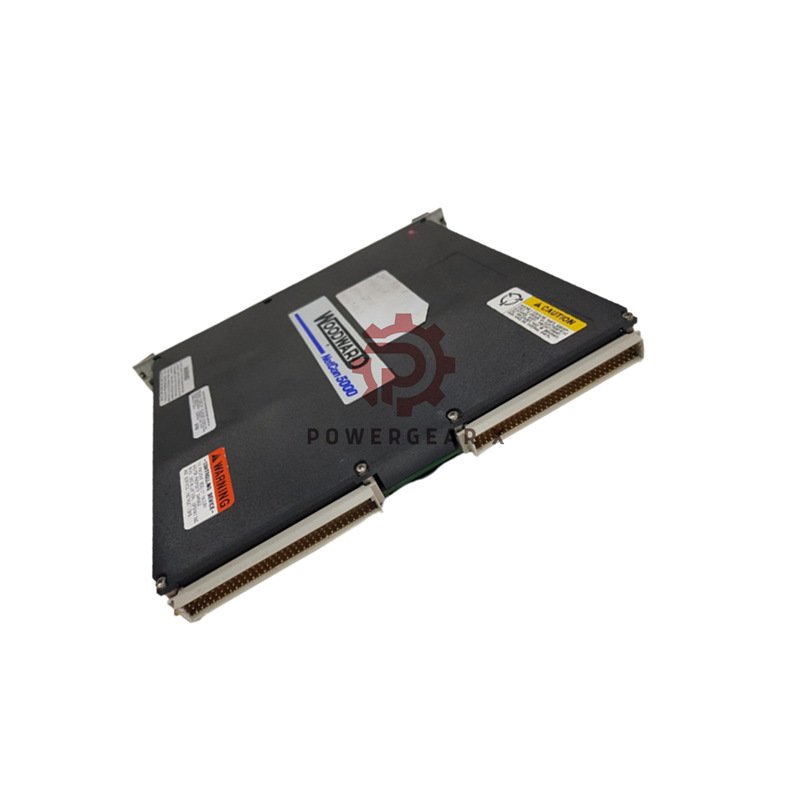

Woodward 5464-843 NetCon 5000 CPU Module Overview
The Woodward 5464-843 is a smart and efficient CPU module designed for the MicroNet Digital Control system. It features intelligent on-board control, automatic calibration, and high reliability for complex industrial automation tasks.
- Manufacturer: Woodward
- Model: 5464-843
- Catalog: MicroNet Digital Control
- Origin: United States (US)
- HS Code: 85389091
- Dimension: 16 cm × 16 cm × 12 cm
- Weight: 0.8 kg
- Warranty: 12 months
- Shipping: FedEx, UPS, DHL worldwide
Technical Highlights
- Smart I/O with on-board microcontrollers for independent processing
- Automatic self-test and LED fault indication for reliability
- Supports digital actuator control (0–25 mAdc / 0–200 mAdc output range)
- EEPROM-based calibration constants for precise performance
- Real-time voltage and current fault monitoring per channel
- Dual-port VME-bus memory interface for faster data handling
- On-board automatic temperature compensation and calibration
- Replaceable on-board fuse for easy maintenance
- Supports up to four actuator driver channels per module
Product Advantages
- Reduces CPU load with smart I/O rate-group scheduling
- Improves accuracy with built-in voltage reference monitoring
- Detects and isolates faults automatically to protect systems
- Simple setup with visible fuse replacement slot
- Perfect for hydromechanical and pneumatic actuator control
Applications
- Industrial control and automation systems
- Turbine and generator control platforms
- Hydraulic and pneumatic actuator systems
- Process optimization in manufacturing lines
- Energy management and system monitoring
Contact Information
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
Frequently Asked Questions (FAQ)
- Q: What system does the Woodward 5464-843 belong to?
- A: It is part of the MicroNet Digital Control system for precise CPU operations.
- Q: How does the smart I/O module manage errors?
- A: It detects channel faults via on-board sensors and alerts the CPU automatically.
- Q: What kind of actuators can it control?
- A: It supports proportional and integrating hydromechanical or pneumatic actuators.
- Q: Does it perform self-calibration?
- A: Yes, it automatically compensates and calibrates for temperature and voltage variations.
- Q: How can I replace a blown fuse?
- A: The fuse is accessible through a cutout; replace it with one of the same type and size.
