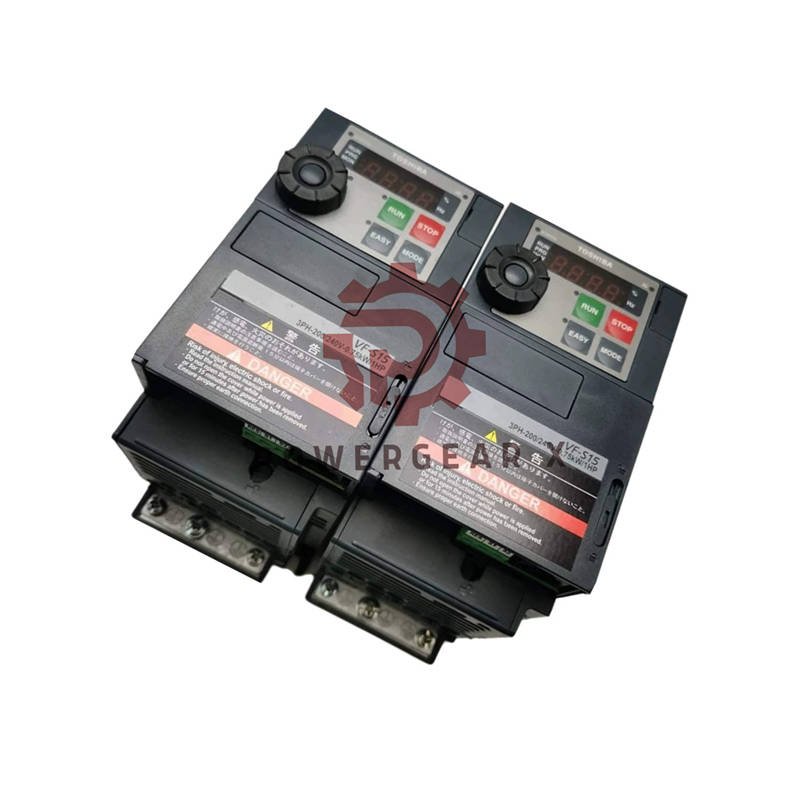

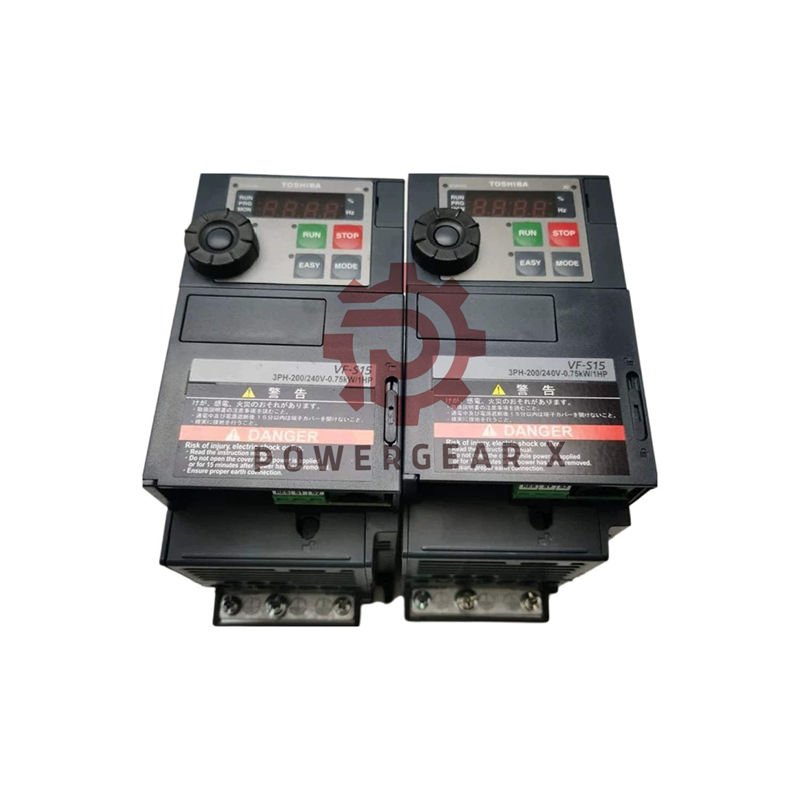

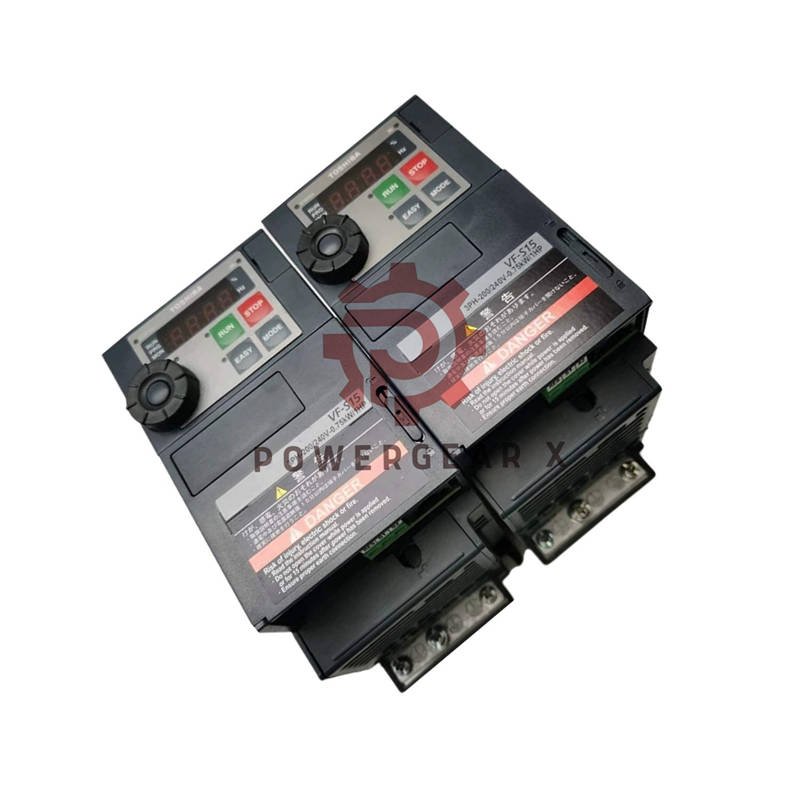

Toshiba VFS15-2022PM-W1 Micro Drive VFD
Take control of your 3-phase motors with the Toshiba VFS15-2022PM-W1. This compact Variable Frequency Drive (VFD) delivers precise speed control. It is perfect for pumps, fans, and conveyor systems. Enjoy reliable performance in a small package.
Top Features You’ll Appreciate
- Compact micro-drive design saves cabinet space.
- Wide frequency range for flexible motor control.
- Built-in filter reduces electrical noise.
- Simple operation panel for easy setup.
- Robust construction for industrial environments.
Complete Technical Specifications
- Brand & Model: Toshiba VFS15-2022PM-W1
- Authorized Seller: Powergear X Automation
- Product Type: AC Variable Frequency Drive (VFD)
- Series: VF-S15 Series (TOSVERT)
- Rated Horsepower: 3 HP
- Rated Output Current: 11 Amps Full Load
- Input Supply Voltage: 3-Phase, 230 VAC
- Output Voltage: 0 to Input Voltage (230 VAC)
- Frequency Control Range: 0.1 Hz to 500.0 Hz
- Default Frequency Setting: 0.5 Hz to 60.0 Hz
- Control Method: Sinusoidal PWM
- Carrier Frequency: Adjustable up to 15 kHz
- Efficiency: > 97%
- Control Features: V/F Control, Auto-Torque Boost
- Protection Functions: Overload, Overcurrent, Overvoltage, Undervoltage, Short Circuit, Overtemperature
- Built-in Features: Basic EMC Filter, DC Braking, Analog/Digital Inputs
- Digital Inputs: 3 programmable inputs
- Analog Input: 1 (0-10V or 4-20mA)
- Relay Output: 1 programmable fault relay
- Operating Temperature: -10°C to 50°C (14°F to 122°F)
- Storage Temperature: -20°C to 65°C
- Humidity: 5% to 95% (non-condensing)
- Enclosure Rating: IP20 (Open Type)
- Mounting: Wall or DIN Rail Mount
- Dimensions (WxHxD): Approx. 100mm x 150mm x 130mm
- Standards: CE, UL, cUL listed
Warranty & Global Shipping
All products include a 12-month warranty. We ship quickly worldwide using FedEx, UPS, and DHL. You will receive your tracking number promptly after dispatch.
Expert Questions & Answers
What is the main application for this VFS15 model?
It is ideal for controlling 3HP, 3-phase motors in applications like ventilation fans, water pumps, and material handling conveyors.
Can this drive run a single-phase motor?
No. It is designed specifically for three-phase motor control. The input power, however, can be either single-phase or three-phase 230V.
What is the key benefit of the built-in filter?
The basic EMC filter helps reduce high-frequency noise. This prevents interference with nearby sensitive electronic equipment.
How do I set the motor speed with this drive?
You can set the speed using the keypad, an external potentiometer (connected to analog input), or via digital signals from a PLC.
From a technician’s view, what is a common setup oversight?
A common mistake is not running the motor auto-tuning function. Always run this after wiring to ensure optimal performance and protection.
What should I check first if the drive shows a fault?
First, check the fault code on the display. Then, verify all electrical connections are tight and the motor cable is not damaged or shorted.
Is it suitable for heavy-duty starting applications?
Yes, its 150% overload capability for 60 seconds handles high starting torque for pumps or conveyors with heavy loads.
Can multiple drives communicate together?
This model uses analog and digital I/O for basic control. For networked communication, you would need an optional communication card.
