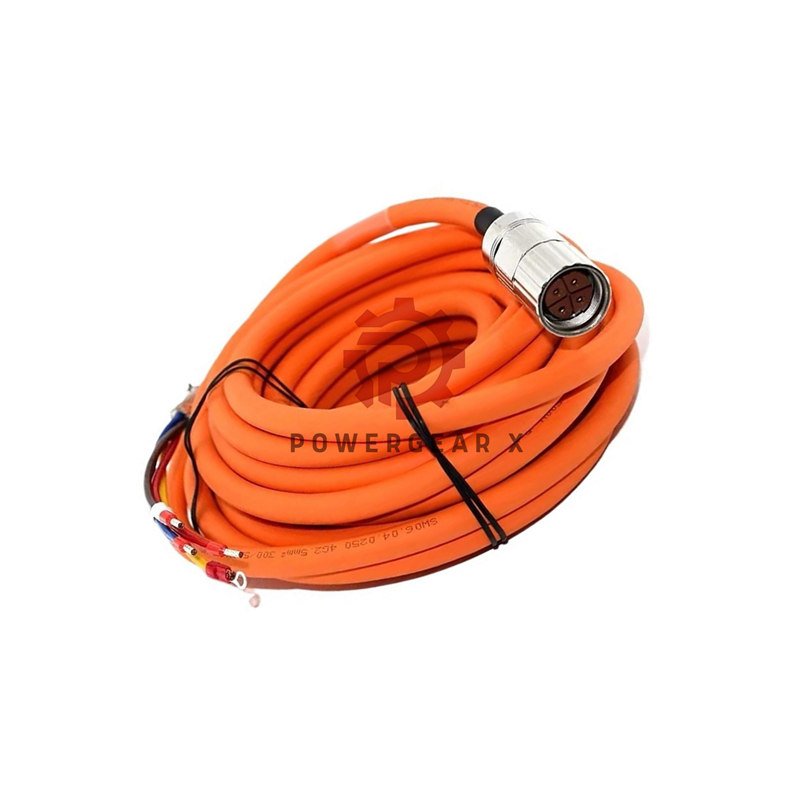

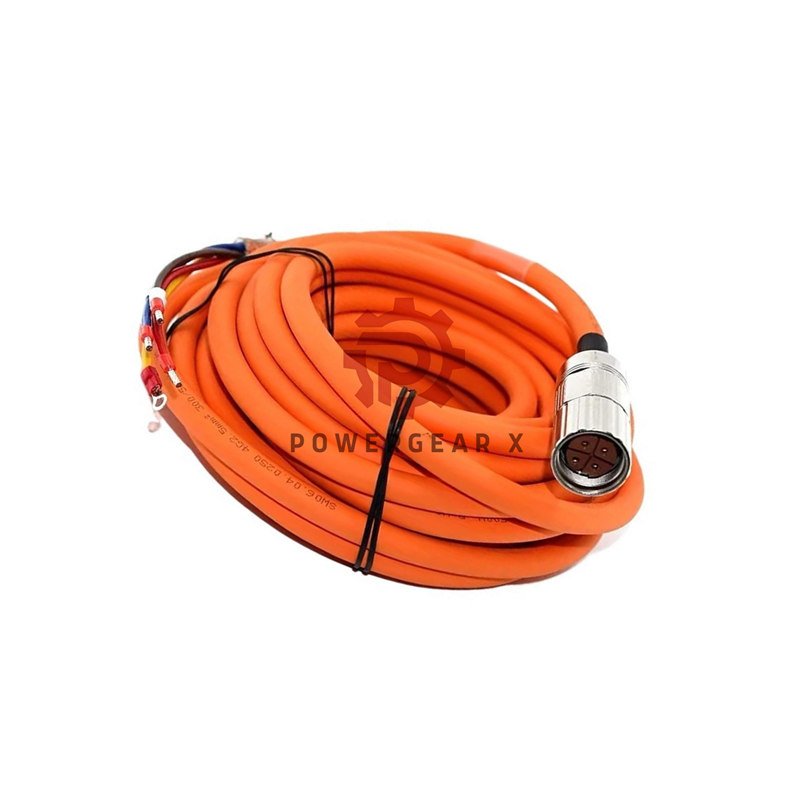

Siemens 6FX3002-5CL12-1AF0 Power Cable Preassembled (5m, Straight Connector)
Author: Powergear X Automation
The 6FX3002-5CL12-1AF0 is a high-quality preassembled power cable designed for Siemens S-1FL6 HI 400V motors used with V70/V90 drives. This MOTION-CONNECT 300 series cable ensures safe, efficient power transmission with superior flexibility and mechanical endurance, making it ideal for industrial motion systems.
- Manufacturer: Siemens
- Model: 6FX3002-5CL12-1AF0
- Product Type: Power Cable, Preassembled
- Cable Type: 4 x 2.5 mm² (Copper Conductors)
- Rated Voltage: 600/1000 V (EN 50395)
- Test Voltage: 4000 V (RMS)
- Length: 5 m
- Outer Diameter: 9.7 mm (Max)
- Connector Type: Straight Connector
- Compatible Motors: Siemens S-1FL6 HI 400 V with V70/V90
- Flexibility: Up to 1,000,000 bending cycles
- Tensile Strength: 50 N/mm² (Fixed), 20 N/mm² (Flexible)
- Torsion: ±30°/m
- Bending Radius (Fixed): 6 × Diameter
- Bending Radius (Dynamic): 155 mm
- Net Weight: 2.249 lb (1.02 kg)
- Lifecycle: Phase Out Announced
Performance Highlights
- Preassembled design for quick installation
- High flexibility for moving machine parts
- Long service life — up to 1 million bends
- Tested insulation up to 4000 V
- Stable power delivery for motion control drives
- Durable jacket protects from mechanical wear
- Ideal for automation and servo motor systems
Warranty & Delivery
- Warranty: 12 months full coverage
- Shipping: Global delivery via FedEx, UPS, or DHL
- Return Policy: Non-returnable item (factory preassembled)
Contact Information
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
Frequently Asked Questions (FAQ)
- Q1: What is the main use of the 6FX3002-5CL12-1AF0 cable?
- It connects Siemens S-1FL6 HI 400V motors to V70/V90 drives for motion control.
- Q2: Can it be used in flexible machine setups?
- Yes, it supports up to 1,000,000 bending cycles for dynamic motion systems.
- Q3: Is the cable shielded?
- No, it is a power-only cable without signal shielding.
- Q4: Does it support UL certification?
- No, this version is a non-UL MOTION-CONNECT 300 type.
- Q5: What is the typical test voltage?
- The power conductors are tested at 4000 V RMS for insulation integrity.
Additional Features
- Reliable performance under torsional motion
- Optimized for 400 V Siemens motor systems
- Compact size for tight cabinet spaces
- Resistant to mechanical stress and bending fatigue
- Ready-to-use preassembled connector reduces downtime
