Product details
High-Density 32-Channel TTL Output Module

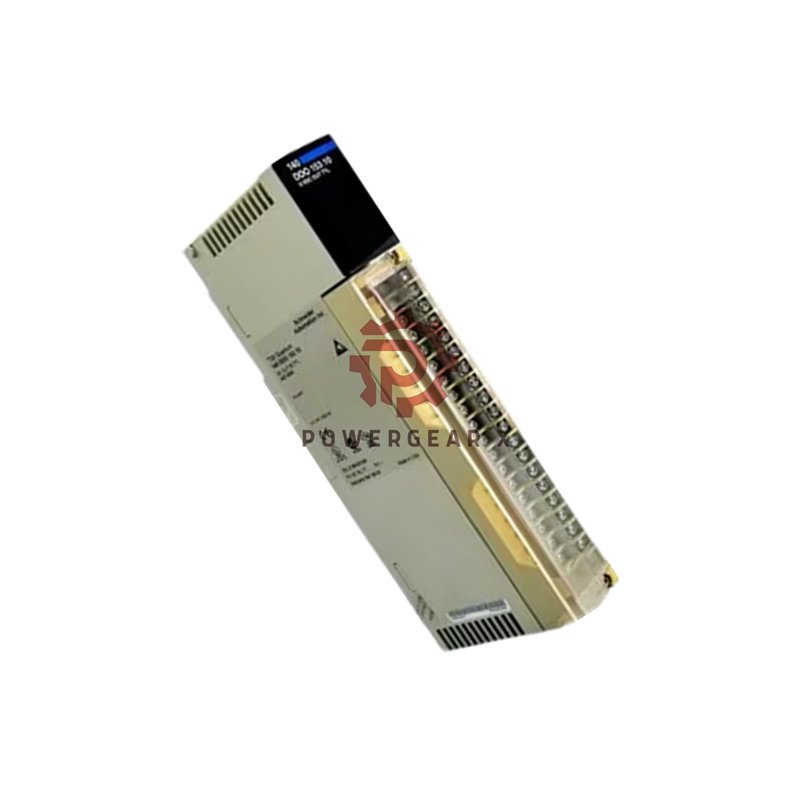

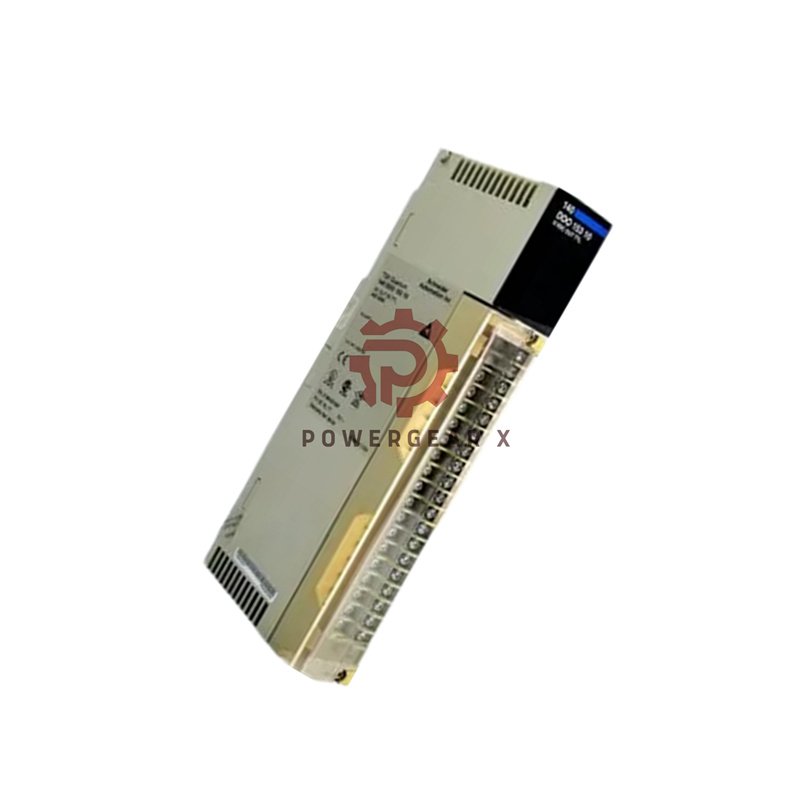

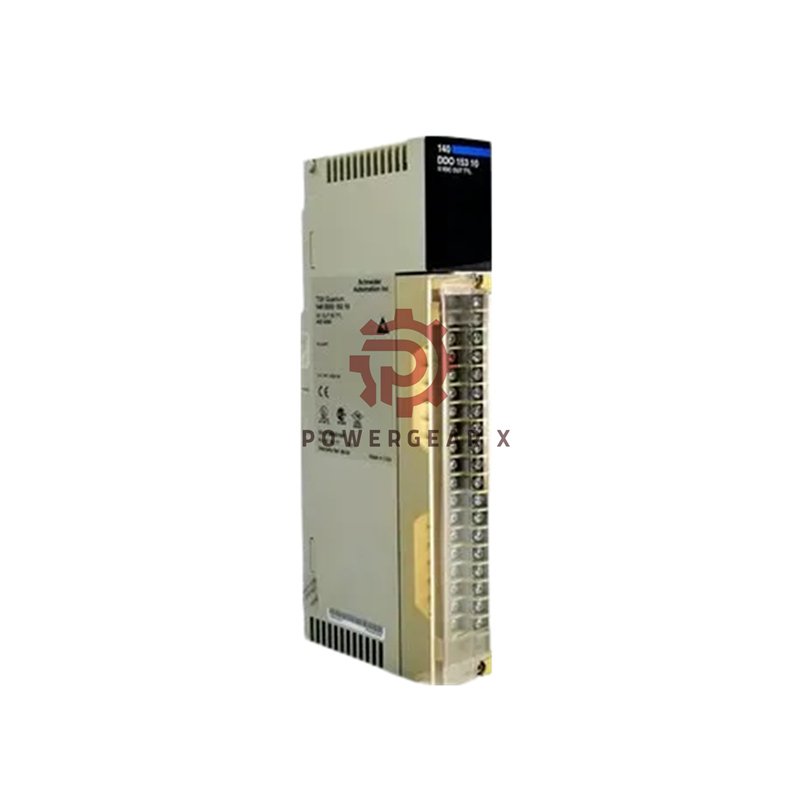

The Schneider Electric 140DDO15310 delivers exceptional output control for your automation system. This Modicon Quantum module provides 32 TTL discrete outputs in a compact design. It offers reliable performance for industrial applications requiring precise digital signal control.
Complete Technical Specifications
- Model: Schneider Electric 140DDO15310
- Output Type: 32 TTL positive (sink) outputs
- Output Voltage: 5V DC ±0.5V
- Current Rating: 75mA per point, 2.4A total
- Isolation: 500Vrms between groups
- Response Time: ≤250µs state change
- Power Consumption: 4W, 0.4A maximum
- Certifications: UL, CSA, FM Class 1 Div 2, GOST
- EMC Protection: 4kV contact, 8kV air ESD protection
- Operating Altitude: Up to 5000 meters
Packaging & Warranty
- Single unit ready for installation
- Package size: 31.2 × 16.3 × 4.5 cm
- Shipping weight: 441 grams
- Global express shipping: FedEx, UPS, DHL
- 12-month warranty
Expert FAQs
- What applications is this module best for?
Perfect for digital control systems requiring high-speed TTL signaling. - How are the output channels grouped?
Four isolated groups of eight channels each for flexible wiring. - What protection features are included?
Transient voltage suppression and fuse protection for each group. - Can it operate in harsh environments?
Yes, it handles temperatures from 0°C to 60°C and 95% humidity. - What certifications does it carry?
UL 508, CSA C22.2, FM Class 1 Division 2, and international standards.
