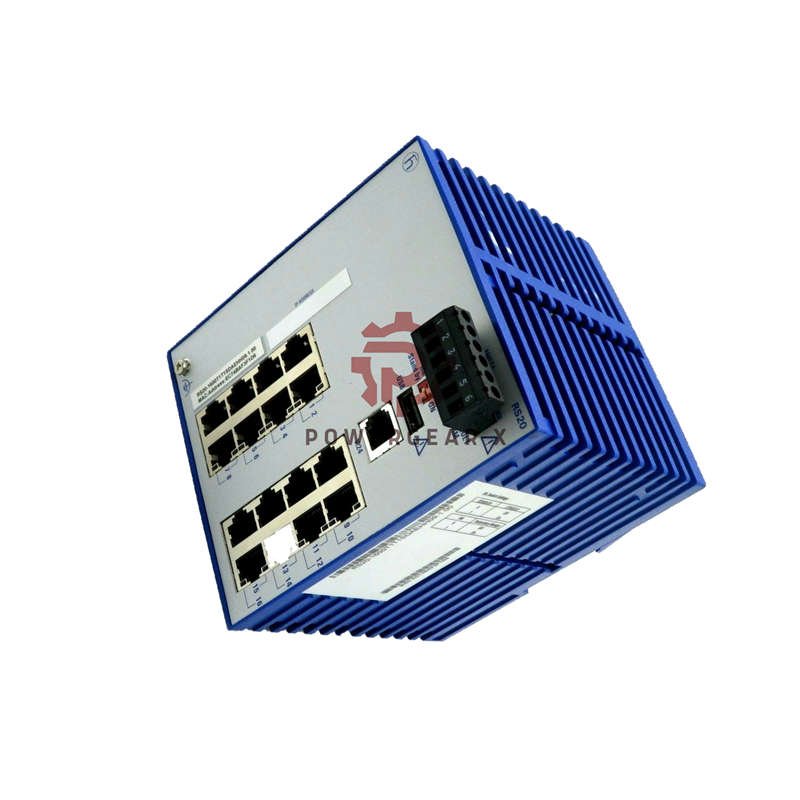

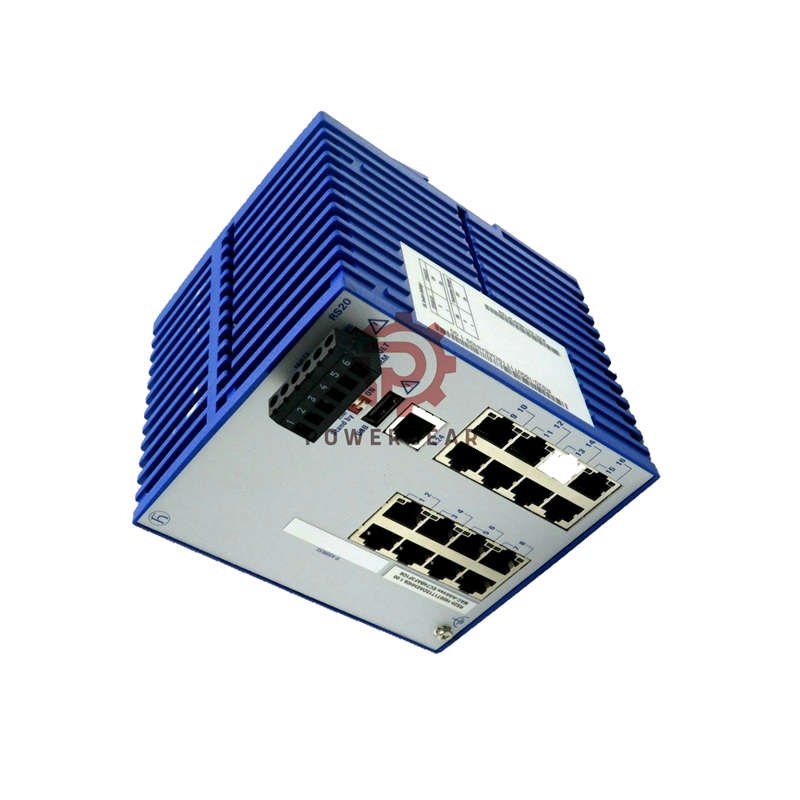

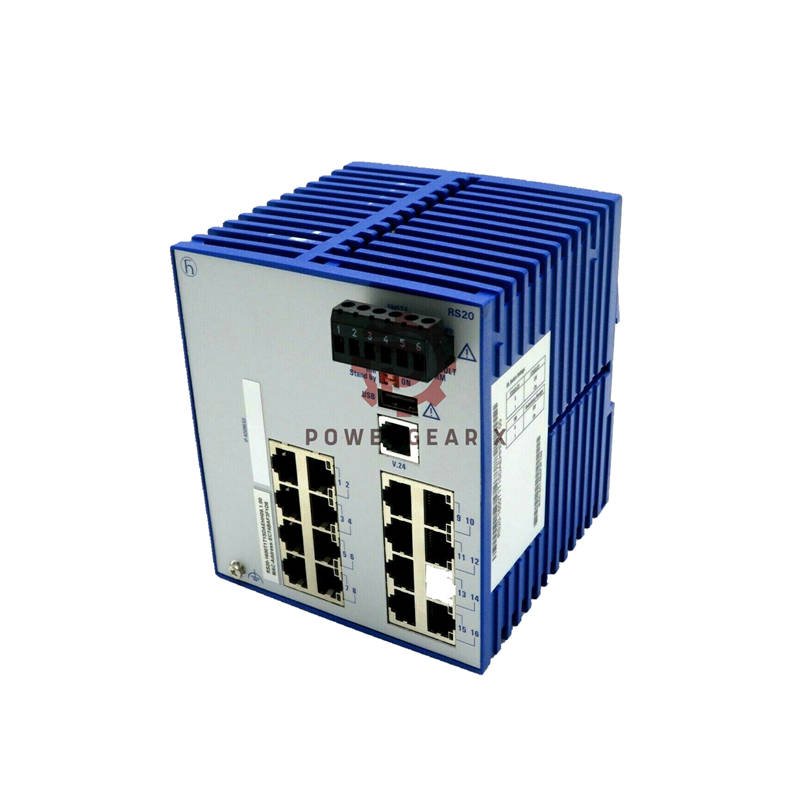

RS20-1600T1T1SDAEHH09.0.00 Compact OpenRail Fast Ethernet Switch

Model: RS20-1600T1T1SDAEHH09.0.00 | Warranty: 12 Months | Shipping: FedEx / UPS / DHL

Author: Powergear X Automation

Inquiries:
sales@powergearx.com |
+86 18030005825

Product Overview

• 16-port managed Fast Ethernet Switch, Layer 2 Enhanced
• Compact, fanless, and DIN rail mount design
• Supports store-and-forward switching
• Ideal for industrial automation networks
• Long MTBF: 45.5 years (MIL-HDBK-217F)

Core Technical Details

• Port Type: 16×10/100BASE-TX RJ45 (2 uplinks + 14 standard)
• Power Input: 12/24/48V DC (9.6–60V) or 24V AC (18–30V)
• Power Use: 392mA @24V DC | 196mA @48V DC
• Network Length: Up to 100m (twisted pair)
• Reconfig Time (HIPER-Ring): < 0.3s
• Operating Temp: 0°C – 60°C | Storage: -40°C – 70°C
• Protection: IP20 | Weight: 600g

Software & Management

• Protocols: LLDP, SNMP v1/v2/v3, Telnet, HTTP
• Security: VLAN-based access, MAC/IP port security, SNMP logging
• Redundancy: HIPER-Ring, MRP, RSTP, Network Coupling
• Diagnostics: LEDs, Syslog, Port Mirroring, Duplex Check
• Time Sync: SNTP client/server

Performance & Reliability

• QoS with 802.1D/p prioritization
• VLAN and IGMP Snooping supported
• RMON (1,2,3,9) monitoring
• Fanless, silent, high-stability design
• Supports EtherNet/IP & PROFINET IO profiles

Mechanical & Safety

• Dimensions: 110 × 131 × 111 mm
• Mounting: DIN Rail
• Shock: 15 g, 11 ms | Vibration: 1 mm–0.7 g
• Certifications: cUL508, ISA 12.12.01 Class 1 Div.2
• EMC: EN 61000-4-2~6, FCC Class A

Product Advantages

• Enhanced Layer 2 performance with fast recovery
• Wide power range for flexible industrial use
• Supports up to 50 HIPER-Ring switches
• High reliability, MTBF over 45 years
• Tool-free installation with plug-in terminal

Professional FAQ

• Q1: What makes RS20-1600T1T1SDAEHH09.0.00 suitable for harsh environments?
• A1: Its fanless metal housing, IP20 protection, and high EMC immunity ensure reliable performance.
• Q2: Can it integrate with PROFINET systems?
• A2: Yes, it fully supports PROFINET IO and EtherNet/IP industrial profiles.
• Q3: How does HIPER-Ring improve uptime?
• A3: It enables fast reconfiguration under 0.3 seconds, keeping communication stable during link loss.
• Q4: Is redundant power supported?
• A4: Yes, it accepts dual DC or AC inputs for high availability in automation systems.
• Q5: What’s the best practice for network security setup?
• A5: Enable VLAN-based access control and MAC-based port restrictions to limit unauthorized devices.
