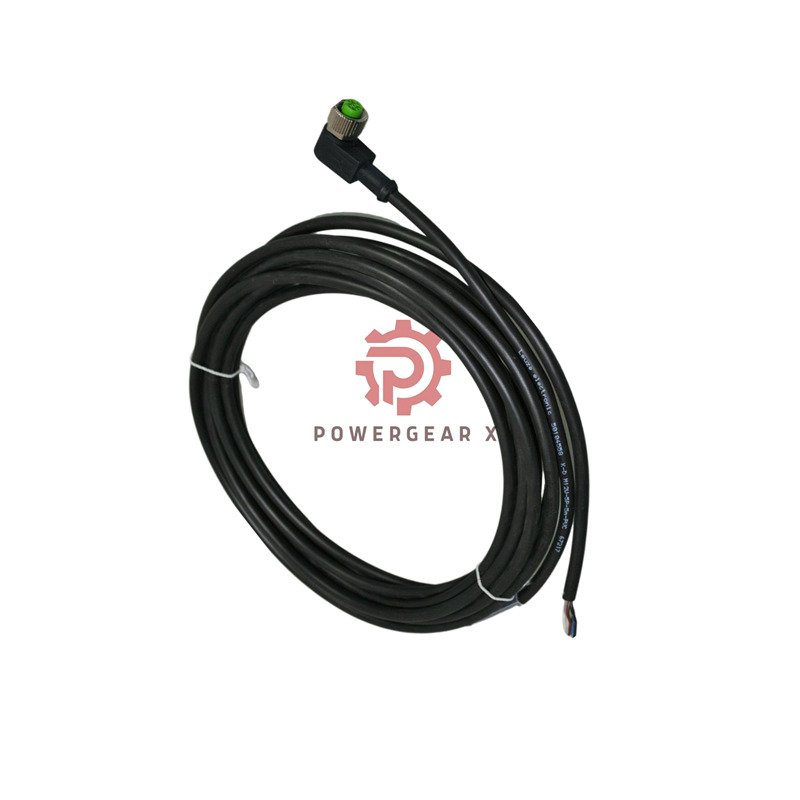

Leuze K-D M12W-3P-2M-PVC Connection Cable

The Leuze K-D M12W-3P-2M-PVC connection cable delivers stable signal transmission in tight industrial setups.
Its right-angle M12 connector ensures secure wiring in confined spaces, making it ideal for automation systems.
Designed and distributed by Powergear X Automation.

Core Electrical Performance

• Operating Voltage: ≤250 VAC/DC
• Current Capacity: ≤4 A per contact
• Insulation Category: I (IEC 60664-1)
• Pin Count: 3 pins
• Connector Type: M12W right-angle (angular socket)

Mechanical Specifications

• Conductor Cross-section: 0.34 mm²
• Sheath Diameter: 4.7–5.7 mm
• Locking Mechanism: Screw fitting, diecast zinc (nickel-plated)
• Recommended Torque: 0.6 Nm, self-locking
• Cable Length: 2 meters

Environmental Tolerance

• Operating Temp (Fixed): -30°C to +70°C
• Operating Temp (Flexible): -5°C to +70°C
• Cable Jacket: Black PVC, high flexibility
• Minimum Bend Radius: ≥10 × sheath diameter

Type Code Breakdown (Tree Structure)

• K-D: Connection cable with connector
  • M12W: Right-angle M12 connector
    • 3P: 3-pin configuration
      • 2M: Cable length 2 meters
        • PVC: Outer sheath made from PVC

Product Advantages

• Right-angle design simplifies installation in small spaces
• Stable connection for sensors and actuators
• Durable PVC sheath resists oil and abrasion
• Nickel-plated connector ensures strong corrosion resistance
• Supports flexible and fixed cable routing

Warranty & Delivery

• 12-month warranty from Powergear X Automation
• Fast delivery via
  FedEx,
  UPS, and
  DHL

FAQ

• Q: How does the M12W angled design help installation?
  A: It fits easily into compact control cabinets, saving wiring space.
• Q: Can this cable support outdoor environments?
  A: It is designed mainly for indoor automation with PVC protection.
• Q: What’s the best bending practice for flexible use?
  A: Keep the bend radius above 10× the sheath diameter.
• Q: Does it support both signal and power lines?
  A: Yes, each contact can handle up to 4A.
• Q: How do I request bulk pricing?
  A: Email sales@powergearx.com or message on WhatsApp +86 18030005825.
