Buy New Bently Nevada 330910-00-12-10-02-00 Armored Vibration Probe | 120mm Case

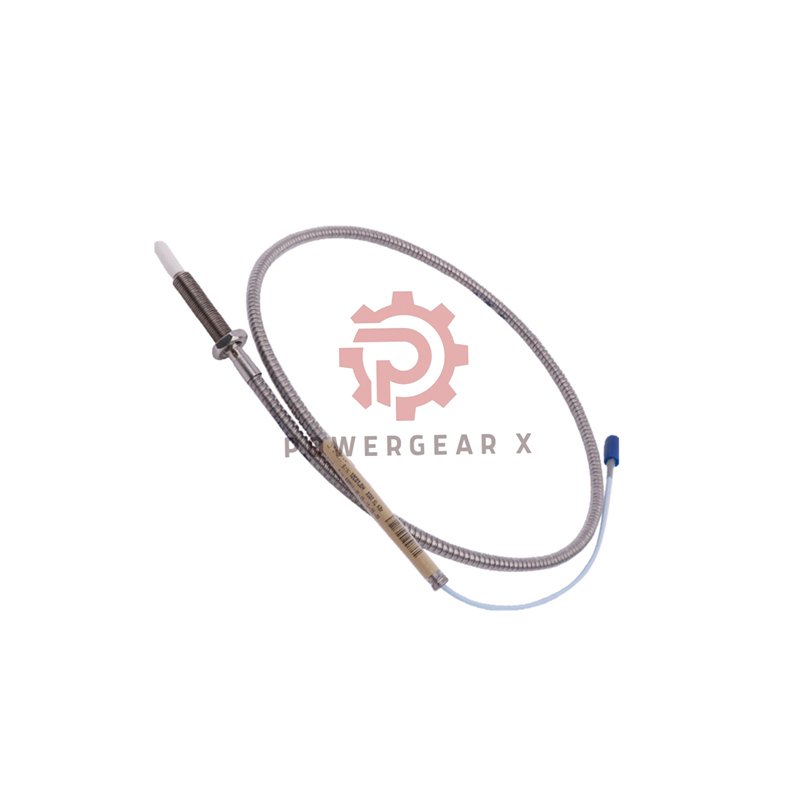

New Bently Nevada 330910-00-12-10-02-00 Proximity Probe

This is a brand new, factory-sealed industrial vibration sensor. It is part of the trusted 3300 NSv series. The probe features a protective stainless steel armor. It is ready for immediate shipment worldwide. Includes a full 12-month manufacturer warranty.

Key Features & Immediate Benefits

• Armored Durability: Stainless steel armor shields the cable from impact and abrasion.
• Standard Case Length: 120 mm case fits most common machine mounting points.
• Metric Thread Standard: M10 x 1.0 mm thread for global compatibility.
• Optimal Cable Length: 1.0 meter (39 in) integral cable for flexible routing.
• Superior Performance: Better side-view characteristics than older 3000 series 190 probes.

Complete Product Specifications

Product Identification & Ordering Code

• Manufacturer: Bently Nevada
• Full Model Number: 330910-00-12-10-02-00
• Product Line: 3300 NSv Proximity Probes
• Condition: New & Original in Factory Packing

Physical Configuration & Build

• Thread Type: M10 x 1.0 mm
• Armor: Yes (Stainless Steel)
• Unthreaded Length: 0 mm
• Case Length: 120 mm
• Total Cable Length: 1.0 meter
• Connector Type: Miniature Coaxial ClickLoc
• Cable Bend Radius: Minimum 25.4 mm (1.0 in)
• Case Material: AISI 304 Stainless Steel
• Tip Material: Polyphenylene Sulfide (PPS)

Electrical & Measurement Parameters

• Probe DC Resistance: 4.2 ± 0.5 Ohms (at 20°C)
• System Impedance: 75 Ohms coaxial
• Measurement Range: 1.5 mm (60 mils) linear range
• Recommended Gap: 1.0 mm (40 mils) from target surface
• Sensitivity (Scale Factor): 7.87 V/mm (200 mV/mil)
• Non-Linearity (DSL): Less than ±0.06 mm (±2.3 mils)
• Frequency Response: 0 to 10 kHz (±3 dB typical)

Environmental Ratings & Limits

• Operating Temperature: -52°C to +177°C (-62°F to +351°F)
• Storage Temperature: -52°C to +177°C
• Sealing: Viton O-Ring for pressure differential
• Mounting Torque: Hand tight only. Maximum 0.56 N•m (5 in-lb).
• Target Size: Minimum recommended flat target 13 mm (0.5 in) diameter
• Agency Approval: -00 (Not Required for this configuration)

Package Contents & Support

• One (1) genuine Bently Nevada 330910-00-12-10-02-00 proximity probe.
• All original factory documentation and packaging.
• 12-Month Original Factory Warranty included.
• Fast international shipping via FedEx, UPS, or DHL available.

Installation & Compatibility Notes

This 3300 NSv probe is a direct drop-in replacement for older 3300 RAM probes. No system recalibration is typically needed. For best results, set the gap to 1.0 mm (40 mils). Use proper shielded field wiring up to 305 meters.

Professional FAQs

Q: What is the main application for the 120mm case length?

A: The 120 mm case length is a common industry standard. It is suitable for most pumps, motors, and fans where the probe mounts directly to a bearing housing or adapter.

Q: Is there a performance difference between armored and non-armored versions of the same probe?

A: No. The armor is a mechanical protective sleeve over the cable. The internal electrical components, sensitivity, and performance specifications are identical to the non-armored version.

Q: The part number ends in “-00” for agency approval. What does this mean for my plant?

A> The -00 suffix means this specific probe configuration is not pre-certified for a particular hazardous area standard. It is for use in general industrial (non-hazardous) locations or as part of a larger system that carries the certification.

Q: Can I cut or shorten the 1.0-meter integral cable if my installation requires less length?

A> No. The cable is a sealed, integral part of the probe. Cutting it will damage the probe and void the warranty. For a shorter cable, you must order a probe with the correct cable length option (e.g., 0.5m).

Q: How do I ensure I get the correct probe and what is your shipping timeline?

A> Double-check your existing probe’s part number or thread size (M10). For confirmation, email us a photo. We ship most 330910-00-12-10-02-00 orders within 24 hours via DHL, FedEx, or UPS. Tracking is provided immediately.

Need help selecting the correct sensor or have a bulk requirement? Contact our technical sales team for expert guidance.
