Product Overview

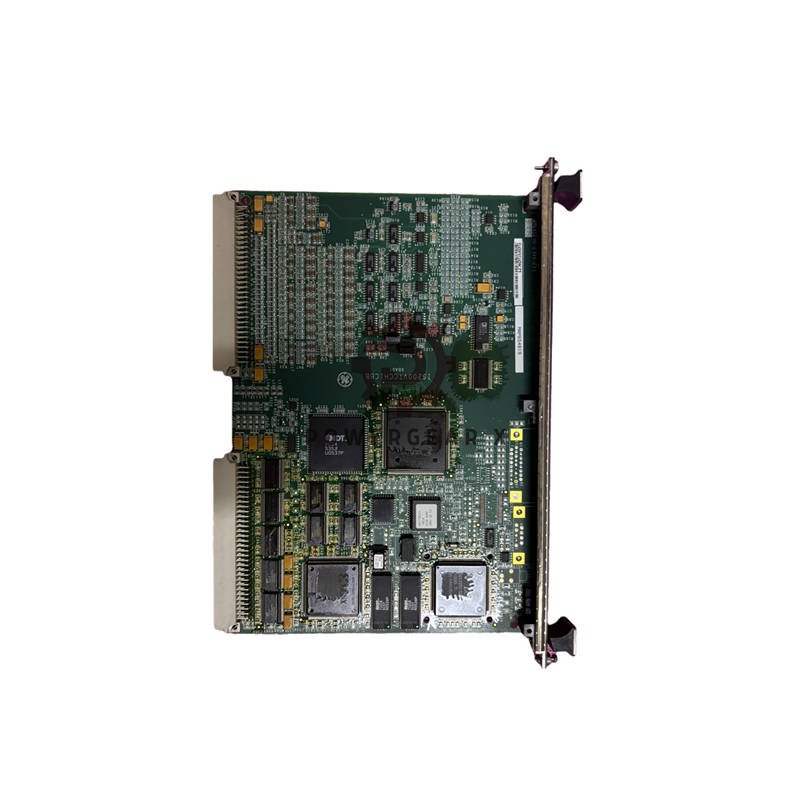

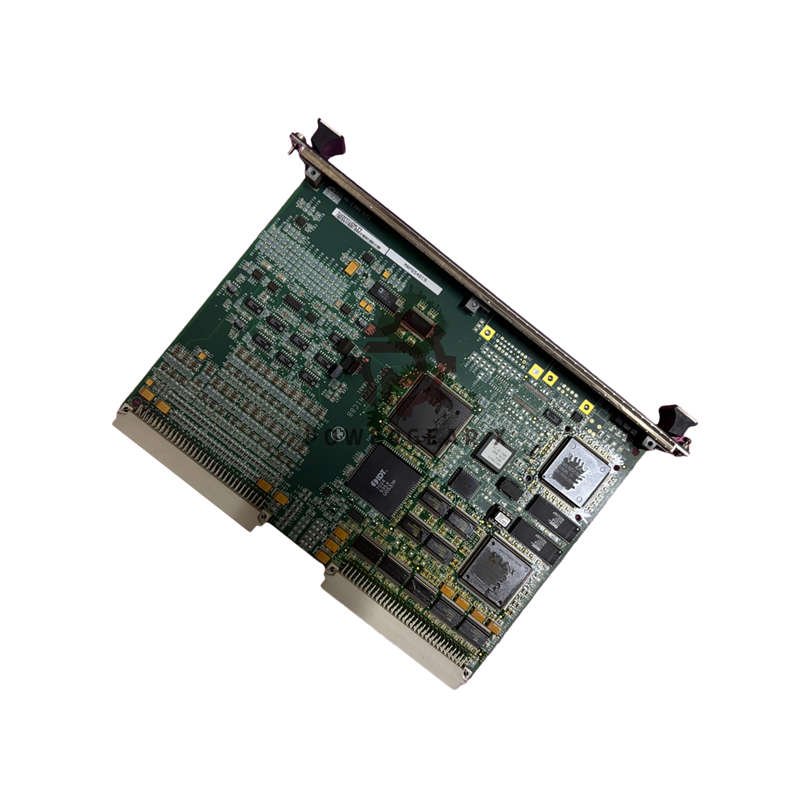

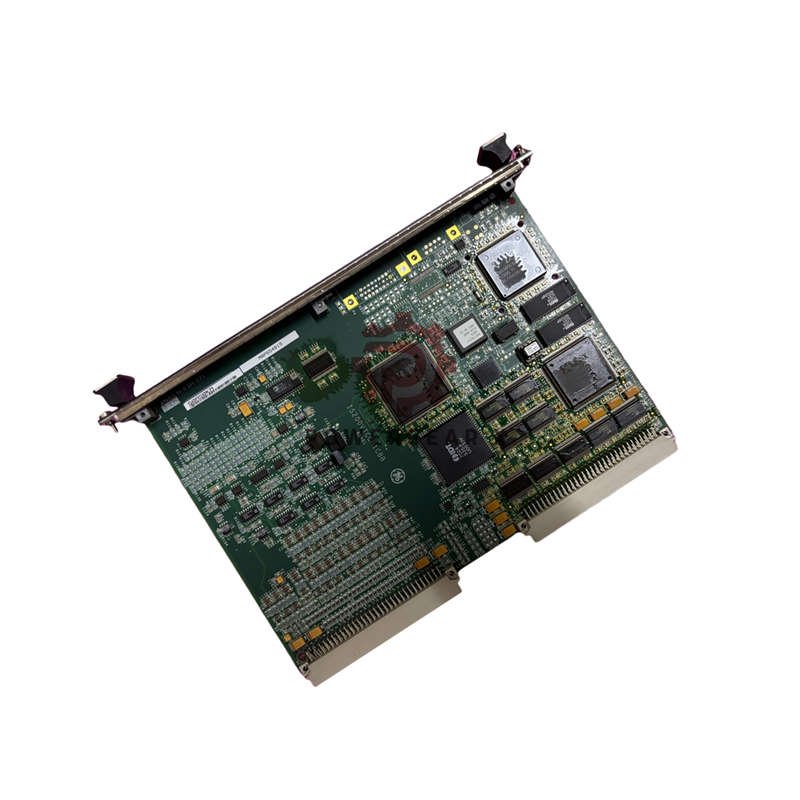

The IS200VTCCH1CBB is a GE Thermocouple Processor Board used in Mark VI control systems. It processes temperature data from up to 24 thermocouples. Designed for precision and reliability, it is built with surface-mount technology and features software-based signal linearization. Each input can be grounded or isolated, offering flexibility for complex industrial environments.
IS200VTCCH1CBB Thermocouple Processor Board | General Electric Mark VI
- Part Number: IS200VTCCH1CBB
- Manufacturer: General Electric (GE)
- Series: Mark VI Speedtronic Control System
- Function: Thermocouple Processor Board
- Thermocouple Types: E, J, K, S, T
- Channels: 12 Input Channels
- ADC Resolution: 16-bit
- Operating Temperature: -30°C to 65°C
- Voltage Span: -8 mV to +45 mV
- Common Mode Voltage: +5V
- Microprocessor: AMD-K6 300 MHz
- Country of Origin: United States
- Manual Reference: GEH-6421V
- Repair Time: 3-7 Days
- Warranty: 12 Months
- Shipping: FedEx | UPS | DHL
Key Highlights
- Accepts up to 24 thermocouple inputs via TBTC or DTTC boards.
- Software linearization for E, J, K, S, and T thermocouples.
- Supports grounded or ungrounded sensors up to 300 m away.
- High accuracy with dual cold junctions and built-in noise suppression.
- Self-calibration for voltage reference and zero points.
- Ideal for gas and steam turbine monitoring applications.
- High-speed AMD microprocessor ensures fast data processing.
Extended Technical Data
- Normal Mode Rejection: 250 mV
- Cold Junction Compensation: Dual-device average with auto fallback
- Input Cable Length: Up to 984 ft (300 m)
- Insulation Resistance: 10 MΩ minimum
- Analog Accuracy: ±0.2% of full scale
- Installation: Simple slide-in VME rack mounting
- Resolution: 12-bit output precision
Applications
- Gas turbine temperature monitoring
- Steam turbine control systems
- Industrial furnace and boiler systems
- High-precision temperature feedback loops
Warranty & Support
- ✅ Warranty: 12-Month Full Coverage
- ⚙️ Repair Time: 3-7 Business Days
- 🚚 Shipping Partners: FedEx, UPS, DHL
Contact Information
- Email: sales@powergearx.com
- WhatsApp: +86 18030005825
Compare Similar Models
Frequently Asked Questions (FAQ)
- What is the main function of IS200VTCCH1CBB?
- It processes thermocouple temperature inputs and converts them into digital data for turbine control.
- Which thermocouple types are supported?
- Supports E, J, K, S, and T types in both grounded and ungrounded configurations.
- Is IS200VTCCH1CBB compatible with TMR systems?
- Yes, it supports both simplex and triple modular redundant (TMR) configurations.
- How far can thermocouples be installed?
- Up to 300 meters (984 feet) from the control cabinet with proper shielding.
- Does it come with a warranty?
- Yes, a 12-month full warranty is included.
