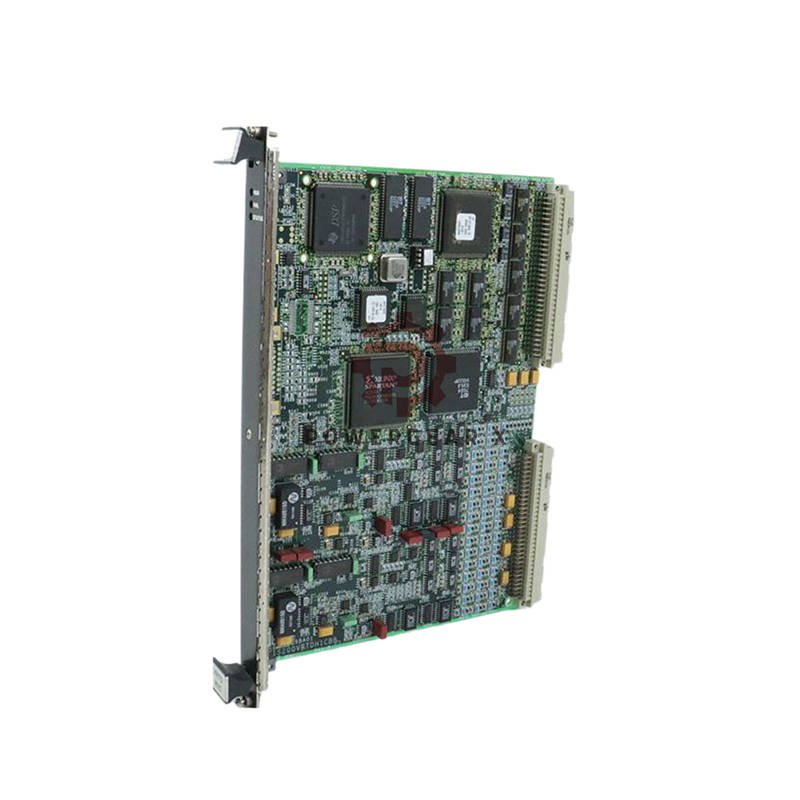

GE IS200VRTDH1DAB | Mark VI Resistance Temperature Device (RTD) Board
- Part No.: IS200VRTDH1DAB
- Manufacturer: General Electric (USA)
- Series: Mark VI
- Product Type: Resistance Temperature Device (RTD)
- Channels: 16
- Span: 0.3532 to 4.054 V
- Common Mode Voltage Range: 5 V
- Max Lead Resistance: 15 Ω
- Fast Scan Rate: 40 ms (25 Hz)
- Power Use: <12 W
- Condition: In Stock
- Warranty: 12 Months
- Shipping: FedEx | UPS | DHL
Developed by Powergear X Automation
The IS200VRTDH1DAB is a GE RTD processor board from the Mark VI system. It ensures accurate and fast temperature monitoring with 16 input channels, high-speed signal processing, and redundant fault-tolerant design. Ideal for heavy-duty industrial turbine control applications.
Core Performance
- RTD signal excitation and conversion handled by VRTD processor board
- Converts analog to digital for precise temperature control
- Communicates via VME backplane for rapid data transfer
- High-frequency decoupling for noise protection
- Redundant pacemakers to avoid signal loss
- Simultaneous reading with timing skew for data accuracy
Suffix Information (Tree Format)
- IS200 → Indicates standard GE assembly
- VRTD → Resistance Temperature Device processor board
- H1 → Normal conformal coating
- D → Group one Mark VI series hardware
- AB → Three revision updates for performance and compatibility
Hardware Details
- Over 200 integrated circuits and capacitors
- Double backplane connectors for stable data transmission
- RTD open/short detection with auto recheck every 20 seconds
- PCB with voltage protection and coated surface for durability
- Front faceplate attached by triple screws for VME rack fit
- Operating voltage: ±5V and ±15V DC internal system
- PCB Markings: 6BA01, 94V-0 for ID and traceability
Product Benefits
- High-speed RTD reading for precise temperature control
- Redundant design ensures data integrity and system uptime
- Compact layout with strong voltage protection
- Easy to install and maintain in Mark VI systems
- Excellent for gas and steam turbine management
Contact Information
📧 Email: sales@powergearx.com
📱 WhatsApp: +86 18030005825
Professional FAQs
- Q1: What is the function of the IS200VRTDH1DAB board?
- A: It reads RTD temperature signals, converts them to digital form, and sends data to the controller.
- Q2: How does it prevent data noise?
- A: High-frequency decoupling filters noise to keep readings accurate.
- Q3: What happens if one RTD channel fails?
- A: Faulty channels are bypassed and rechecked automatically every 20 seconds.
- Q4: Can this board handle redundancy?
- A: Yes, redundant pacemakers ensure continuous temperature signal flow without data loss.
- Q5: What type of coating does the board use?
- A: It has a conformal coating (H1 type) for protection against moisture and dust.
