Product details

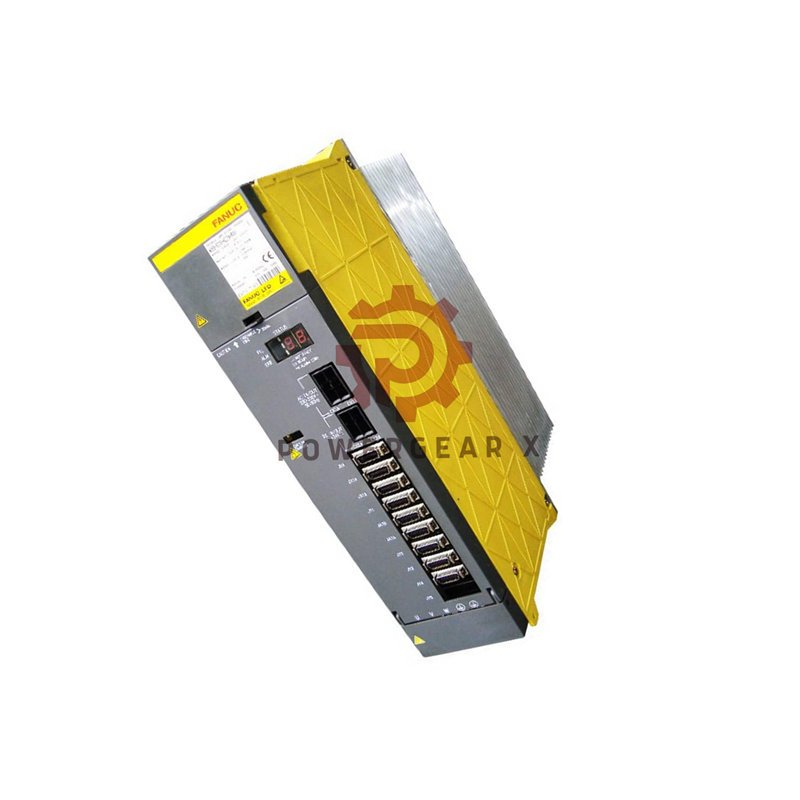

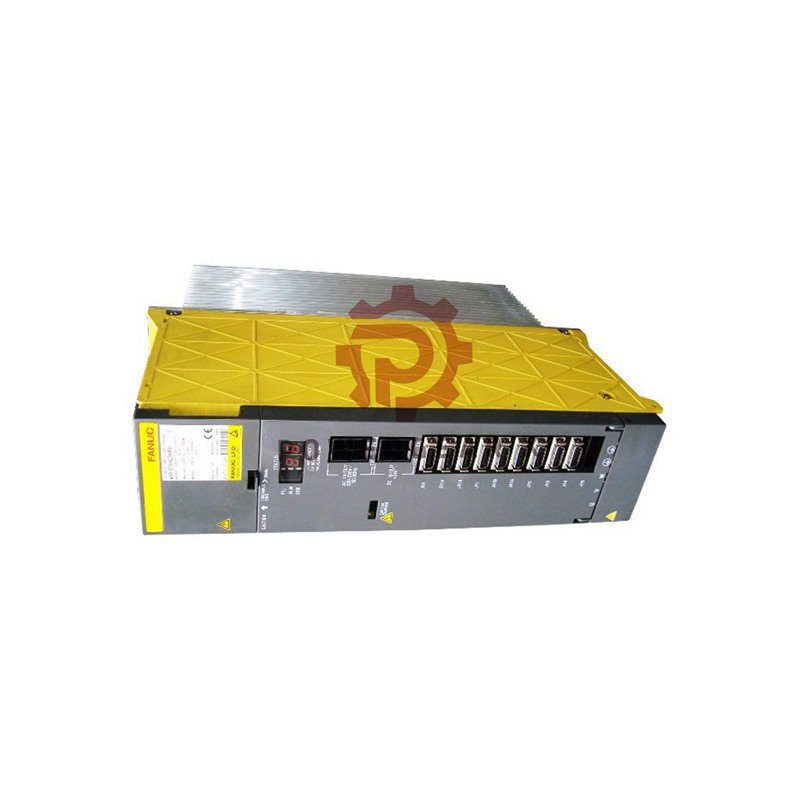

FANUC A06B-6079-H208 Dual-Axis Servo Drive
This FANUC servo amplifier powers your CNC machines. It is a dual-axis drive for smooth, reliable motion control. The unit runs on 230V and handles high currents. It fits perfectly into industrial automation systems.
Key Product Highlights
- Controls two motor axes from one compact unit.
- Wide current range for flexible machine design.
- Built-in protections keep your system safe.
- Air cooling ensures stable, long-term operation.
- Easy vertical or wall mounting saves panel space.
Complete Technical Specifications
- Manufacturer: FANUC
- Model Number: A06B-6079-H208
- Product Type: Servo Amplifier / Drive
- Authorized Supplier: Powergear X Automation
- Input Voltage: 200-230V AC, Single Phase
- Rated Current: 2A to 80A per axis
- Output Power: Up to 22kW peak
- Control Signal: PWM Interface
- Communication: FANUC Serial Bus
- Axis Configuration: Dual Axis
- Cooling Method: Forced Air Cooling
- Mounting Style: Vertical / Wall Mount
- Operating Frequency: 50Hz / 60Hz
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Storage Temperature: -20°C to 70°C
- Humidity Range: 0% to 90% (non-condensing)
- Protection Features: Overload, Overcurrent, Overvoltage, Overtemperature
- Vibration Resistance: 0.5G @ 10-57Hz
- Dimensions (Approx.): 300mm x 150mm x 70mm
- Weight: 15 lbs (6.8 kg)
- Connector Type: High-Current Screw Terminals
- Status Indication: LED Display for Errors and Status
- Certifications: CE, cULus
Why Choose This Drive?
- Proven Reliability: FANUC quality ensures minimal downtime.
- High Power Density: Manages two axes in one compact unit.
- Easy Integration: Designed for FANUC CNC systems.
- Robust Protection: Multiple safeguards protect your investment.
- Global Support: Widely used with available technical resources.
Warranty & Fast Delivery
We provide a full 12-month warranty on this unit. Orders ship fast worldwide via FedEx, UPS, or DHL. You will receive tracking details immediately.
Expert Questions & Answers
What machines use the A06B-6079-H208 drive?
It is commonly used in FANUC CNC milling centers, lathes, and machining centers.
Can I use this drive to replace an older model?
Please check your machine’s electrical diagram. This drive is often a direct replacement for similar H200-series amplifiers.
What is the most critical step during installation?
Ensure the input voltage matches exactly and that all connections are tight. Loose power terminals are a common cause of failure.
How do I know if the drive is faulty?
The drive will display an error code on its LED panel. Refer to the FANUC maintenance manual for the specific alarm number.
From experience, what causes overheating alarms?
Blocked air vents or a failing cooling fan are typical causes. Always keep the heatsink and fan clean from dust and chips.
Is parameter setup difficult?
Parameters are usually loaded from the CNC. For a replacement, you may need to copy settings from the old drive or the system backup.
Can it run a single motor if needed?
Yes, one axis channel can be used independently. Ensure the parameter settings are correct for single-axis operation.
What maintenance does it require?
Regularly inspect and clean the air intake filter. Check for loose cables every six months in high-vibration environments.
