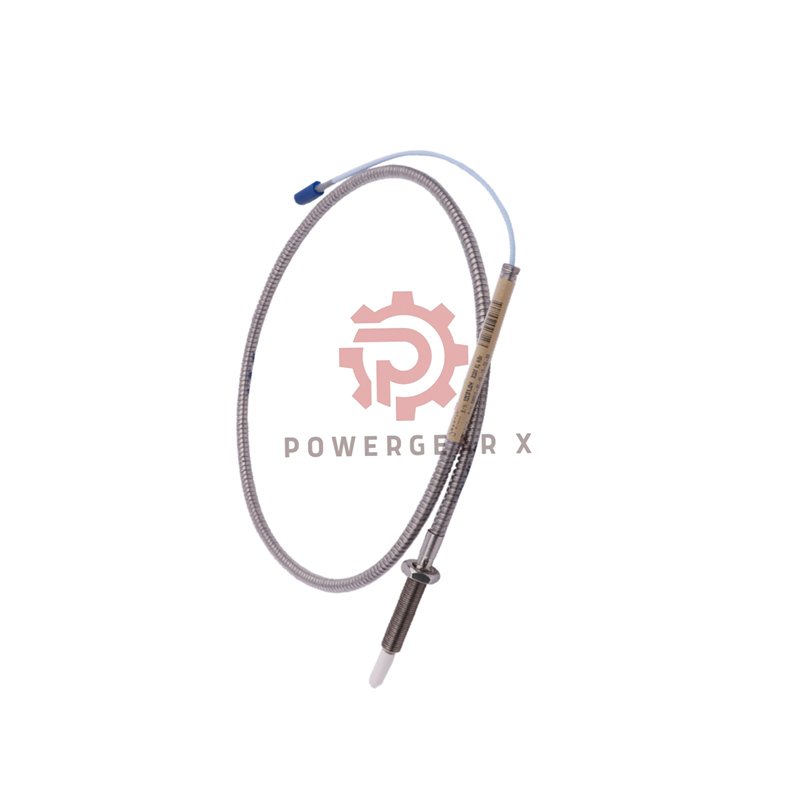

Ready to Ship: New Bently Nevada 330910-00-10-50-02-00
This is a brand new, factory-sealed vibration probe. It is designed for reliable machine protection. It features a protective stainless steel armor over the cable. This model has a long 5.0-meter integrated cable. It is ready for immediate installation.
At a Glance: Why Choose This Probe?
- Fully Armored: Steel armor protects the cable from physical damage in tough plants.
- Long Reach: 5.0 meters (16.4 ft) of cable allows flexible sensor placement.
- Metric Thread: M10 x 1.0 mm thread is common for international machinery.
- Chemically Resistant: Advanced PPS tip material stands up to harsh process gases.
- Plug & Play: Direct replacement for older 3300 RAM probes. No system changes needed.
Detailed Product Specifications
Core Identity & Electrical Data
- Manufacturer: Bently Nevada
- Full Part Number: 330910-00-10-50-02-00
- Series: 3300 NSv Proximity Probe
- Probe DC Resistance: 5.3 ± 0.7 Ohms (for 5m length)
- Cable Type: 75-ohm coaxial with FEP insulation
Physical & Mechanical Details
- Case Thread: M10 x 1.0 mm
- Case Length: 100 mm (from mounting nut to cable exit)
- Unthreaded Length: 0 mm
- Cable Length: 5.0 meters (16.4 feet) total
- Connector: Miniature Coaxial ClickLoc
- Armor: Yes, Stainless Steel
- Minimum Bend Radius: 25.4 mm (1.0 inch)
Performance & Measurement Data
- Linear Range: 1.5 mm (60 mils)
- Recommended Gap: 1.0 mm (40 mils) from target
- Scale Factor (Sensitivity): 7.87 V/mm (200 mV/mil)
- Linearity Error: Better than ±0.06 mm (±2.3 mils)
- Frequency Response: 0 to 10 kHz (±3 dB)
- Target Size: Min. 13 mm (0.5 in) diameter recommended
Environmental & Durability Ratings
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Case Material: AISI 304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS) for chemical resistance
- Seal: Viton O-ring for pressure differential
- Mounting Torque: Finger tight only. Max 0.56 N•m (5 in•lb).
What You Will Receive
- One (1) original Bently Nevada 330910-00-10-50-02-00 proximity probe.
- The probe is in its original factory packaging.
- Full 12-month manufacturer warranty against defects.
Expert Installation & Selection Advice
Quick Installation Tip: Ensure the M10x1 threads are clean. Hand-tighten the mounting nut first. Use the correct gap setting tool. A precise 1.0 mm gap ensures optimal signal output.
Choosing the Right Model: Select this 330910 model if you need a metric M10 thread, a long 5-meter cable, and the extra protection of cable armor. It is perfect for new installations or as an upgrade.
Professional FAQs
Q: Does the stainless steel armor affect the probe’s flexibility or performance?
A: No. The armor protects against crushing and abrasion. The internal cable and electrical specs are identical to unarmored versions. The minimum bend radius remains 1 inch.
Q: What is the actual total length from the probe tip to the connector?
A: The total functional length is approximately 5.1 meters. This includes the 100mm case and the 5.0 meter cable. This provides ample reach for most junction box connections.
Q: Can this probe be used in hazardous area locations?
A: The agency approval code for this part is -00 (Not Required). For certified use in hazardous areas, you must check the specific system configuration (probe, cable, proximitor) certifications. Please contact us with your area classification requirements.
Q: How does the 5-meter cable length impact signal quality compared to shorter probes?
A: The longer cable adds slight resistance and capacitance. The system is designed for this. For optimal high-frequency response above 5 kHz with very long field wiring runs, consult the manual’s frequency roll-off charts.
Q: What is your shipping and support policy for this item?
A: We ship globally via FedEx, UPS, or DHL. Tracking is provided. Your order includes our full support. For technical questions or bulk orders, contact our team directly.
Need a different thread type or cable length? We can help. Reach out for a quick quote or technical advice.
